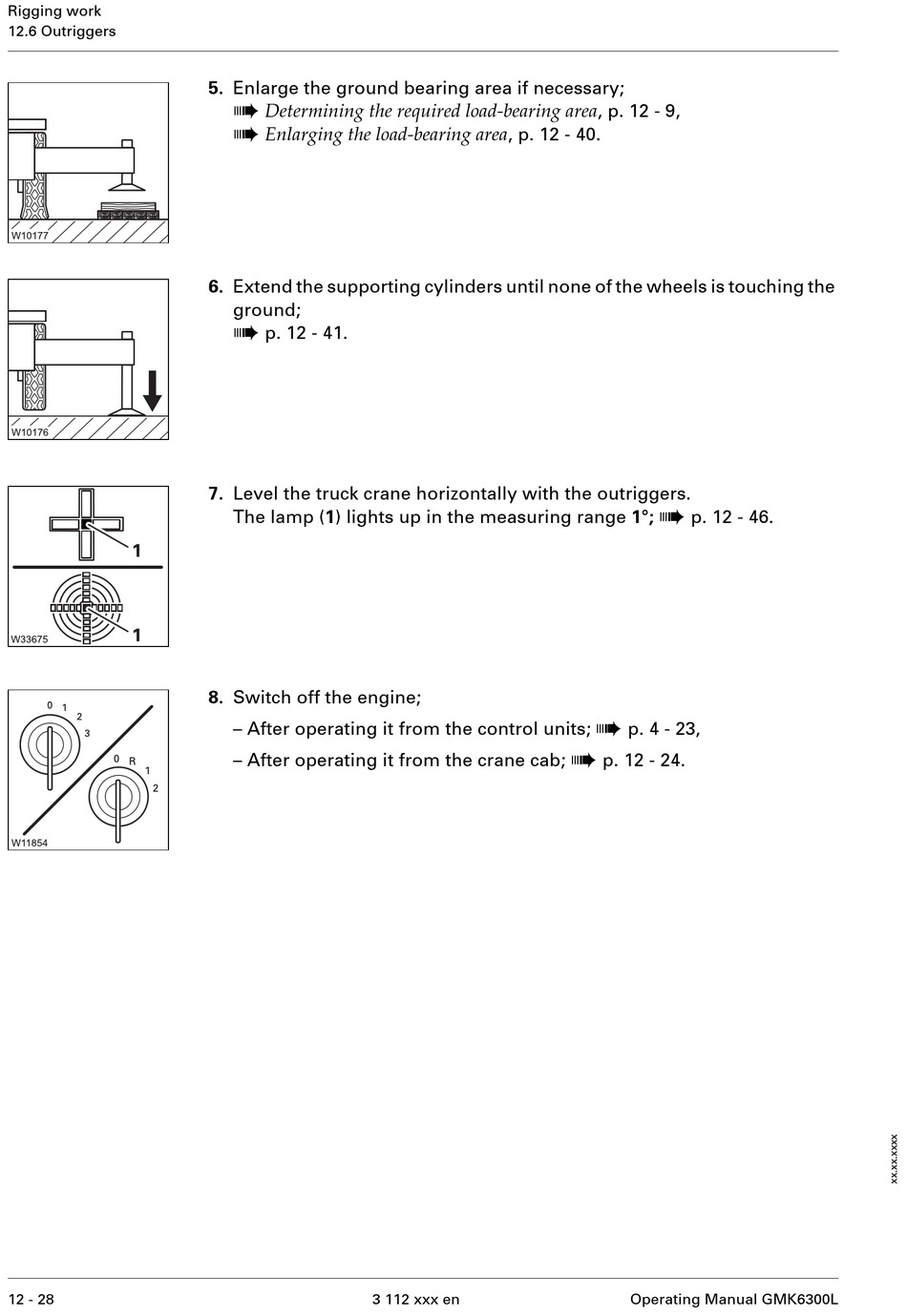

Rigging work
12.6 Outriggers
12 - 28
5. Enlarge the ground bearing area if necessary;
à
Determining the required load-bearing area , p. 12 - 9,
à
Enlarging the load-bearing area , p. 12 - 40.
6. Extend the supporting cylinders until none of the wheels is touching the
ground;
à
p. 12 - 41.
7. Level the truck crane horizontally with the outriggers.
The lamp (1) lights up in the measuring range 1°;
8. Switch off the engine;
– After operating it from the control units;
– After operating it from the crane cab;
3 112 xxx en
à
p. 12 - 46.
à
p. 4 - 23,
à
p. 12 - 24.
