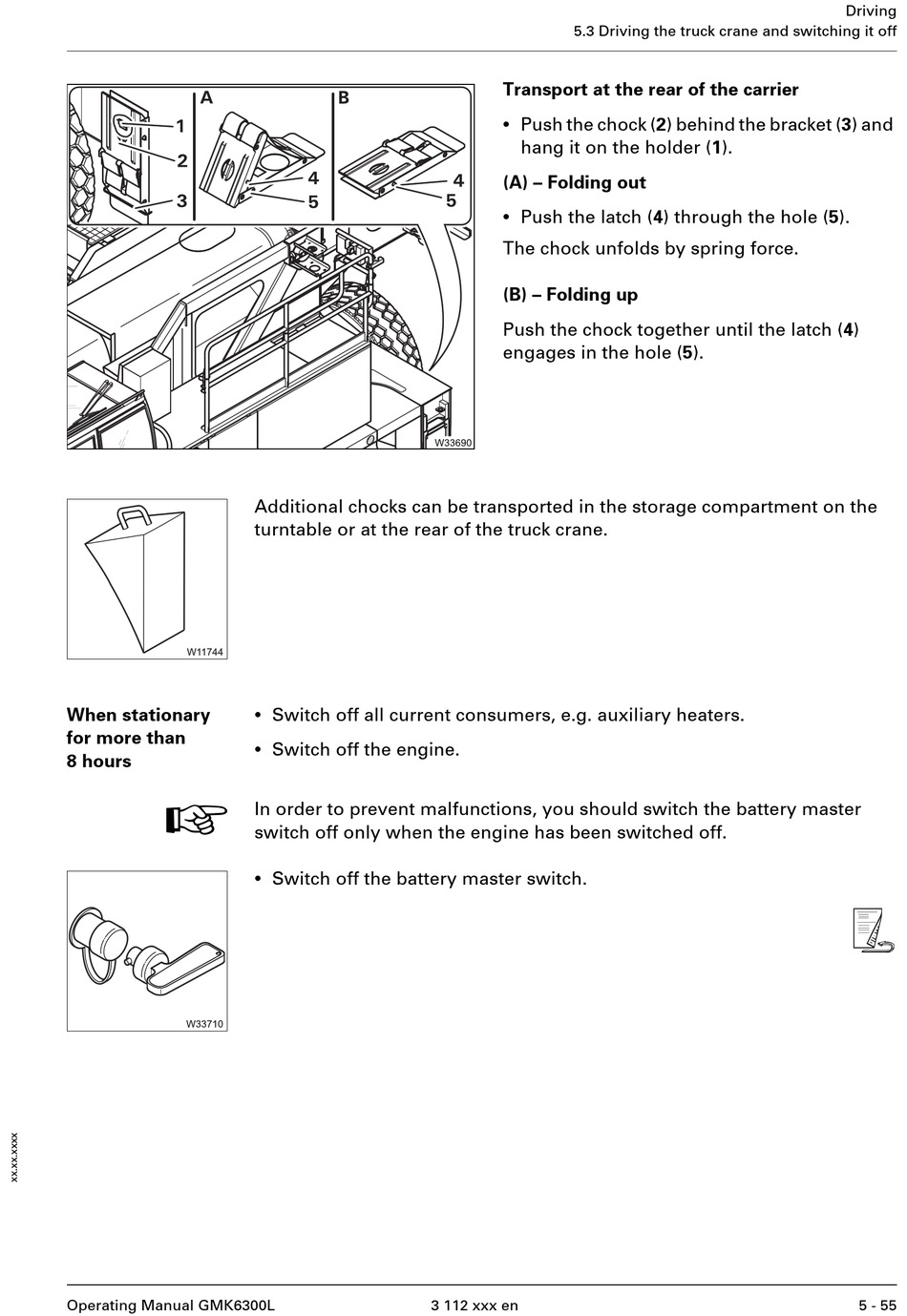

Manitowoc Grove GMK6300L Operating Manual page 233

When stationary
for more than
8 hours
H
Operating Manual GMK6300L
Additional chocks can be transported in the storage compartment on the
turntable or at the rear of the truck crane.
•
Switch off all current consumers, e.g. auxiliary heaters.
•
Switch off the engine.
In order to prevent malfunctions, you should switch the battery master
switch off only when the engine has been switched off.
•
Switch off the battery master switch.
5.3 Driving the truck crane and switching it off
Transport at the rear of the carrier
•
Push the chock (2) behind the bracket (3) and
hang it on the holder (1).
(A) – Folding out
•
Push the latch (4) through the hole (5).
The chock unfolds by spring force.
(B) – Folding up
Push the chock together until the latch (4)
engages in the hole (5).
3 112 xxx en
Driving
s
5 - 55
