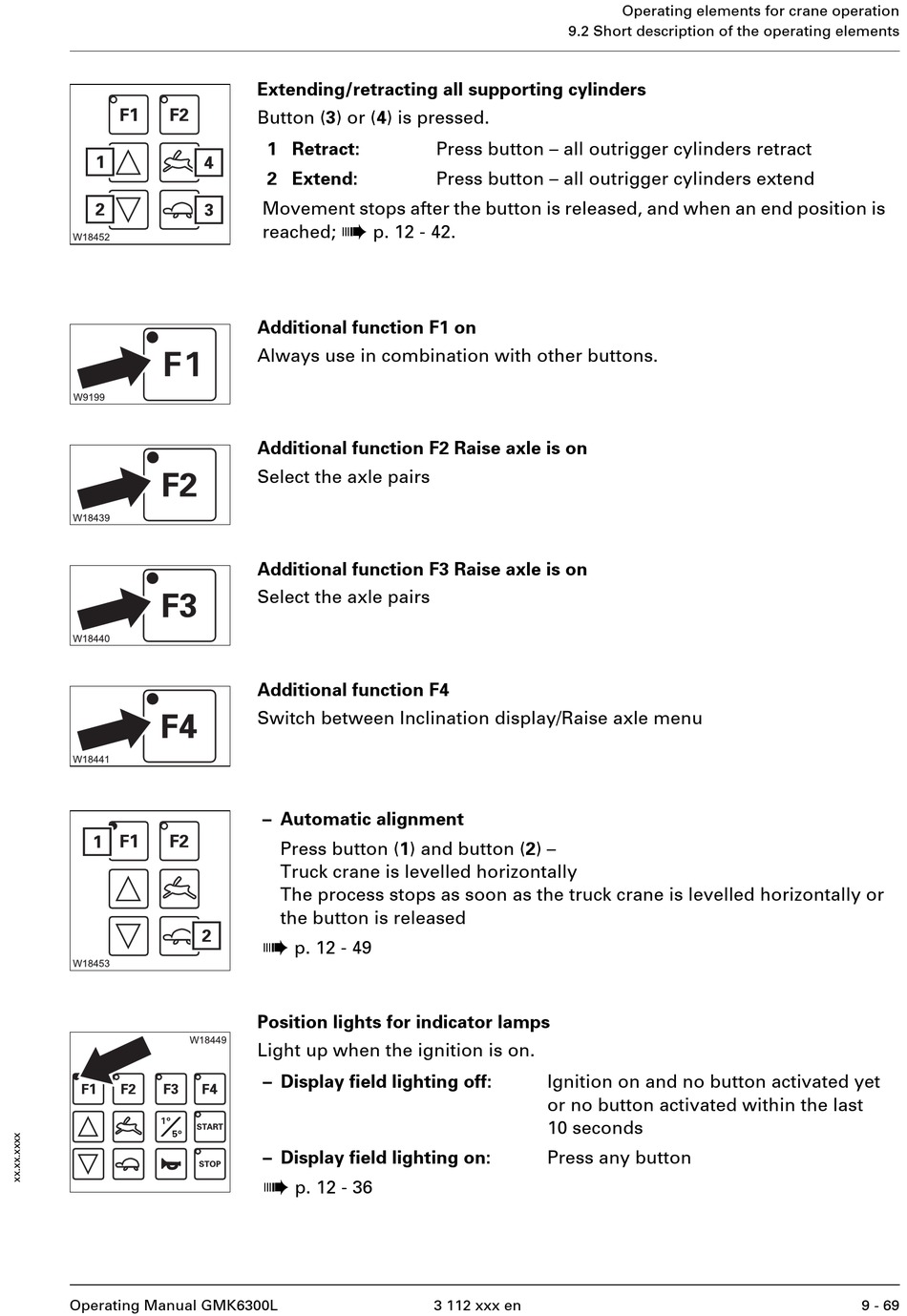

Extending/retracting all supporting cylinders
Button (3) or (4) is pressed.
1 Retract:
2 Extend:
Movement stops after the button is released, and when an end position is
à
reached; p. 12 - 42.
Additional function F1 on
Always use in combination with other buttons.
Additional function F2 Raise axle is on
Select the axle pairs
Additional function F3 Raise axle is on
Select the axle pairs
Additional function F4
Switch between Inclination display/Raise axle menu
– Automatic alignment
Press button (1) and button (2) –
Truck crane is levelled horizontally
The process stops as soon as the truck crane is levelled horizontally or
the button is released
à
p. 12 - 49
Position lights for indicator lamps
Light up when the ignition is on.
– Display field lighting off:
– Display field lighting on:
à
p. 12 - 36
9.2 Short description of the operating elements
Press button – all outrigger cylinders retract
Press button – all outrigger cylinders extend
Ignition on and no button activated yet
or no button activated within the last
10 seconds
Press any button
