Operating elements for crane operation
9.2 Short description of the operating elements

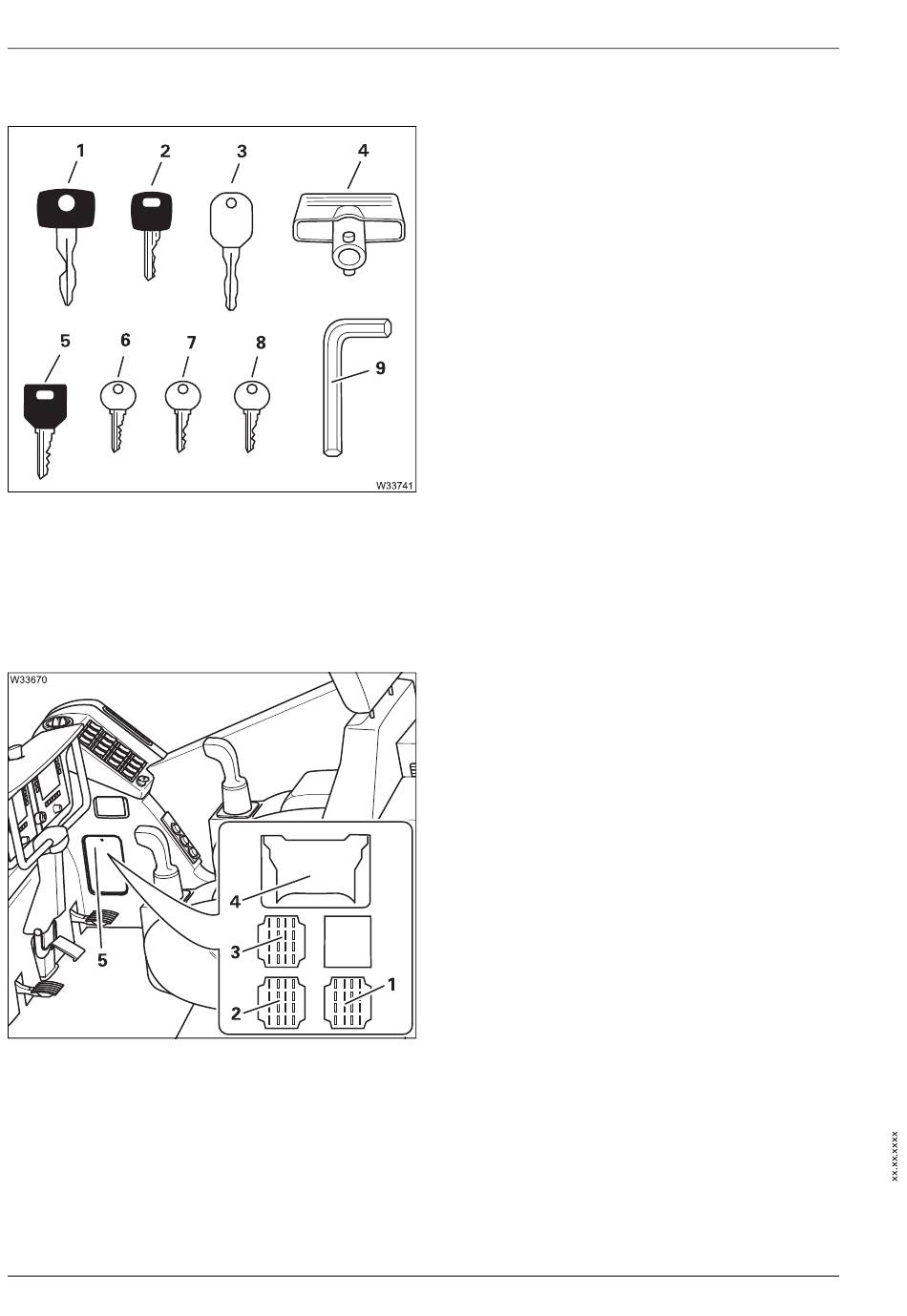

Keys
9.2.25
9 - 120
Different keys are supplied.

Diagnostics

The diagnostics connections may only be operated by the service personnel.
1 Crane cab door lock
2 Crane cab ignition lock
3 Urea tank
4 Distribution box
5 Key-operated override switch
6 Fuel tank
7 Boom floating position lock
8 Slewing gear freewheel lock
9 Covers, storage box
1)
Additional equipment
The following connections are below the
cover (5) .
1 ECOS diagnostics –
(serial interface)
2 ECOS diagnostics – CAN bus
3 RCL diagnostics
4 Engine diagnostics
3 112 xxx en
1)
1)
1)
1)
Operating Manual GMK6300L
