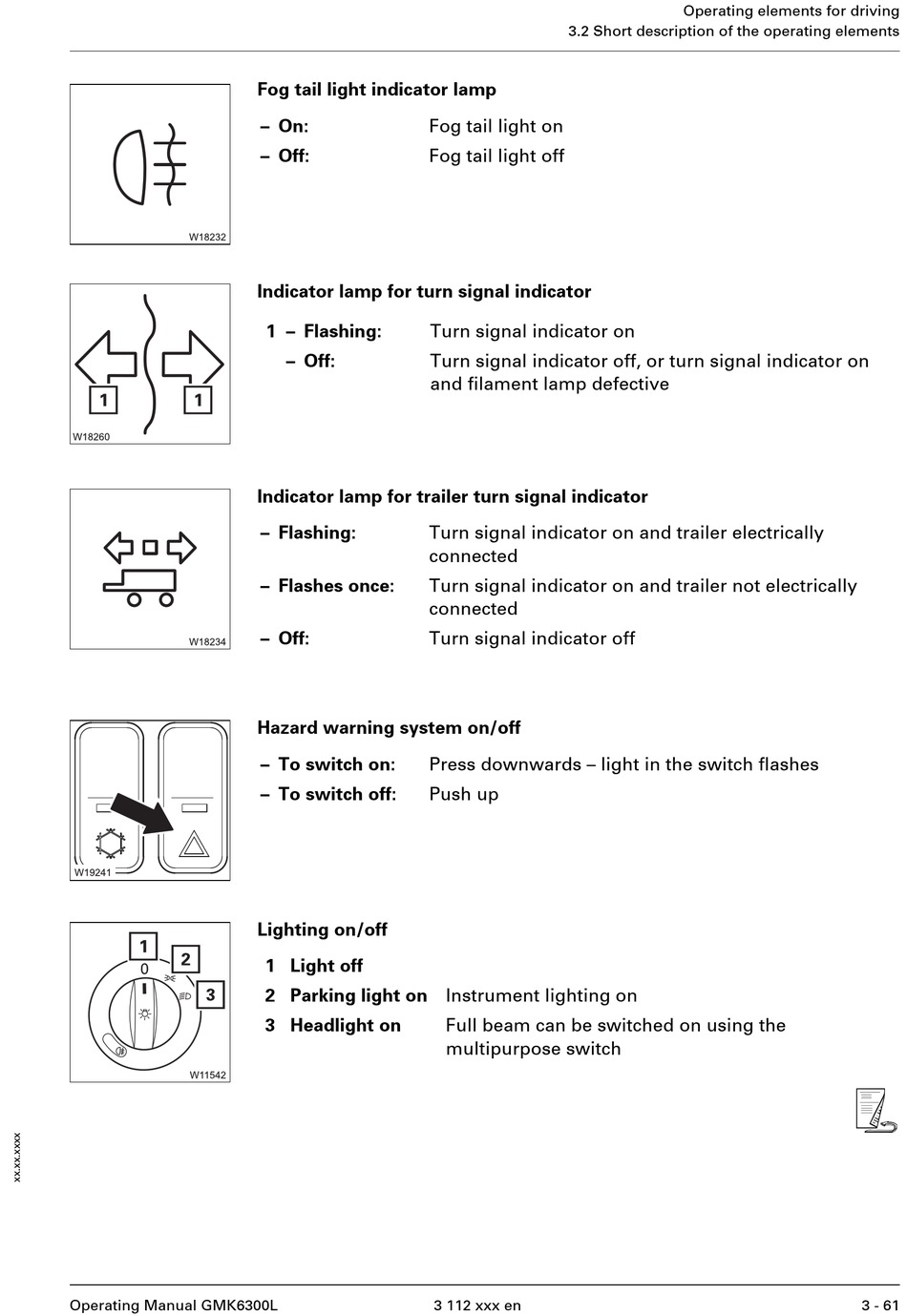

Operating Manual GMK6300L
Fog tail light indicator lamp
– On:
– Off:
Indicator lamp for turn signal indicator
1 – Flashing:
– Off:
Indicator lamp for trailer turn signal indicator
– Flashing:
– Flashes once:
– Off:
Hazard warning system on/off
– To switch on:
– To switch off:
Lighting on/off
1 Light off
2 Parking light on Instrument lighting on
3 Headlight on
3.2 Short description of the operating elements
Fog tail light on
Fog tail light off
Turn signal indicator on
Turn signal indicator off, or turn signal indicator on
and filament lamp defective
Turn signal indicator on and trailer electrically
connected
Turn signal indicator on and trailer not electrically
connected
Turn signal indicator off
Press downwards – light in the switch flashes
Push up
Full beam can be switched on using the
multipurpose switch
3 112 xxx en
Operating elements for driving
s
3 - 61
