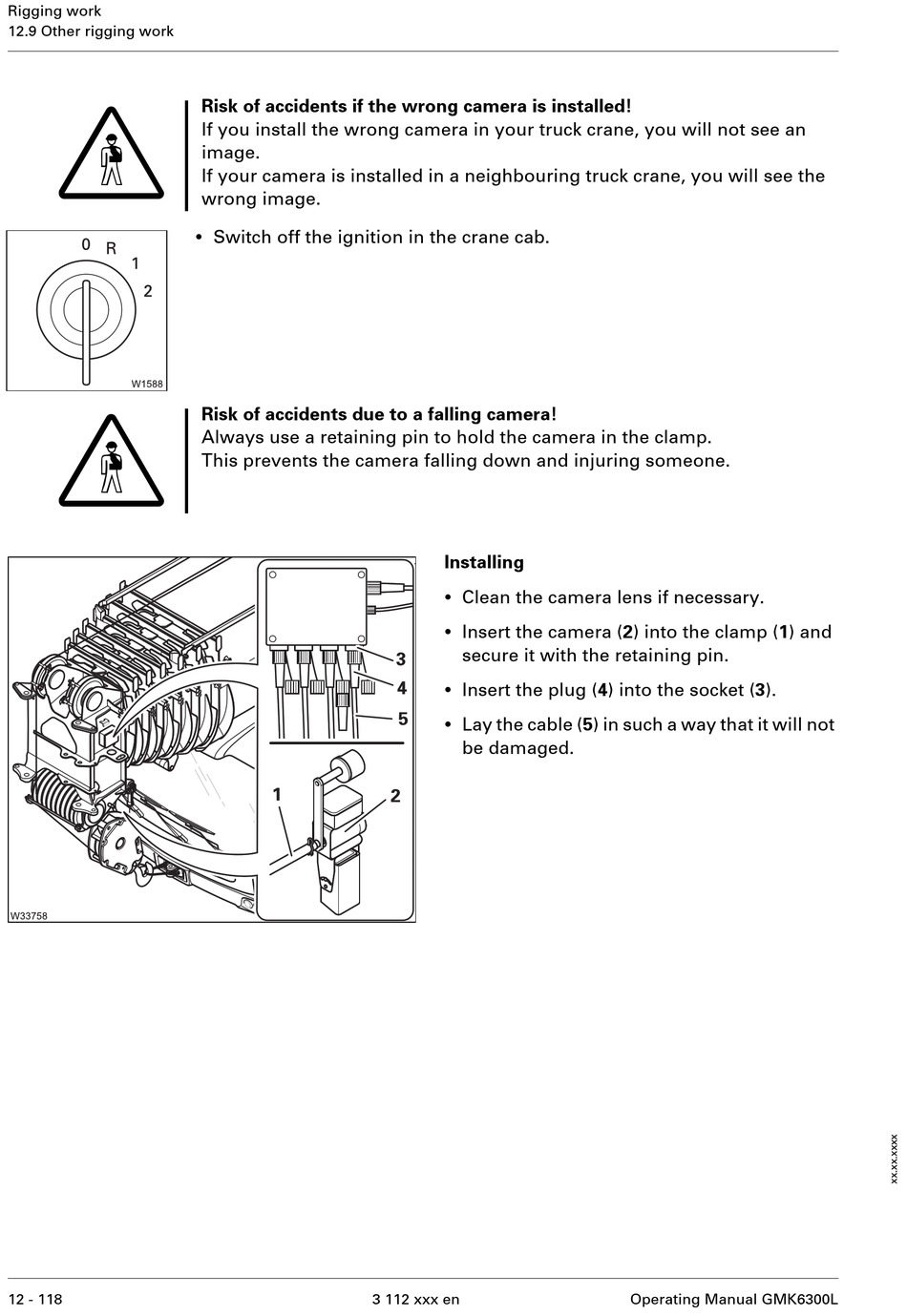

Rigging work
12.9 Other rigging work
G
G
12 - 118
Risk of accidents if the wrong camera is installed!
If you install the wrong camera in your truck crane, you will not see an
image.
If your camera is installed in a neighbouring truck crane, you will see the
wrong image.
•
Switch off the ignition in the crane cab.
Risk of accidents due to a falling camera!
Always use a retaining pin to hold the camera in the clamp.
This prevents the camera falling down and injuring someone.
Installing
•
Clean the camera lens if necessary.
•
Insert the camera (2) into the clamp (1) and
secure it with the retaining pin.
•
Insert the plug (4) into the socket (3).
•
Lay the cable (5) in such a way that it will not
be damaged.
