Crane operation
11.2 Operation of the rated capacity limiter
G
11 - 30

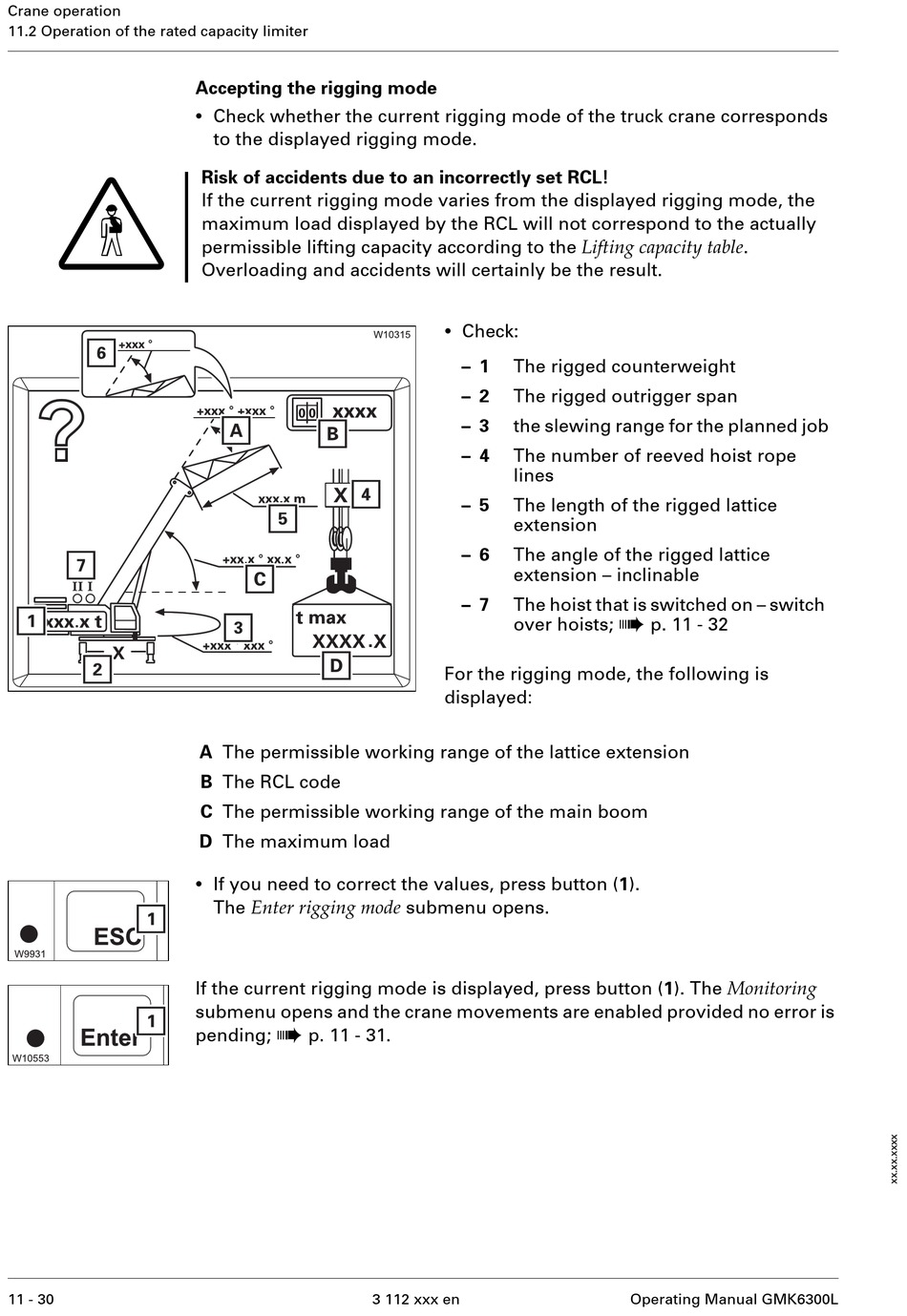

Accepting the rigging mode
•
Check whether the current rigging mode of the truck crane corresponds
to the displayed rigging mode.
Risk of accidents due to an incorrectly set RCL!
If the current rigging mode varies from the displayed rigging mode, the
maximum load displayed by the RCL will not correspond to the actually
permissible lifting capacity according to the Lifting capacity table .
Overloading and accidents will certainly be the result.
A The permissible working range of the lattice extension
B The RCL code
C The permissible working range of the main boom
D The maximum load
•
If you need to correct the values, press button (1).
The Enter rigging mode submenu opens.
If the current rigging mode is displayed, press button (1). The Monitoring
submenu opens and the crane movements are enabled provided no error is
à
pending; p. 11 - 31.
•
Check:
– 1 The rigged counterweight
– 2 The rigged outrigger span
– 3 the slewing range for the planned job
– 4 The number of reeved hoist rope
lines
– 5 The length of the rigged lattice
extension
– 6 The angle of the rigged lattice
extension – inclinable
– 7 The hoist that is switched on – switch
over hoists;
For the rigging mode, the following is
displayed :
3 112 xxx en
à
p. 11 - 32
