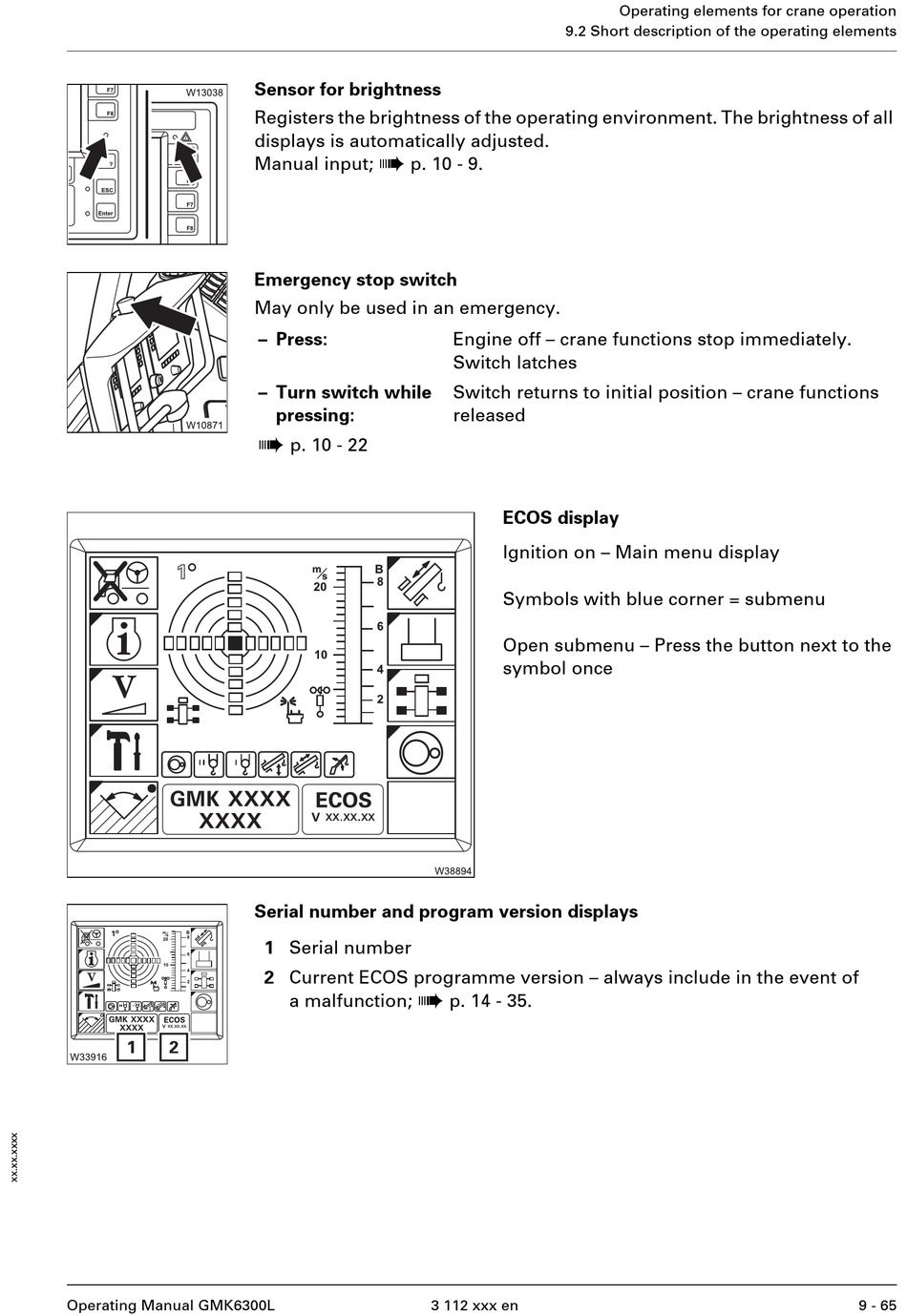

Manitowoc Grove GMK6300L Operating Manual page 529

Operating Manual GMK6300L
Sensor for brightness
Registers the brightness of the operating environment. The brightness of all
displays is automatically adjusted.
à
Manual input; p. 10 - 9.
Emergency stop switch
May only be used in an emergency.
– Press:
– Turn switch while
pressing:
à
p. 10 - 22
Serial number and program version displays
1 Serial number
2 Current ECOS programme version – always include in the event of
à
a malfunction;
9.2 Short description of the operating elements
Engine off – crane functions stop immediately.
Switch latches
Switch returns to initial position – crane functions
released
ECOS display
Ignition on – Main menu display
Symbols with blue corner = submenu
Open submenu – Press the button next to the
symbol once
p. 14 - 35.
3 112 xxx en
Operating elements for crane operation
9 - 65
