Operating elements for crane operation
9.2 Short description of the operating elements
9.2.8
9 - 70

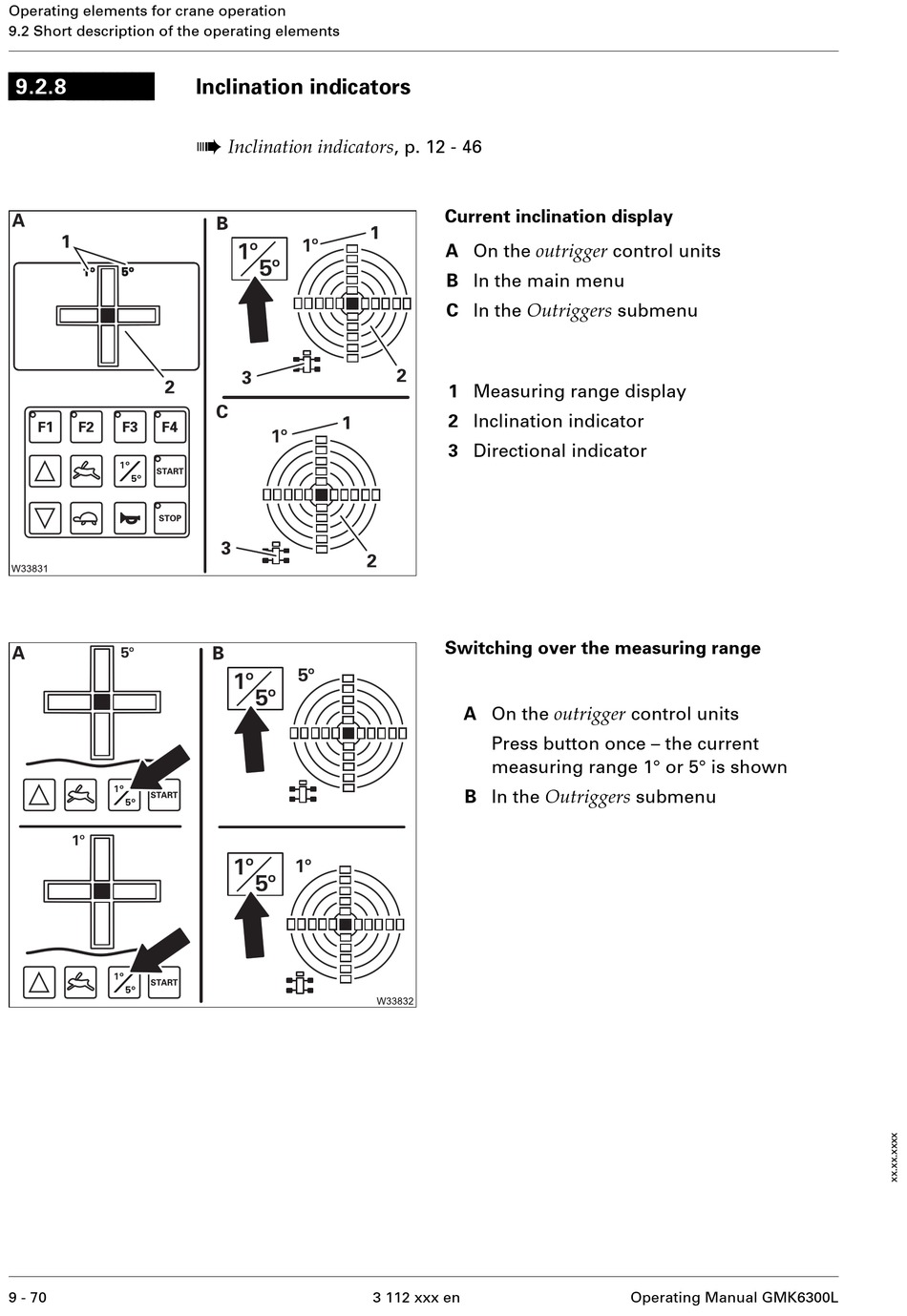

Inclination indicators
à
Inclination indicators , p. 12 - 46
C
Current inclination display
A On the outrigger control units
B In the main menu
C In the Outriggers submenu
1 Measuring range display
2 Inclination indicator
3 Directional indicator
Switching over the measuring range
A On the outrigger control units
Press button once – the current
measuring range 1° or 5° is shown
B In the Outriggers submenu
3 112 xxx en
Operating Manual GMK6300L
