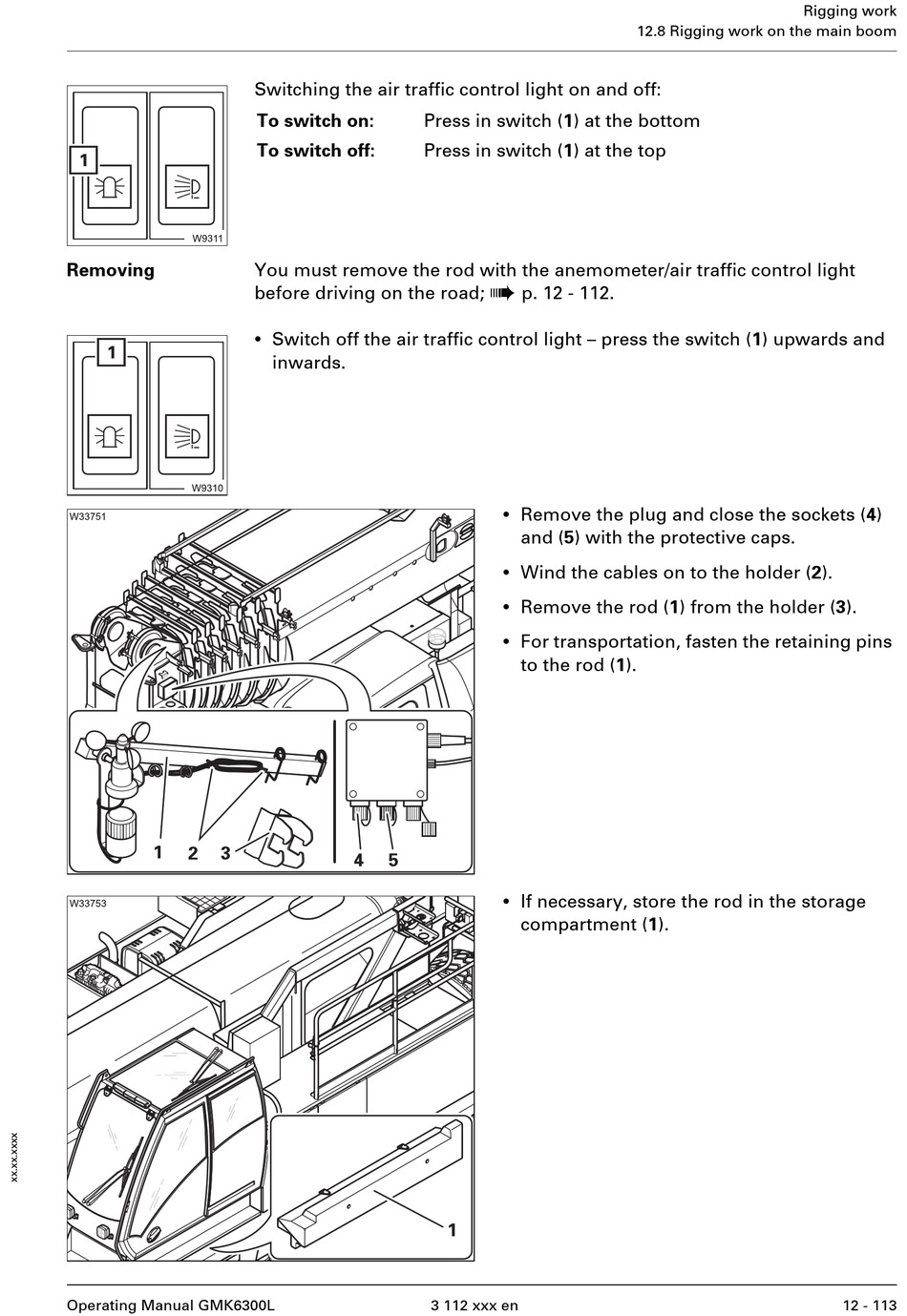

Manitowoc Grove GMK6300L Operating Manual page 871

Removing
Operating Manual GMK6300L
Switching the air traffic control light on and off:
To switch on: Press in switch (1) at the bottom
To switch off: Press in switch (1) at the top
You must remove the rod with the anemometer/air traffic control light
before driving on the road;
•
Switch off the air traffic control light – press the switch (1) upwards and
inwards.
à
p. 12 - 112.
•
Remove the plug and close the sockets (4)
and (5) with the protective caps.
•
Wind the cables on to the holder (2).
•
Remove the rod (1) from the holder (3).
•
For transportation, fasten the retaining pins
to the rod (1).
•
If necessary, store the rod in the storage
compartment (1).
3 112 xxx en
Rigging work
12.8 Rigging work on the main boom
12 - 113
