Operating elements for crane operation
9.1 Overview of the operating elements
9.1.9
Counterweight
submenu
9 - 24

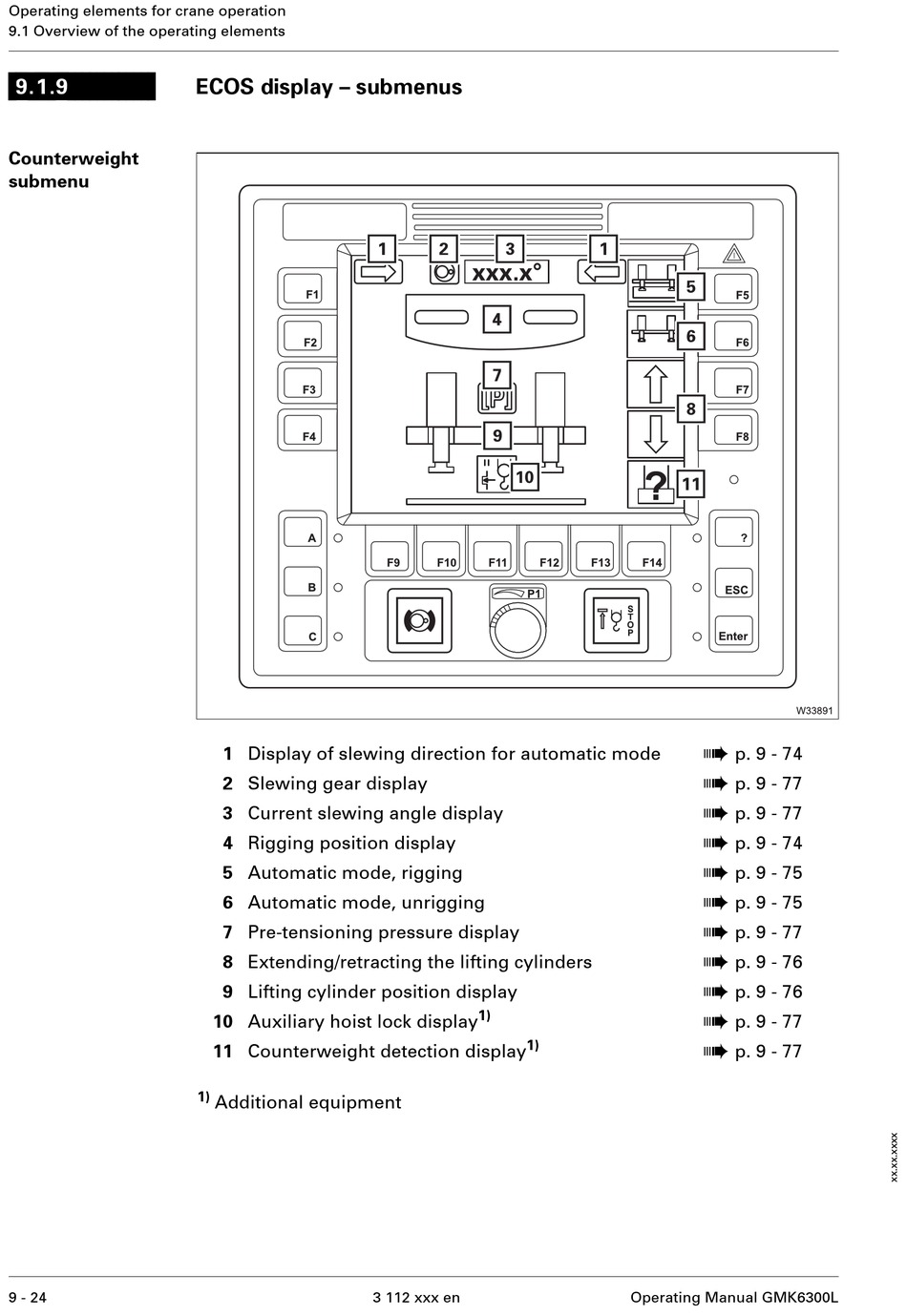

ECOS display – submenus
1 Display of slewing direction for automatic mode
2 Slewing gear display
3 Current slewing angle display
4 Rigging position display
5 Automatic mode, rigging
6 Automatic mode, unrigging
7 Pre-tensioning pressure display
8 Extending/retracting the lifting cylinders
9 Lifting cylinder position display
10 Auxiliary hoist lock display
11 Counterweight detection display
1)
Additional equipment
1)
1)
3 112 xxx en
à
p. 9 - 74
à
p. 9 - 77
à
p. 9 - 77
à
p. 9 - 74
à
p. 9 - 75
à
p. 9 - 75
à
p. 9 - 77
à
p. 9 - 76
à
p. 9 - 76
à
p. 9 - 77
à
p. 9 - 77
Operating Manual GMK6300L
