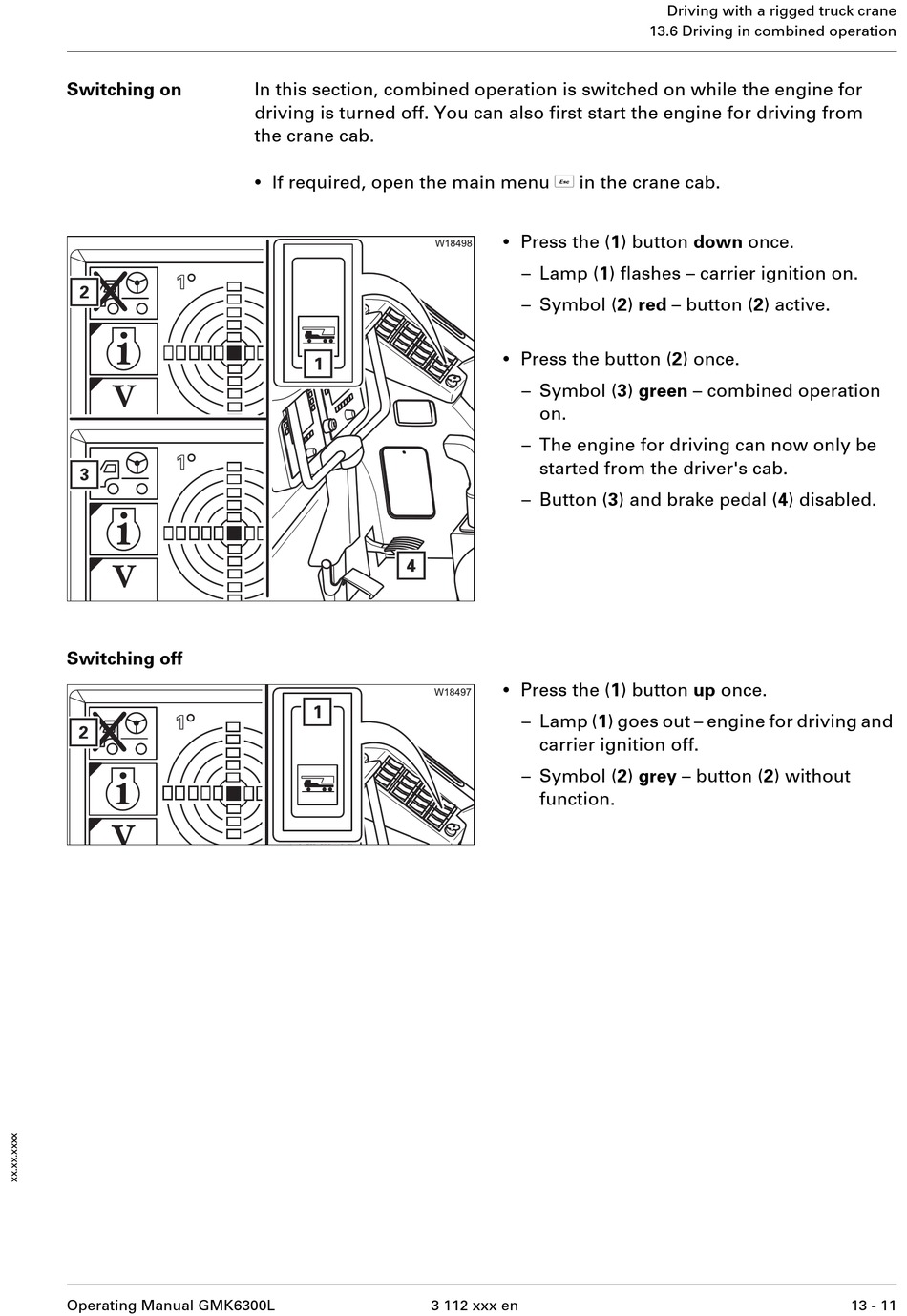

Manitowoc Grove GMK6300L Operating Manual page 895

Switching on
Switching off
Operating Manual GMK6300L
In this section, combined operation is switched on while the engine for
driving is turned off. You can also first start the engine for driving from
the crane cab.
•
If required, open the main menu
ö
in the crane cab.
•
Press the (1) button down once.
– Lamp (1) flashes – carrier ignition on.
– Symbol (2) red – button (2) active.
•
Press the button (2) once.
– Symbol (3) green – combined operation
on.
– The engine for driving can now only be
started from the driver's cab.
– Button (3) and brake pedal (4) disabled.
•
Press the (1) button up once.
– Lamp (1) goes out – engine for driving and
carrier ignition off.
– Symbol (2) grey – button (2) without
function.
3 112 xxx en
Driving with a rigged truck crane
13.6 Driving in combined operation
13 - 11
