Operating elements for driving

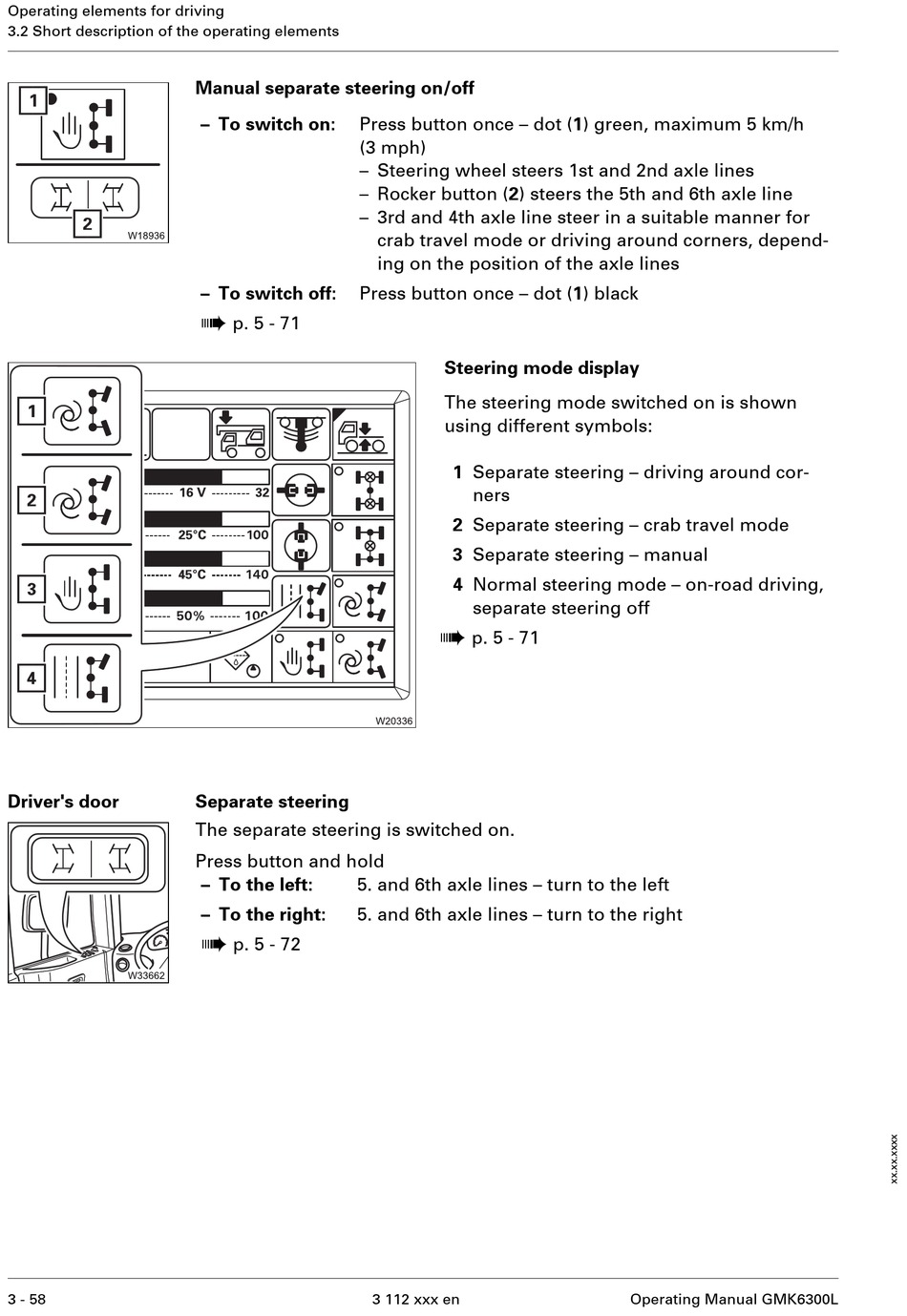

3.2 Short description of the operating elements
Driver's door
3 - 58
Manual separate steering on/off
– To switch on: Press button once – dot (1) green, maximum 5 km/h
(3 mph)
– Steering wheel steers 1st and 2nd axle lines
– Rocker button (2) steers the 5th and 6th axle line
– 3rd and 4th axle line steer in a suitable manner for
– To switch off: Press button once – dot (1) black
à
p. 5 - 71
Separate steering
The separate steering is switched on.
Press button and hold
– To the left: 5. and 6th axle lines – turn to the left
– To the right: 5. and 6th axle lines – turn to the right
à
p. 5 - 72
crab travel mode or driving around corners, depend-
ing on the position of the axle lines
Steering mode display
The steering mode switched on is shown
using different symbols:
1 Separate steering – driving around cor-
ners
2 Separate steering – crab travel mode
3 Separate steering – manual
4 Normal steering mode – on-road driving,
separate steering off
à
p. 5 - 71
