5
5.1
5.1.1
H
Operating Manual GMK6300L

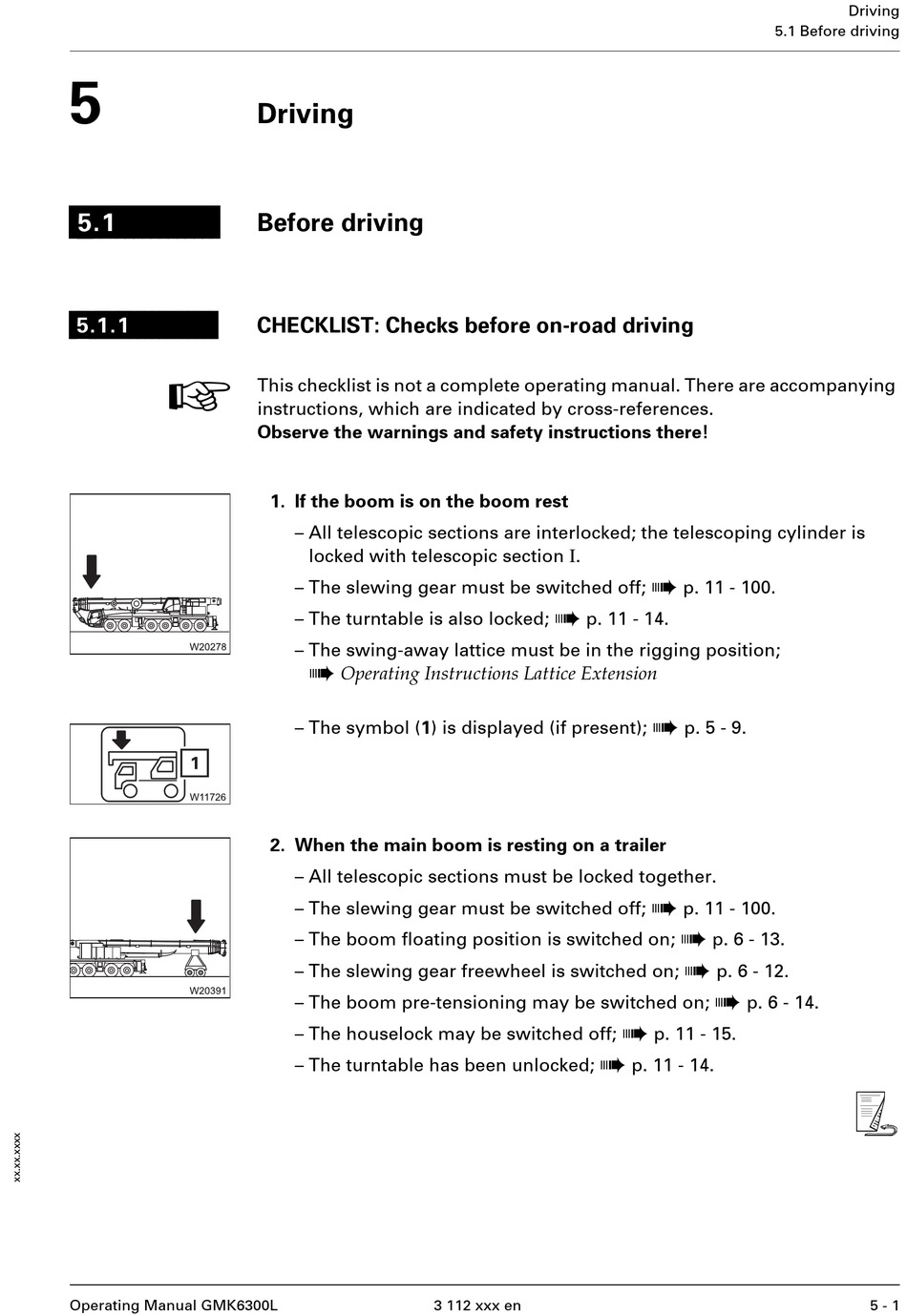

Driving

Before driving

CHECKLIST: Checks before on-road driving

This checklist is not a complete operating manual. There are accompanying
instructions, which are indicated by cross-references.
Observe the warnings and safety instructions there!
1. If the boom is on the boom rest
– All telescopic sections are interlocked; the telescoping cylinder is
locked with telescopic section I .
– The slewing gear must be switched off;
– The turntable is also locked;
– The swing-away lattice must be in the rigging position;
à
Operating Instructions Lattice Extension
– The symbol (1) is displayed (if present);
2. When the main boom is resting on a trailer
– All telescopic sections must be locked together.
– The slewing gear must be switched off;
– The boom floating position is switched on;
– The slewing gear freewheel is switched on;
– The boom pre-tensioning may be switched on;
– The houselock may be switched off;
– The turntable has been unlocked;
à
p. 11 - 14.
à
3 112 xxx en
5.1 Before driving
à
p. 11 - 100.
à
p. 5 - 9.
à
p. 11 - 100.
à
p. 6 - 13.
à
p. 6 - 12.
à
p. 6 - 14.
à
p. 11 - 15.
p. 11 - 14.
Driving
s
5 - 1
