Malfunctions during crane operation
14.5 Emergency operations and programs
G
14 - 50
Checks before telescoping
•
Before telescoping, check that the following conditions are met:
Risk of accidents from sudden retraction of a telescopic section!
*
Press the button for unlocking the telescopic section not more than
twice. If this does not start the unlocking procedure, contact
Manitowoc Crane Care.
•

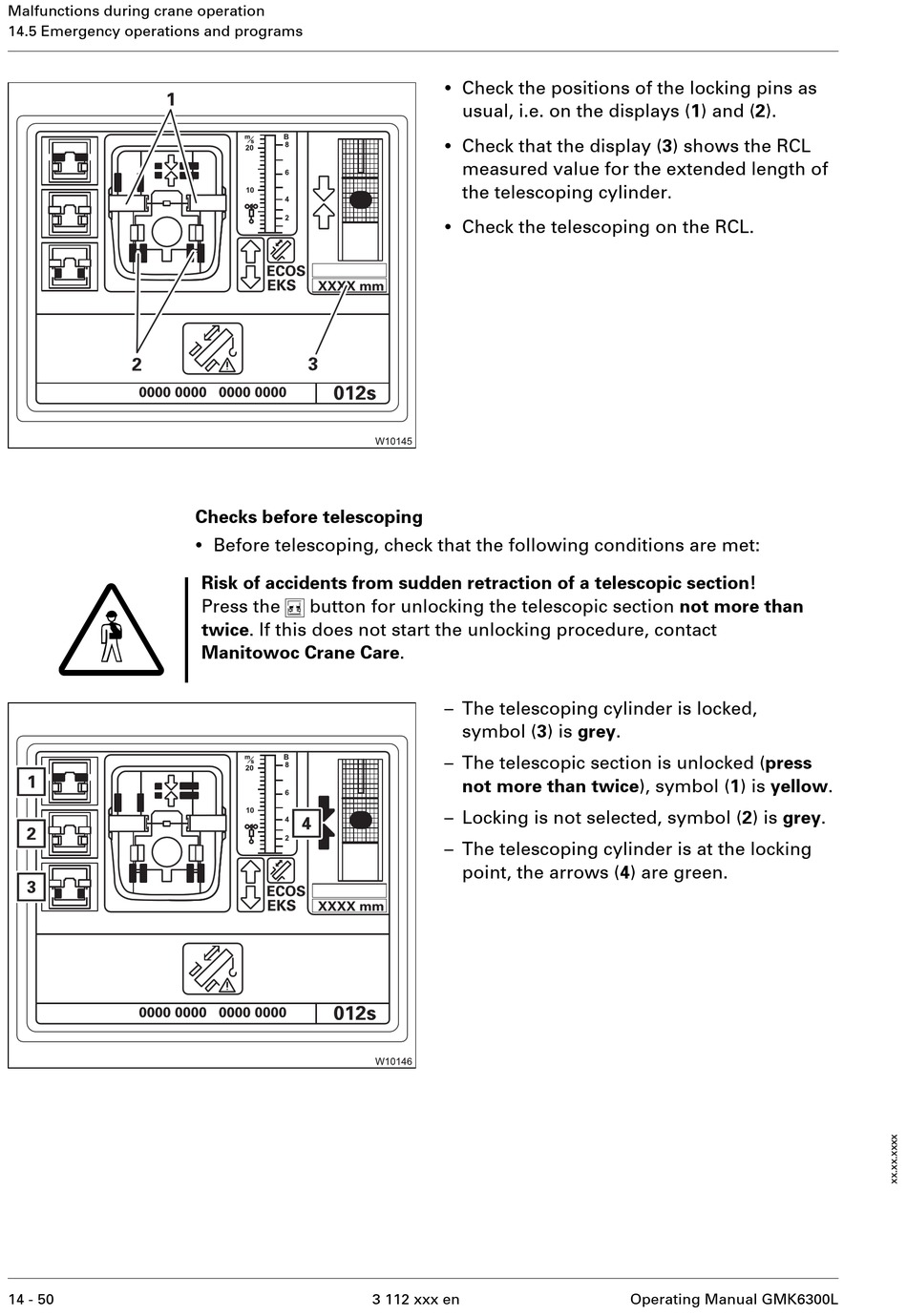

Check the positions of the locking pins as
usual, i.e. on the displays (1) and (2).
•
Check that the display (3) shows the RCL
measured value for the extended length of
the telescoping cylinder.
•
Check the telescoping on the RCL.
– The telescoping cylinder is locked,
symbol (3) is grey.
– The telescopic section is unlocked (press
not more than twice), symbol (1) is yellow.
– Locking is not selected, symbol (2) is grey.
– The telescoping cylinder is at the locking
point, the arrows (4) are green.
