14.3.2
Operating Manual GMK6300L

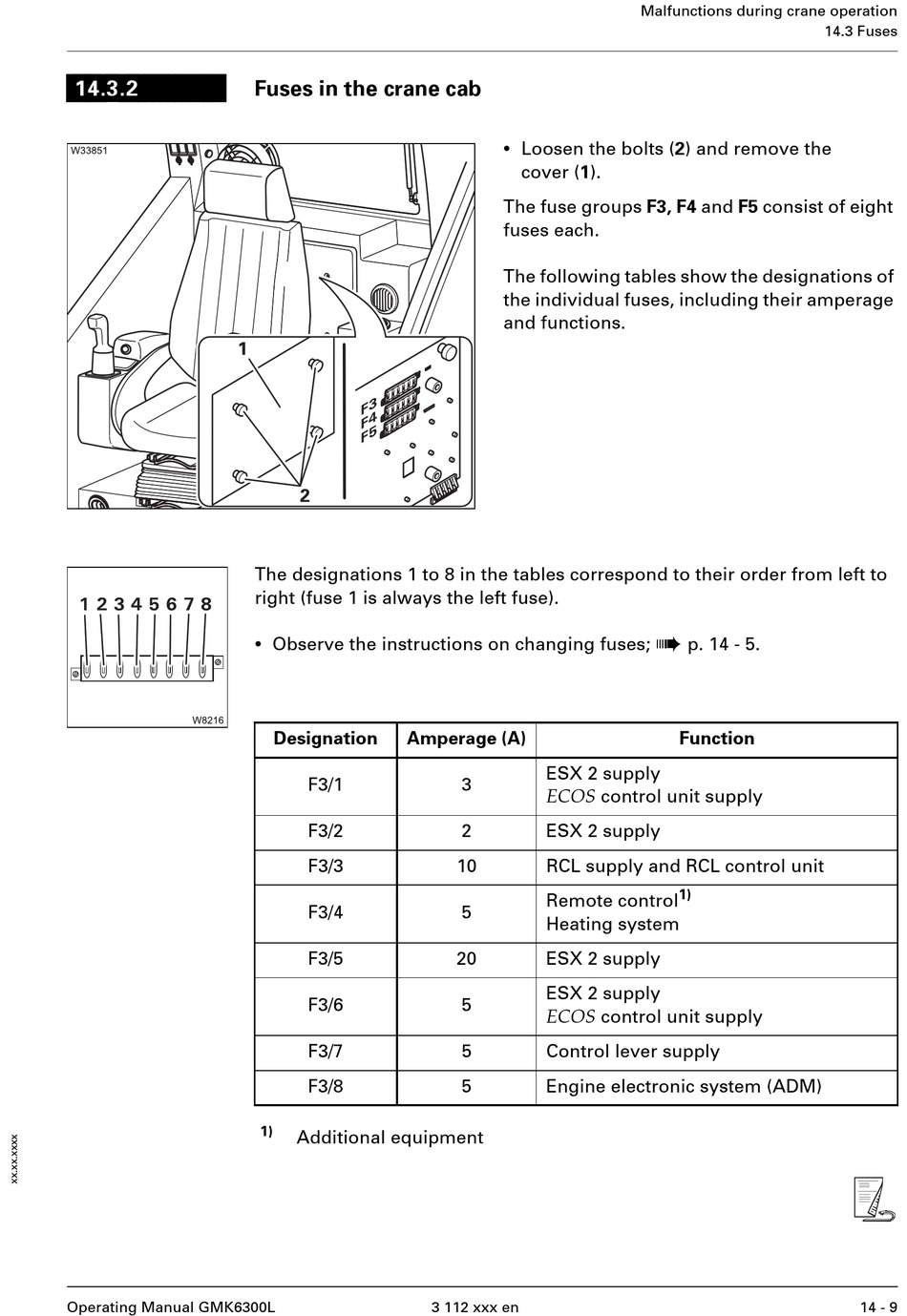

Fuses in the crane cab

The designations 1 to 8 in the tables correspond to their order from left to
right (fuse 1 is always the left fuse).
•
Observe the instructions on changing fuses;
Designation Amperage (A)
F3/1
F3/2
F3/3
F3/4
F3/5
F3/6
F3/7
F3/8
1)
Additional equipment
•
Loosen the bolts (2) and remove the
cover (1).
The fuse groups F3, F4 and F5 consist of eight
fuses each.
The following tables show the designations of
the individual fuses, including their amperage
and functions.
ESX 2 supply
3
ECOS control unit supply
2 ESX 2 supply
10 RCL supply and RCL control unit
Remote control
5
Heating system
20 ESX 2 supply
ESX 2 supply
5
ECOS control unit supply
5 Control lever supply
5 Engine electronic system (ADM)
3 112 xxx en
Malfunctions during crane operation
à
p. 14 - 5.
Function
1)
14.3 Fuses
s
14 - 9
