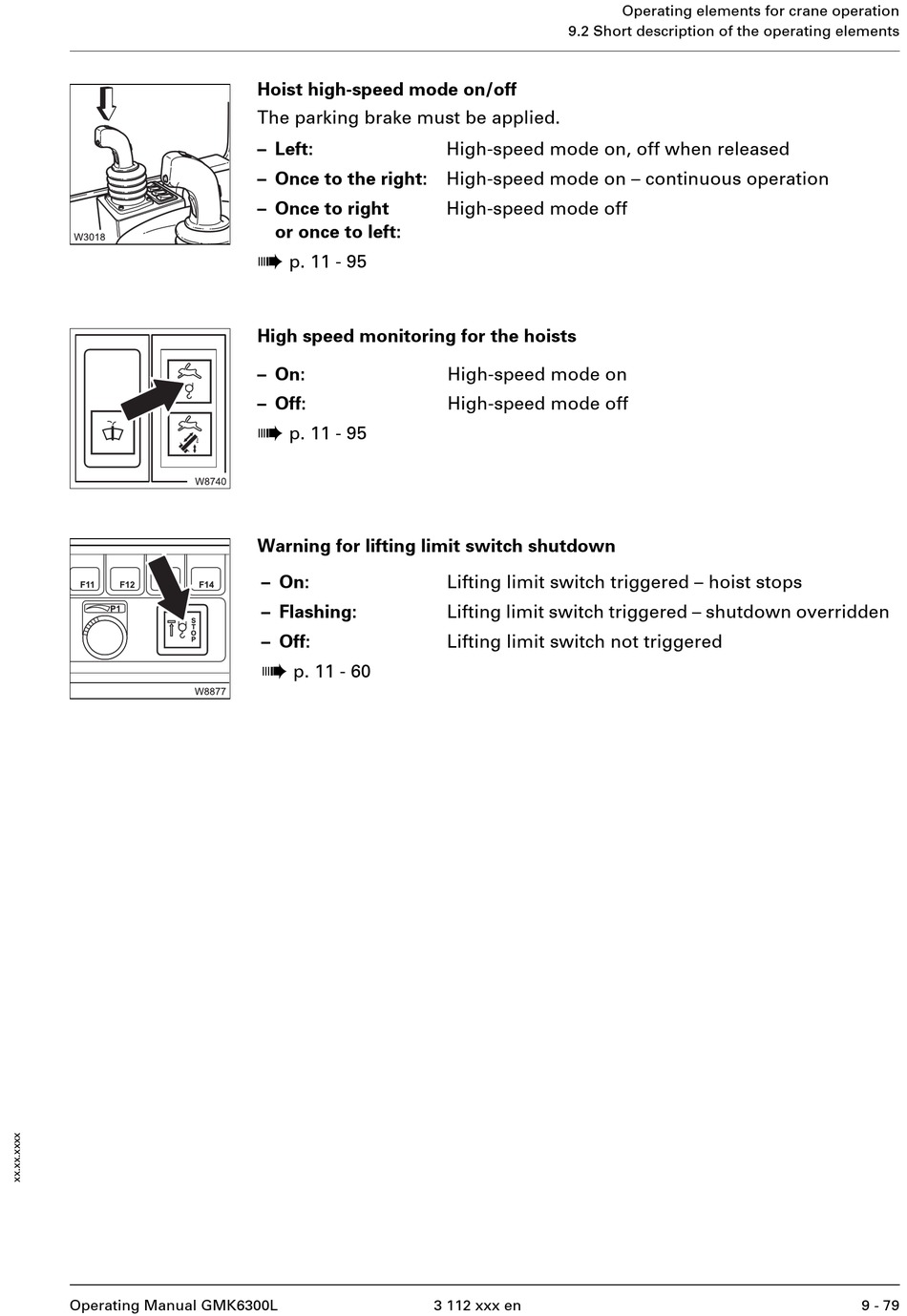

Manitowoc Grove GMK6300L Operating Manual page 543

Operating Manual GMK6300L
Hoist high-speed mode on/off
The parking brake must be applied.
– Left:
– Once to the right: High-speed mode on – continuous operation
– Once to right
or once to left:
à
p. 11 - 95
High speed monitoring for the hoists
– On:
– Off:
à
p. 11 - 95
Warning for lifting limit switch shutdown
– On:
– Flashing:
– Off:
à
p. 11 - 60
9.2 Short description of the operating elements
High-speed mode on, off when released
High-speed mode off
High-speed mode on
High-speed mode off
Lifting limit switch triggered – hoist stops
Lifting limit switch triggered – shutdown overridden
Lifting limit switch not triggered
3 112 xxx en
Operating elements for crane operation
9 - 79
