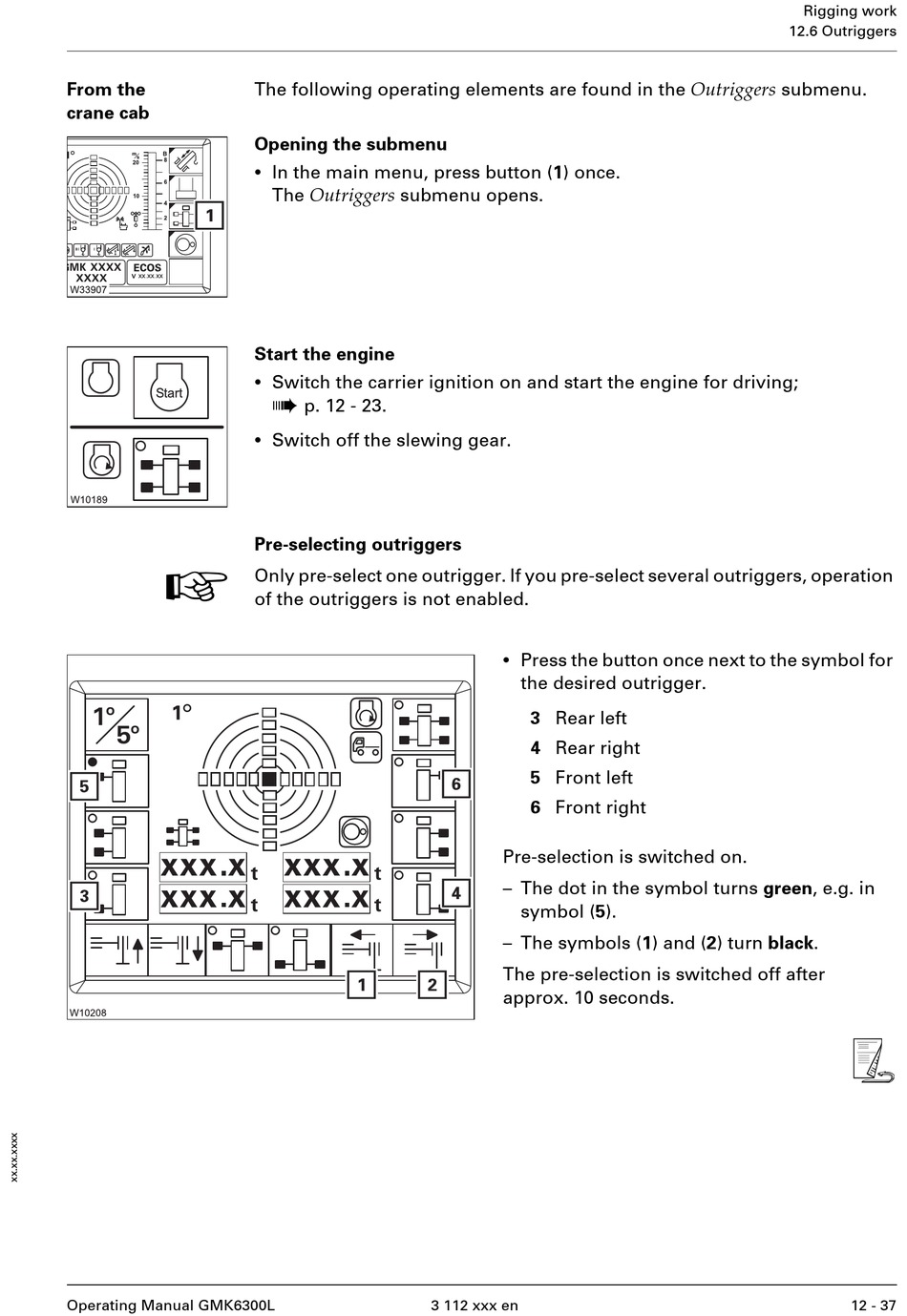

Manitowoc Grove GMK6300L Operating Manual page 795

From the
crane cab
H
Operating Manual GMK6300L
The following operating elements are found in the Outriggers submenu.
Opening the submenu
•
In the main menu, press button (1) once.
The Outriggers submenu opens.
Start the engine
•
Switch the carrier ignition on and start the engine for driving;
à
p. 12 - 23.
•
Switch off the slewing gear.
Pre-selecting outriggers
Only pre-select one outrigger. If you pre-select several outriggers, operation
of the outriggers is not enabled.
•
Press the button once next to the symbol for
the desired outrigger.
3 Rear left
4 Rear right
5 Front left
6 Front right
Pre-selection is switched on.
– The dot in the symbol turns green, e.g. in
symbol (5).
– The symbols (1) and (2) turn black.
The pre-selection is switched off after
approx. 10 seconds.
3 112 xxx en
Rigging work
12.6 Outriggers
s
12 - 37
