Operating elements for driving
3.2 Short description of the operating elements
3.2.16
3 - 64

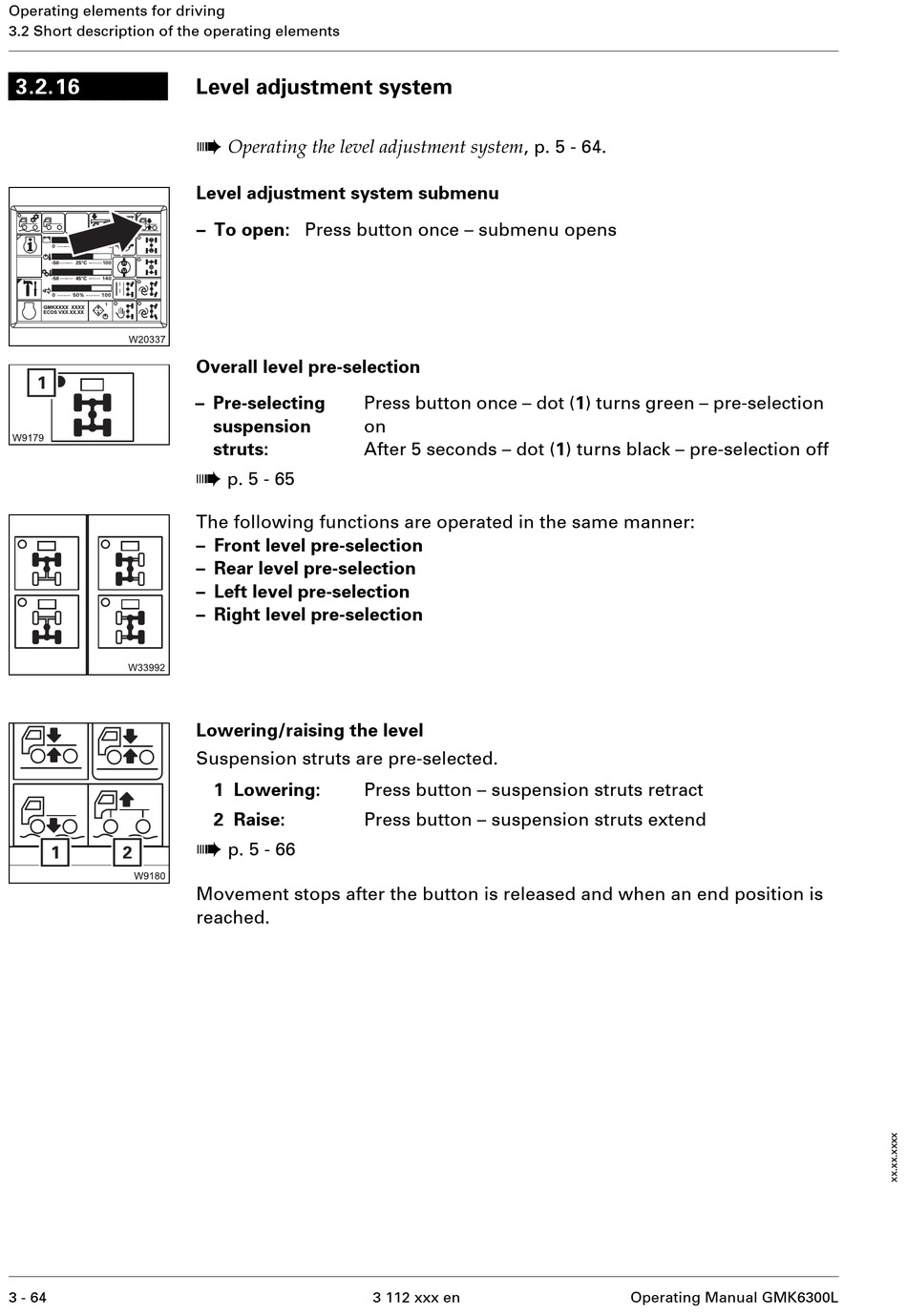

Level adjustment system

à
Operating the level adjustment system , p. 5 - 64.
Level adjustment system submenu
– To open: Press button once – submenu opens
Overall level pre-selection
– Pre-selecting Press button once – dot (1) turns green – pre-selection
suspension on
struts: After 5 seconds – dot (1) turns black – pre-selection off
à
p. 5 - 65
The following functions are operated in the same manner:
– Front level pre-selection
– Rear level pre-selection
– Left level pre-selection
– Right level pre-selection
Lowering/raising the level
Suspension struts are pre-selected.
1 Lowering: Press button – suspension struts retract
2 Raise: Press button – suspension struts extend
à
p. 5 - 66
Movement stops after the button is released and when an end position is
reached.
3 112 xxx en Operating Manual GMK6300L
