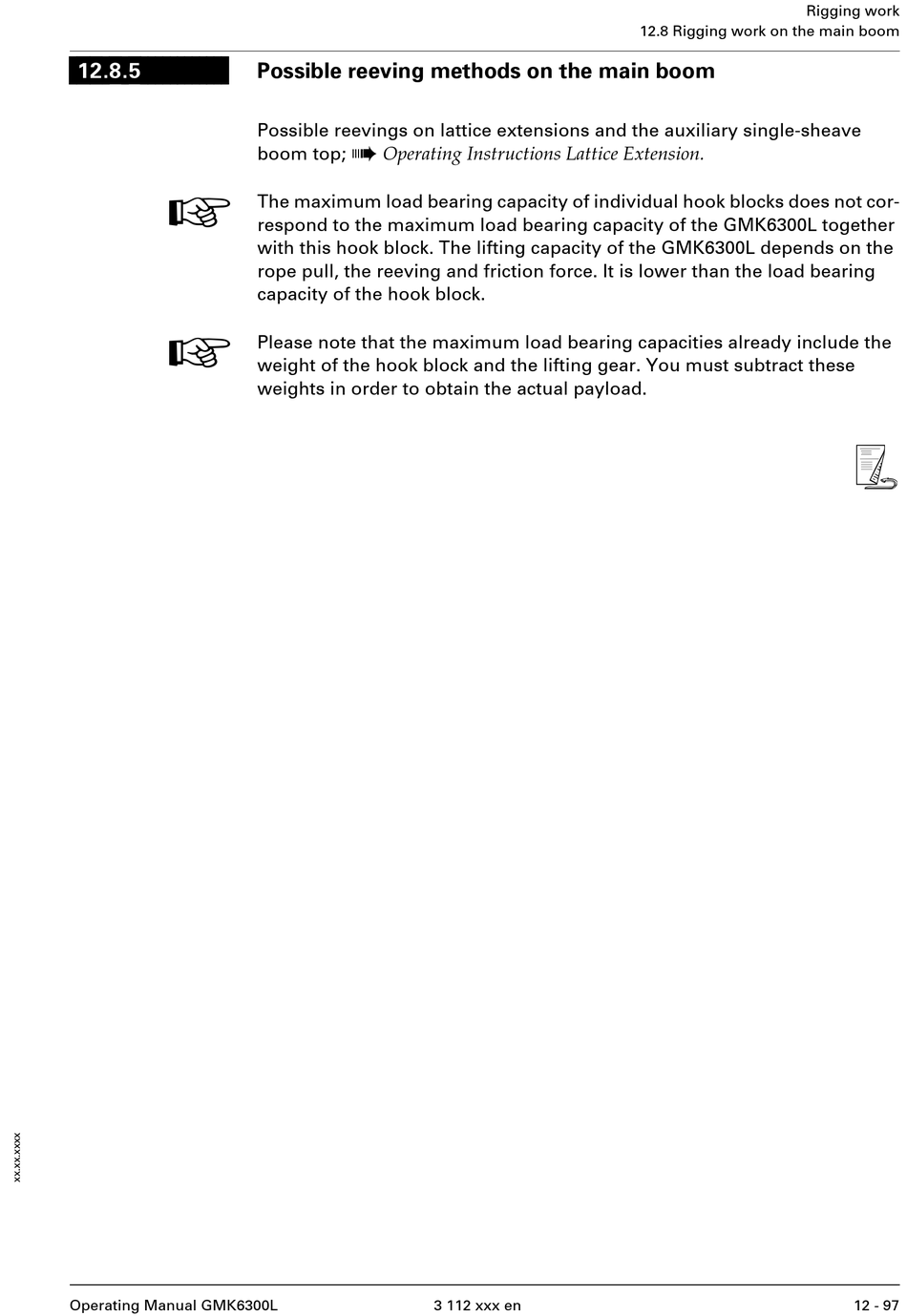

Operating Manual GMK6300L

Possible reeving methods on the main boom

Possible reevings on lattice extensions and the auxiliary single-sheave
à
Operating Instructions Lattice Extension.
boom top;
The maximum load bearing capacity of individual hook blocks does not cor-
respond to the maximum load bearing capacity of the GMK6300L together
with this hook block. The lifting capacity of the GMK6300L depends on the
rope pull, the reeving and friction force. It is lower than the load bearing
capacity of the hook block.
Please note that the maximum load bearing capacities already include the
weight of the hook block and the lifting gear. You must subtract these
weights in order to obtain the actual payload.
