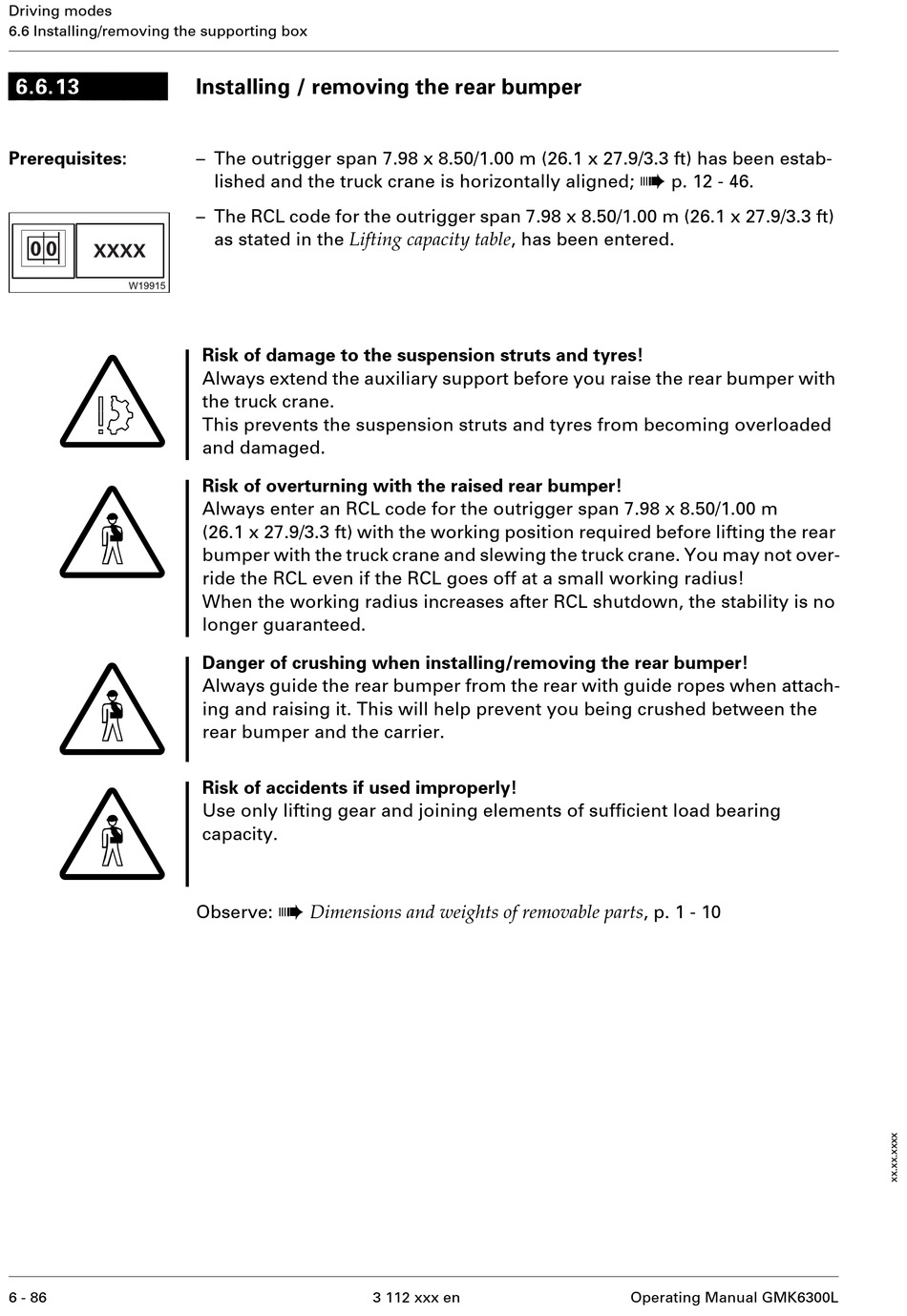

6.6 Installing/removing the supporting box
6.6.13
Prerequisites:
S
G
G
G
6 - 86

Installing / removing the rear bumper

– The outrigger span 7.98 x 8.50/1.00 m (26.1 x 27.9/3.3 ft) has been estab-
lished and the truck crane is horizontally aligned;
– The RCL code for the outrigger span 7.98 x 8.50/1.00 m (26.1 x 27.9/3.3 ft)
as stated in the Lifting capacity table , has been entered.
Risk of damage to the suspension struts and tyres!
Always extend the auxiliary support before you raise the rear bumper with
the truck crane.
This prevents the suspension struts and tyres from becoming overloaded
and damaged.
Risk of overturning with the raised rear bumper!
Always enter an RCL code for the outrigger span 7.98 x 8.50/1.00 m
(26.1 x 27.9/3.3 ft) with the working position required before lifting the rear
bumper with the truck crane and slewing the truck crane. You may not over-
ride the RCL even if the RCL goes off at a small working radius!
When the working radius increases after RCL shutdown, the stability is no
longer guaranteed.
Danger of crushing when installing/removing the rear bumper!
Always guide the rear bumper from the rear with guide ropes when attach-
ing and raising it. This will help prevent you being crushed between the
rear bumper and the carrier.
Risk of accidents if used improperly!
Use only lifting gear and joining elements of sufficient load bearing
capacity.
à
Dimensions and weights of removable parts , p. 1 - 10
Observe:
3 112 xxx en
à
p. 12 - 46.
