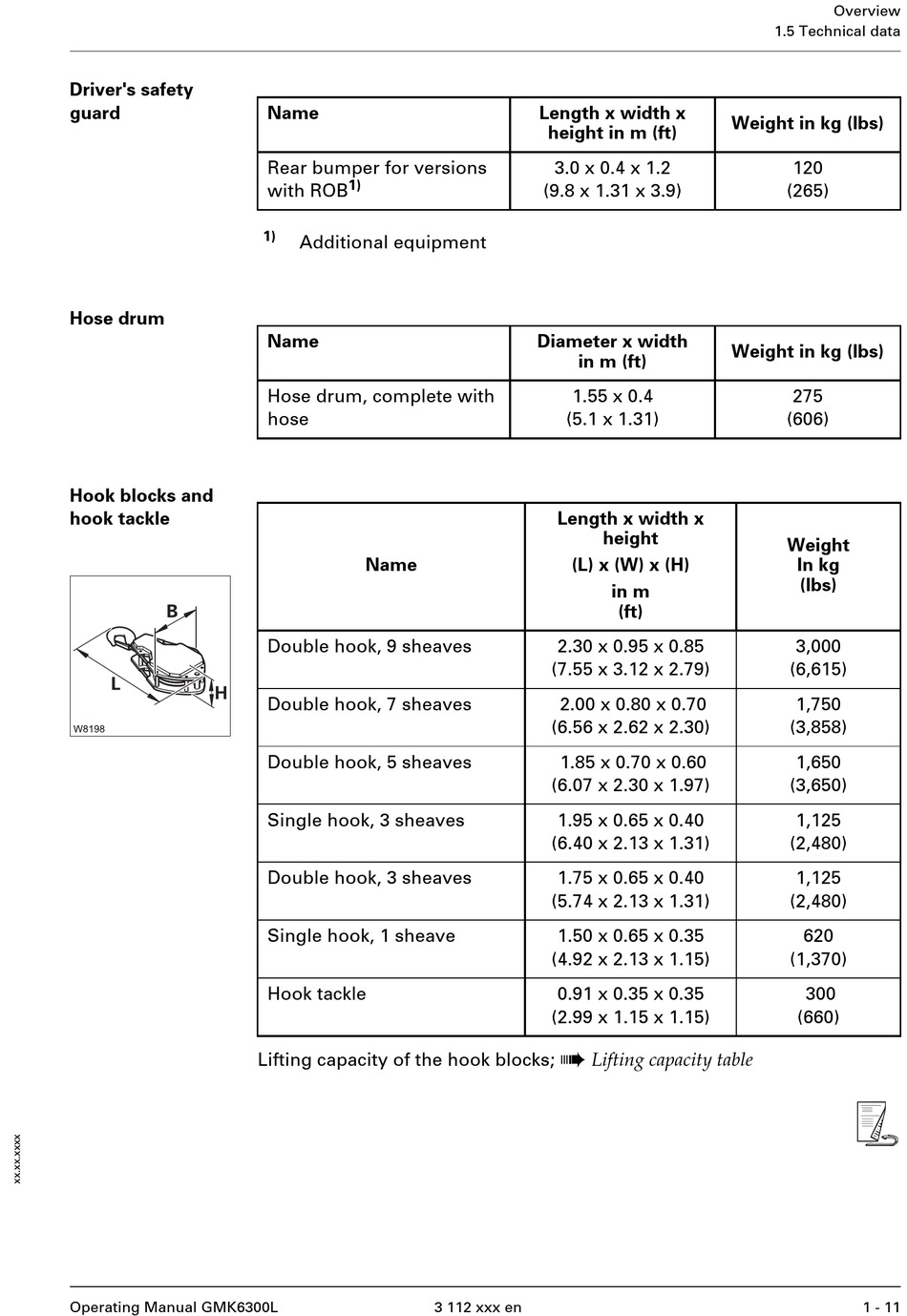

Manitowoc Grove GMK6300L Operating Manual page 31

Driver's safety
guard
Hose drum
Hook blocks and
hook tackle
Operating Manual GMK6300L
Name
Rear bumper for versions
1)
with ROB
1)
Additional equipment
Name
Hose drum, complete with
hose
Name
Double hook, 9 sheaves
Double hook, 7 sheaves
Double hook, 5 sheaves
Single hook, 3 sheaves
Double hook, 3 sheaves
Single hook, 1 sheave
Hook tackle
Lifting capacity of the hook blocks;
Length x width x
height in m (ft)
3.0 x 0.4 x 1.2
(9.8 x 1.31 x 3.9)
Diameter x width
in m (ft)
1.55 x 0.4
(5.1 x 1.31)
Length x width x
height
(L) x (W) x (H)
2.30 x 0.95 x 0.85
(7.55 x 3.12 x 2.79)
2.00 x 0.80 x 0.70
(6.56 x 2.62 x 2.30)
1.85 x 0.70 x 0.60
(6.07 x 2.30 x 1.97)
1.95 x 0.65 x 0.40
(6.40 x 2.13 x 1.31)
1.75 x 0.65 x 0.40
(5.74 x 2.13 x 1.31)
1.50 x 0.65 x 0.35
(4.92 x 2.13 x 1.15)
0.91 x 0.35 x 0.35
(2.99 x 1.15 x 1.15)
