Driving modes
6.5 Installing/removing outrigger beams
Attaching
outrigger pads
6 - 54

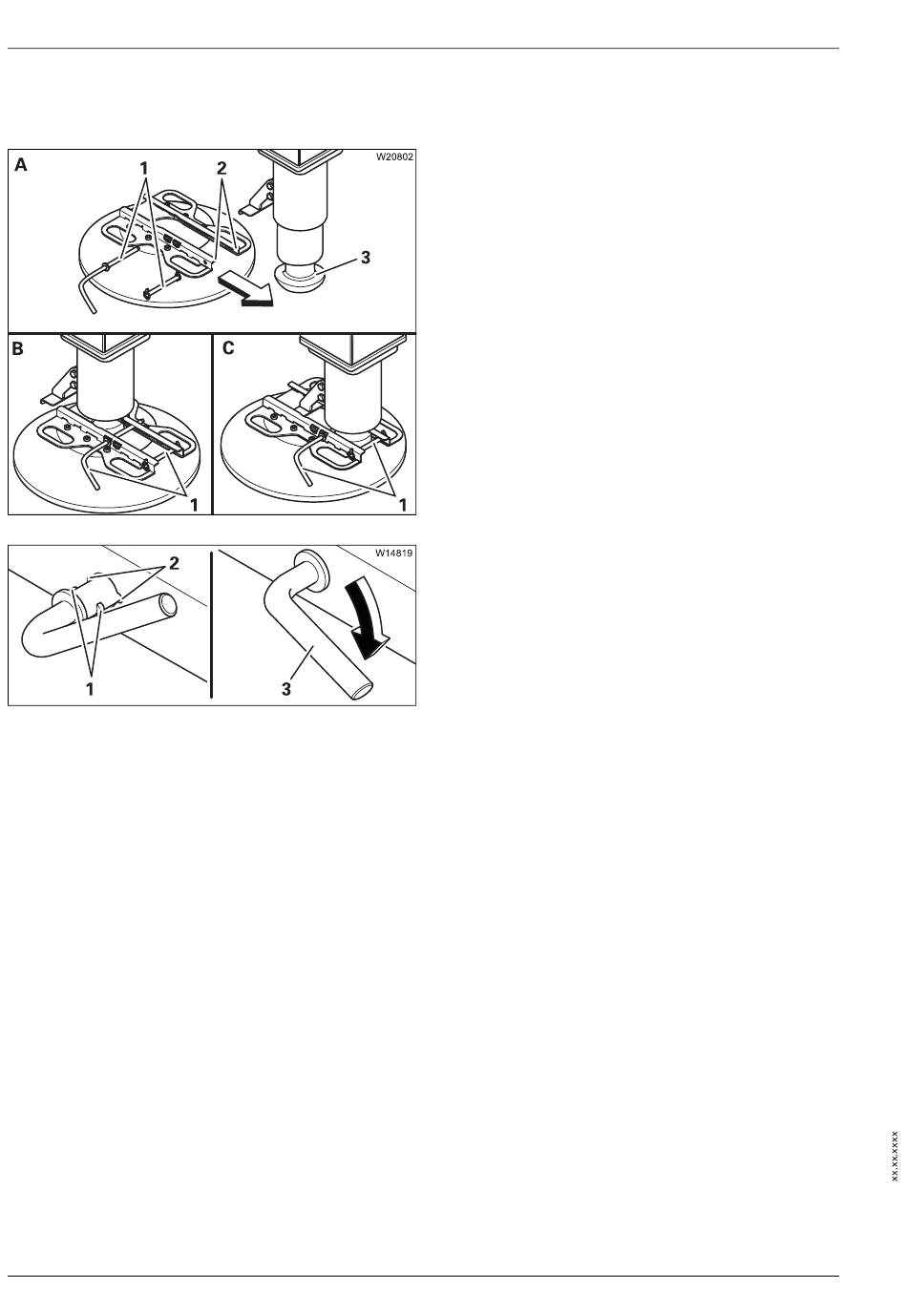

After mounting the outrigger beam, you must attach the outrigger pad.
(A) – Remove the pin (1).
Extend the outrigger cylinder far enough so
that the bearing surface (3) is below the
guide (2).
Push the outrigger pad onto the outrigger
cylinder.
Move the outrigger pad into required
position.
– On site, move it to the working position (B).
– If you need to drive to the site, in driving
position (C).
Insert the pins (1) and secure them.
Securing pin
Plug the pin with the peg (1) through the
cutout (2).
Turn the grip (3) downward.
3 112 xxx en
Operating Manual GMK6300L
