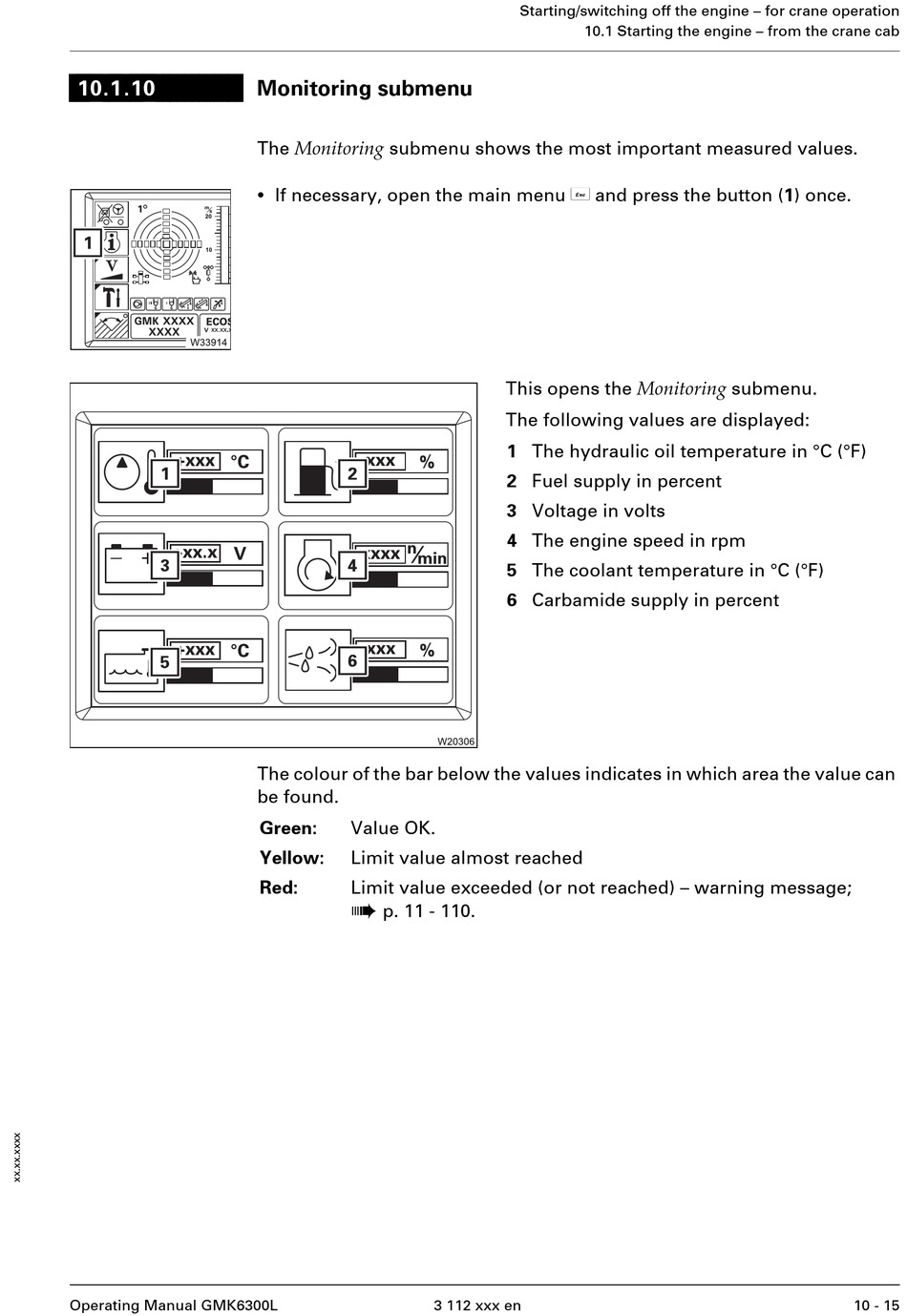

Monitoring Submenu - Manitowoc Grove GMK6300L Operating Manual

10.1.10
Operating Manual GMK6300L

Monitoring submenu

The Monitoring submenu shows the most important measured values.
•
If necessary, open the main menu
The colour of the bar below the values indicates in which area the value can
be found.
Green: Value OK.
Yellow: Limit value almost reached
Red: Limit value exceeded (or not reached) – warning message;
à
p. 11 - 110.
Starting/switching off the engine – for crane operation
10.1 Starting the engine – from the crane cab
ö
and press the button (1) once.
This opens the Monitoring submenu.
The following values are displayed:
1 The hydraulic oil temperature in °C (°F)
2 Fuel supply in percent
3 Voltage in volts
4 The engine speed in rpm
5 The coolant temperature in °C (°F)
6 Carbamide supply in percent
3 112 xxx en 10 - 15
