Malfunctions in driving mode
7.3 Towing the truck crane
7.3.3
Performing a jump
start
7 - 10

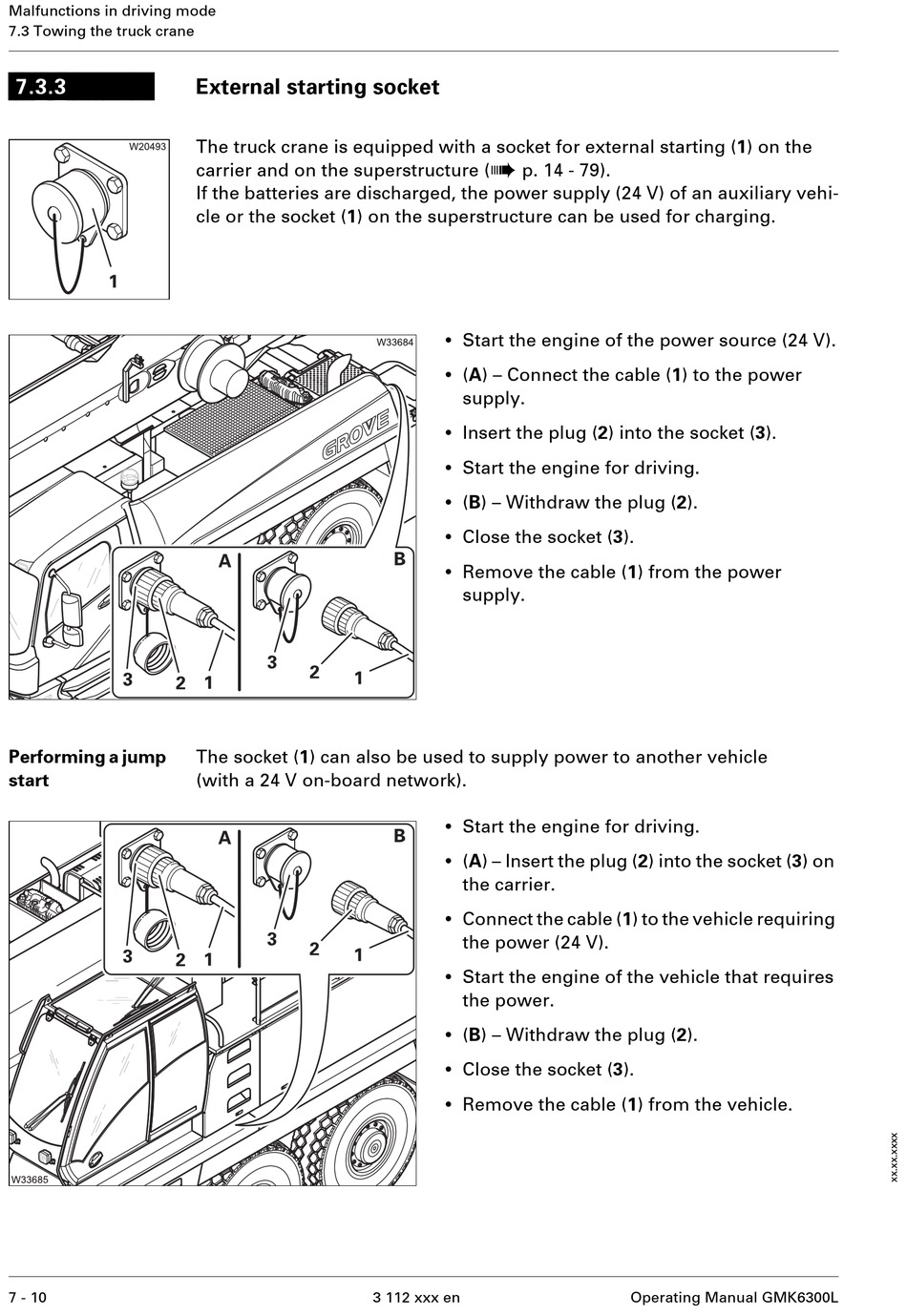

External starting socket

The truck crane is equipped with a socket for external starting (1) on the
carrier and on the superstructure (
If the batteries are discharged, the power supply (24 V) of an auxiliary vehi-
cle or the socket (1) on the superstructure can be used for charging.
The socket (1) can also be used to supply power to another vehicle
(with a 24 V on-board network).
à
p. 14 - 79).
•
Start the engine of the power source (24 V).
•
(A) – Connect the cable (1) to the power
supply.
•
Insert the plug (2) into the socket (3).
•
Start the engine for driving.
•
(B) – Withdraw the plug (2).
•
Close the socket (3).
•
Remove the cable (1) from the power
supply.
•
Start the engine for driving.
•
(A) – Insert the plug (2) into the socket (3) on
the carrier.
•
Connect the cable (1) to the vehicle requiring
the power (24 V).
•
Start the engine of the vehicle that requires
the power.
•
(B) – Withdraw the plug (2).
•
Close the socket (3).
•
Remove the cable (1) from the vehicle.
