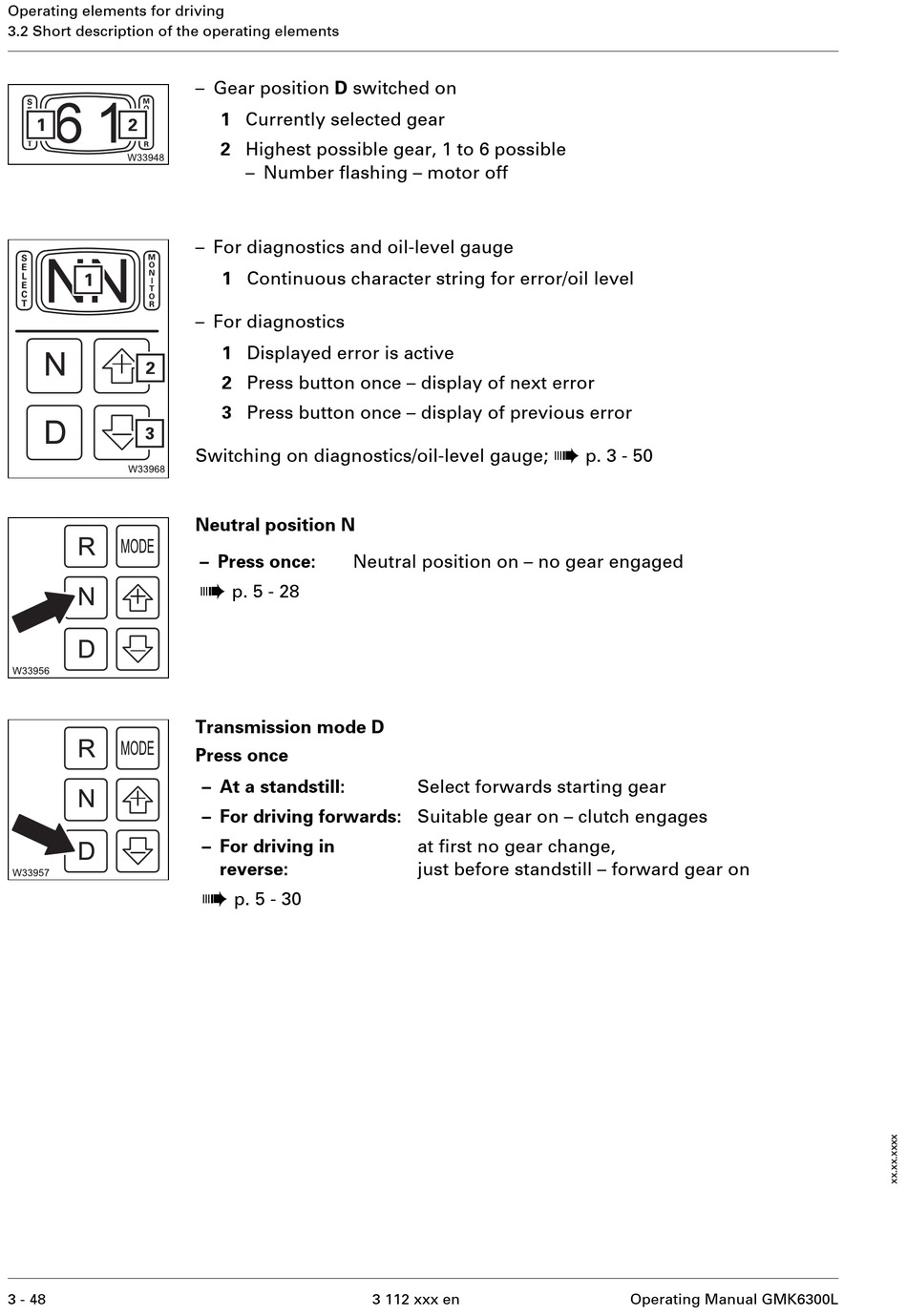

Operating elements for driving
3.2 Short description of the operating elements
3 - 48
– Gear position D switched on
1 Currently selected gear
2 Highest possible gear, 1 to 6 possible
– Number flashing – motor off
– For diagnostics and oil-level gauge
1 Continuous character string for error/oil level
– For diagnostics
1 Displayed error is active
2 Press button once – display of next error
3 Press button once – display of previous error
Switching on diagnostics/oil-level gauge;
Neutral position N
– Press once: Neutral position on – no gear engaged
à
p. 5 - 28
Transmission mode D
Press once
– At a standstill:
– For driving forwards: Suitable gear on – clutch engages
– For driving in
reverse:
à
p. 5 - 30
Select forwards starting gear
at first no gear change,
just before standstill – forward gear on
3 112 xxx en
à
p. 3 - 50
