Operating Manual GMK6300L

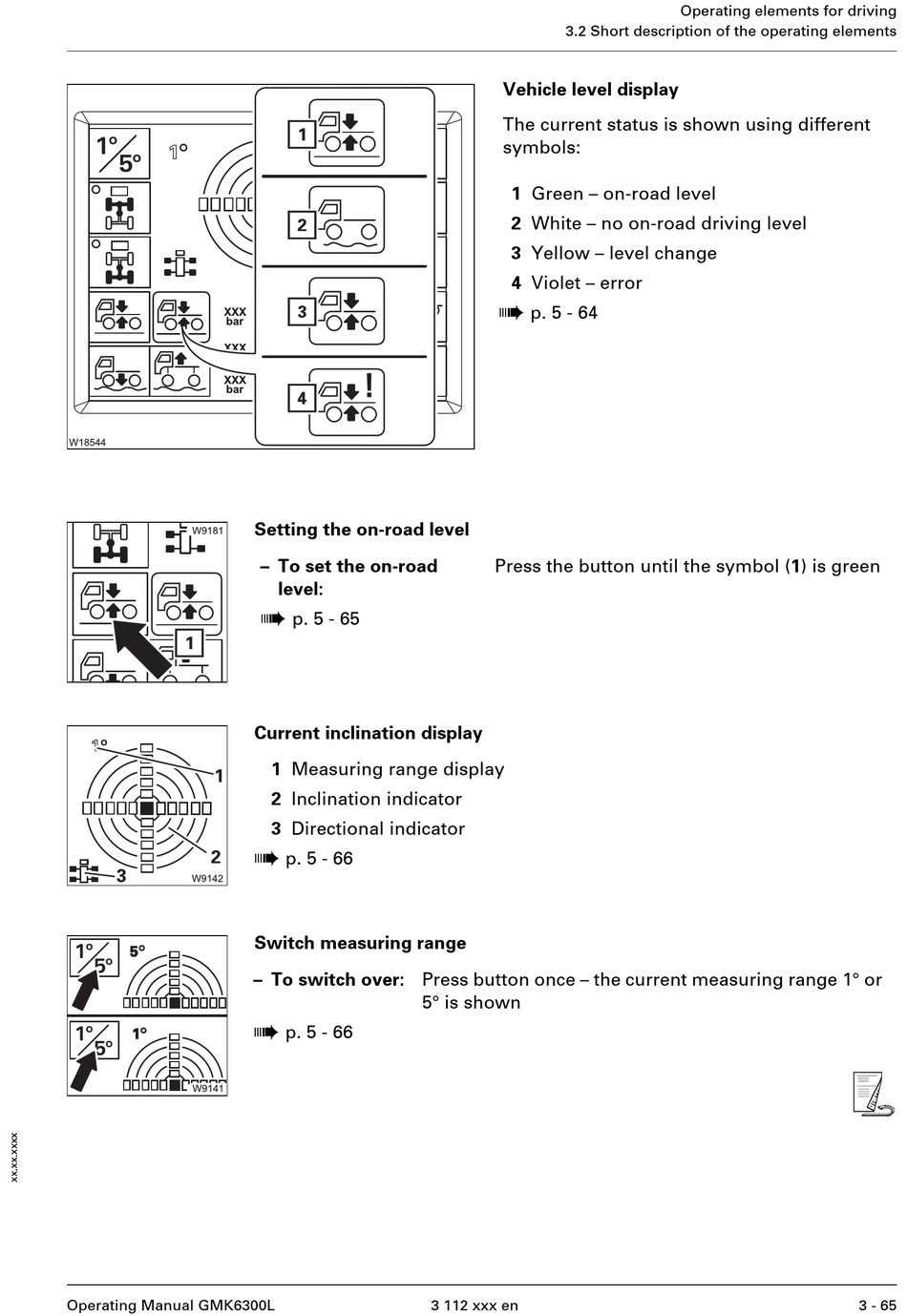

Setting the on-road level
– To set the on-road
level:
à
p. 5 - 65
Current inclination display
1 Measuring range display
2 Inclination indicator
3 Directional indicator
à
p. 5 - 66
Switch measuring range
– To switch over: Press button once – the current measuring range 1° or
5° is shown
à
p. 5 - 66
3.2 Short description of the operating elements
Vehicle level display
The current status is shown using different
symbols:
1 Green – on-road level
2 White – no on-road driving level
3 Yellow – level change
4 Violet – error
à
p. 5 - 64
Press the button until the symbol (1) is green
3 112 xxx en
Operating elements for driving
s
3 - 65
