Rigging work

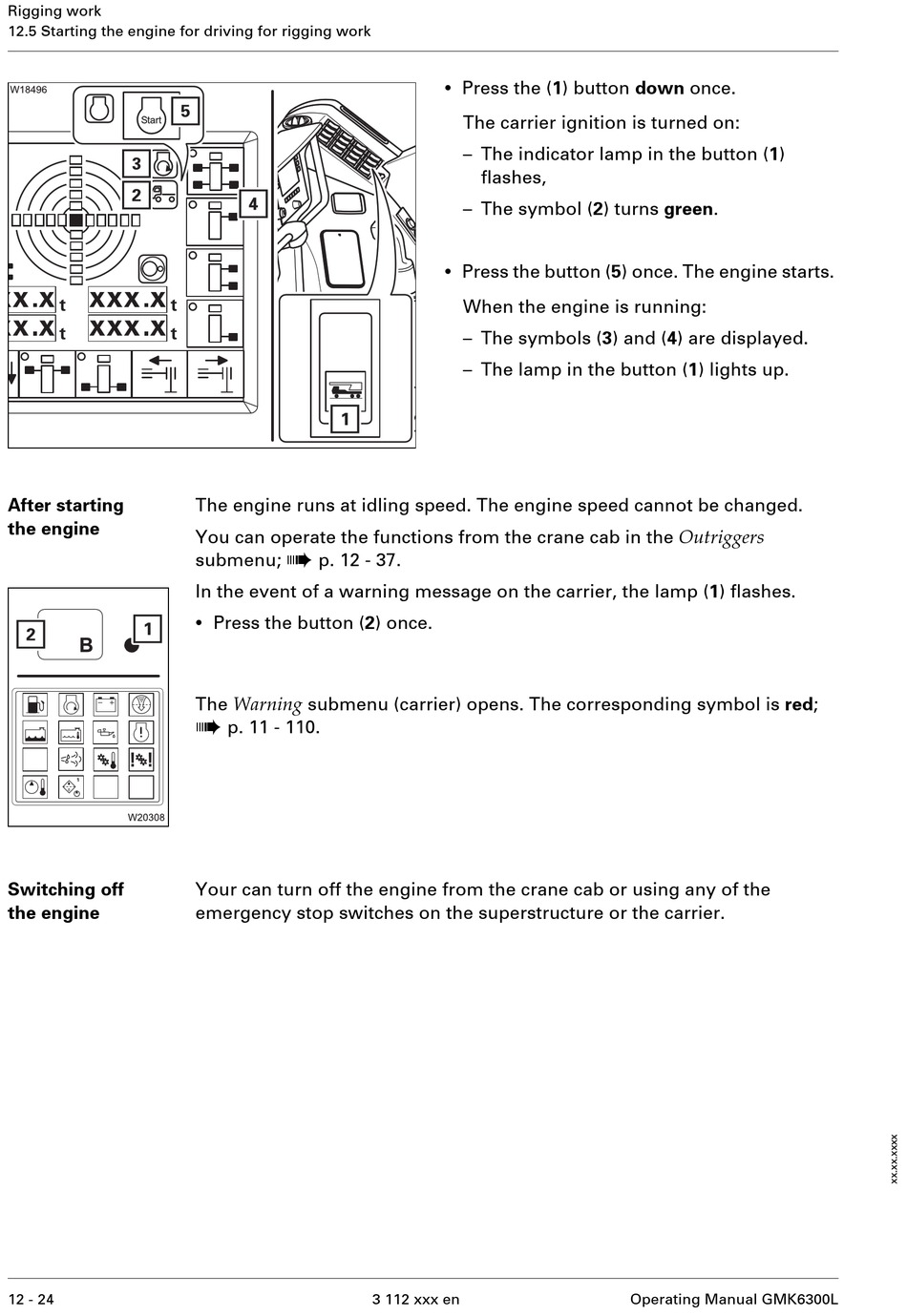

12.5 Starting the engine for driving for rigging work
After starting
the engine
Switching off
the engine
12 - 24
The engine runs at idling speed. The engine speed cannot be changed.
You can operate the functions from the crane cab in the Outriggers
à
submenu; p. 12 - 37.
In the event of a warning message on the carrier, the lamp (1) flashes.
•
Press the button (2) once.
The Warning submenu (carrier) opens. The corresponding symbol is red;
à
p. 11 - 110.
Your can turn off the engine from the crane cab or using any of the
emergency stop switches on the superstructure or the carrier.
•
Press the (1) button down once.
The carrier ignition is turned on:
– The indicator lamp in the button (1)
flashes,
– The symbol (2) turns green.
•
Press the button (5) once. The engine starts.
When the engine is running:
– The symbols (3) and (4) are displayed.
– The lamp in the button (1) lights up.
3 112 xxx en Operating Manual GMK6300L
