Rigging work
12.8 Rigging work on the main boom

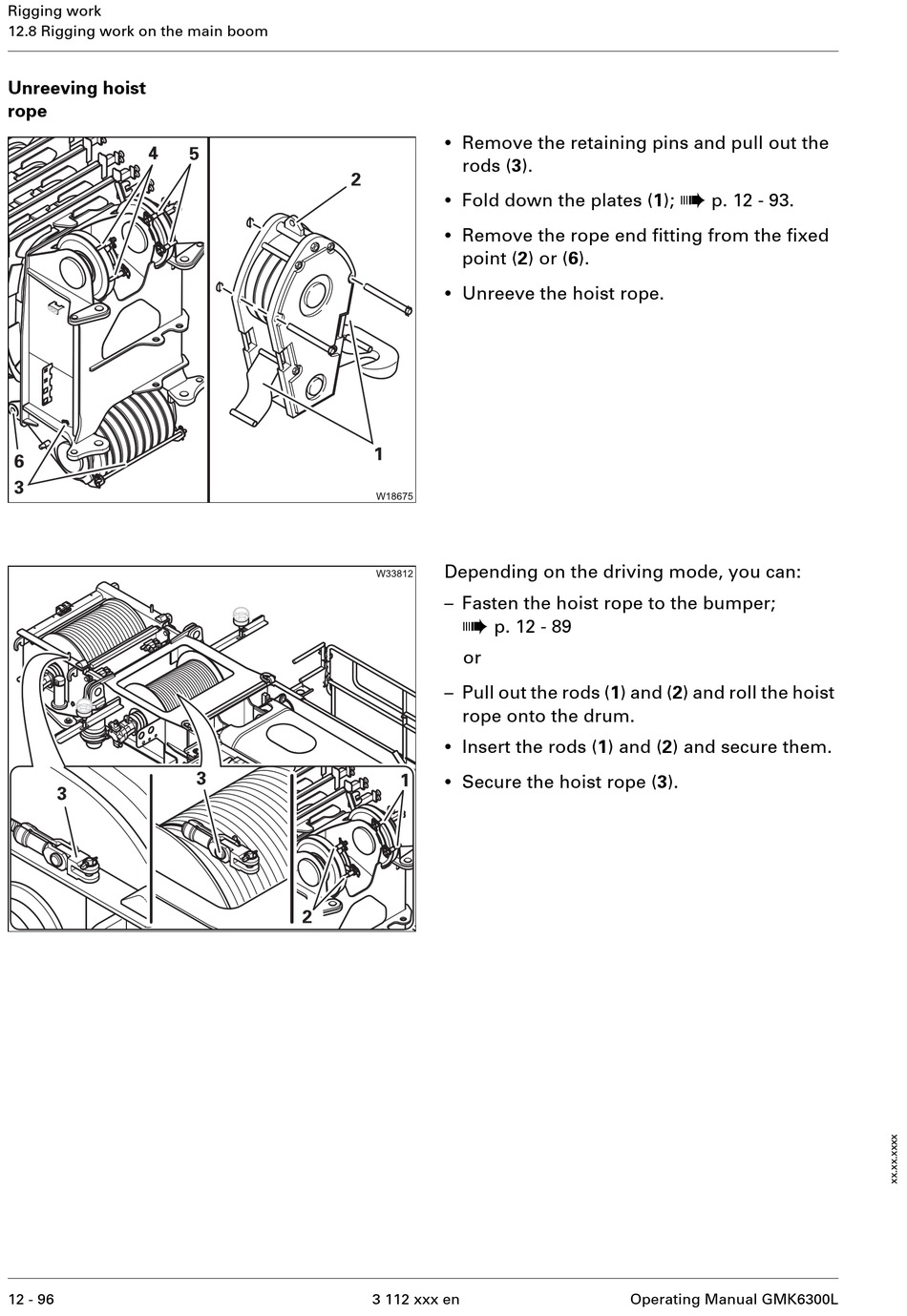

Unreeving hoist
rope
12 - 96
•
Remove the retaining pins and pull out the
rods (3).
•
Fold down the plates (1);
•
Remove the rope end fitting from the fixed
point (2) or (6).
•
Unreeve the hoist rope.
Depending on the driving mode, you can:
– Fasten the hoist rope to the bumper;
à
p. 12 - 89
or
– Pull out the rods (1) and (2) and roll the hoist
rope onto the drum.
•
Insert the rods (1) and (2) and secure them.
•
Secure the hoist rope (3).
3 112 xxx en
à
p. 12 - 93.
