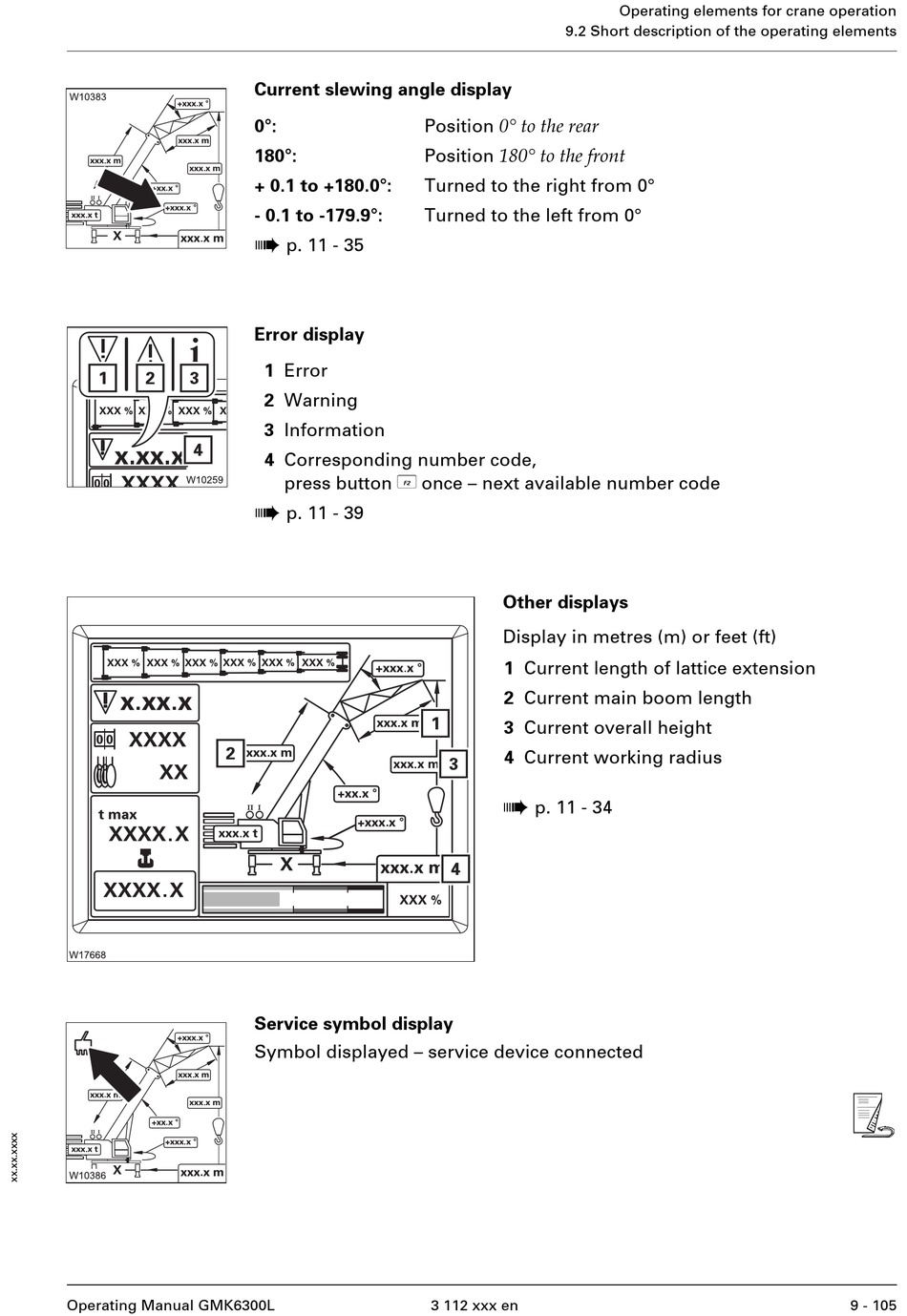

Current slewing angle display
Position 0° to the rear
0°:
Position 180° to the front
180°:
+ 0.1 to +180.0°: Turned to the right from 0°
- 0.1 to -179.9°: Turned to the left from 0°
à
p. 11 - 35
Error display
1 Error
2 Warning
3 Information
4 Corresponding number code,
@
press button once – next available number code
à
p. 11 - 39
Service symbol display
Symbol displayed – service device connected
9.2 Short description of the operating elements
Other displays
Display in metres (m) or feet (ft)
1 Current length of lattice extension
2 Current main boom length
3 Current overall height
4 Current working radius
à
p. 11 - 34
