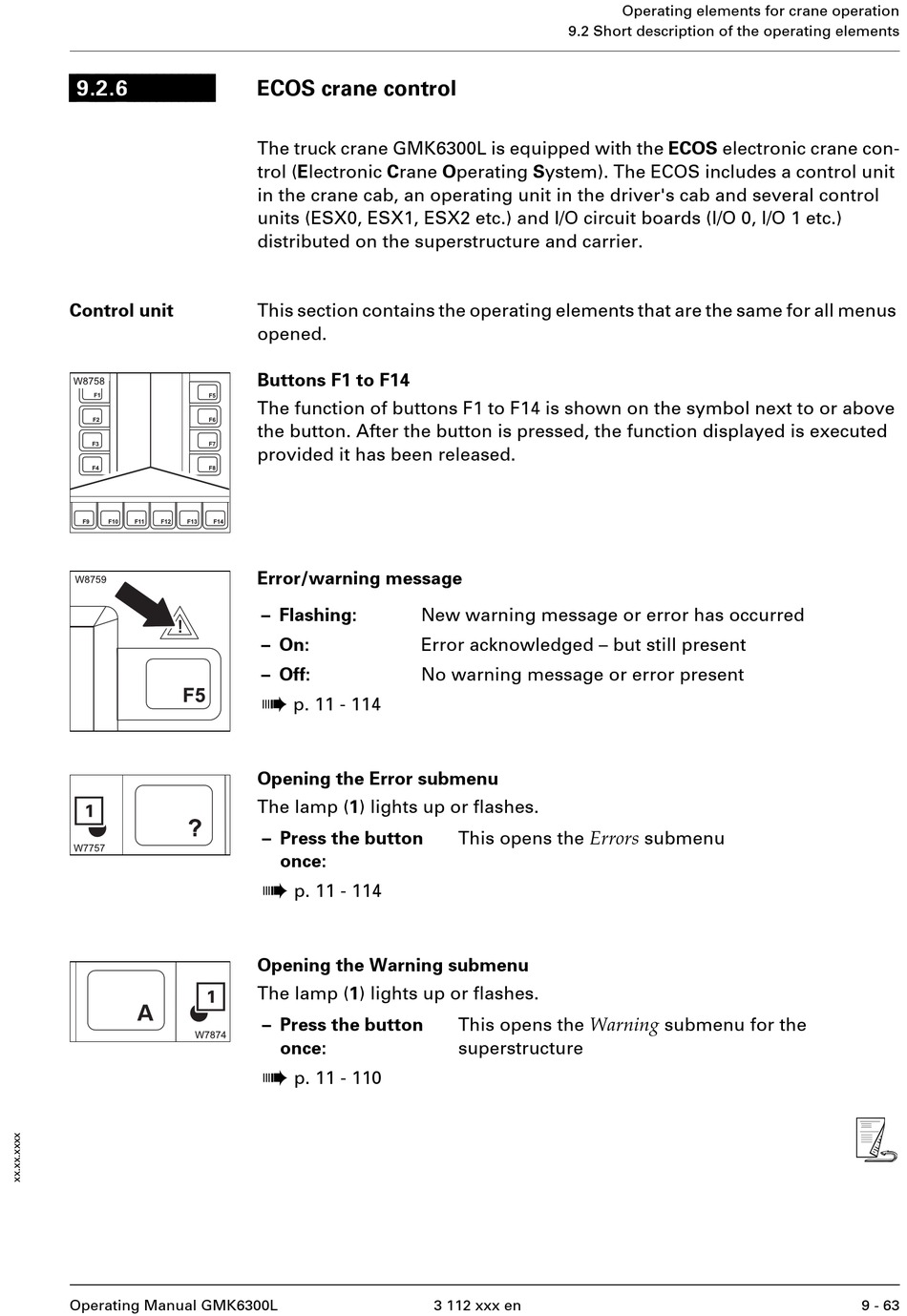

9.2.6
Control unit
Operating Manual GMK6300L

ECOS crane control

The truck crane GMK6300L is equipped with the ECOS electronic crane con-
trol (Electronic Crane Operating System). The ECOS includes a control unit
in the crane cab, an operating unit in the driver's cab and several control
units (ESX0, ESX1, ESX2 etc.) and I/O circuit boards (I/O 0, I/O 1 etc.)
distributed on the superstructure and carrier.
This section contains the operating elements that are the same for all menus
opened.
Buttons F1 to F14
The function of buttons F1 to F14 is shown on the symbol next to or above
the button. After the button is pressed, the function displayed is executed
provided it has been released.
Error/warning message
– Flashing: New warning message or error has occurred
– On: Error acknowledged – but still present
– Off: No warning message or error present
à
p. 11 - 114
Opening the Error submenu
The lamp (1) lights up or flashes.
– Press the button
once:
à
p. 11 - 114
Opening the Warning submenu
The lamp (1) lights up or flashes.
– Press the button
once:
à
p. 11 - 110
9.2 Short description of the operating elements
This opens the Errors submenu
This opens the Warning submenu for the
superstructure
3 112 xxx en
Operating elements for crane operation
s
9 - 63
