H
Operating Manual GMK6300L

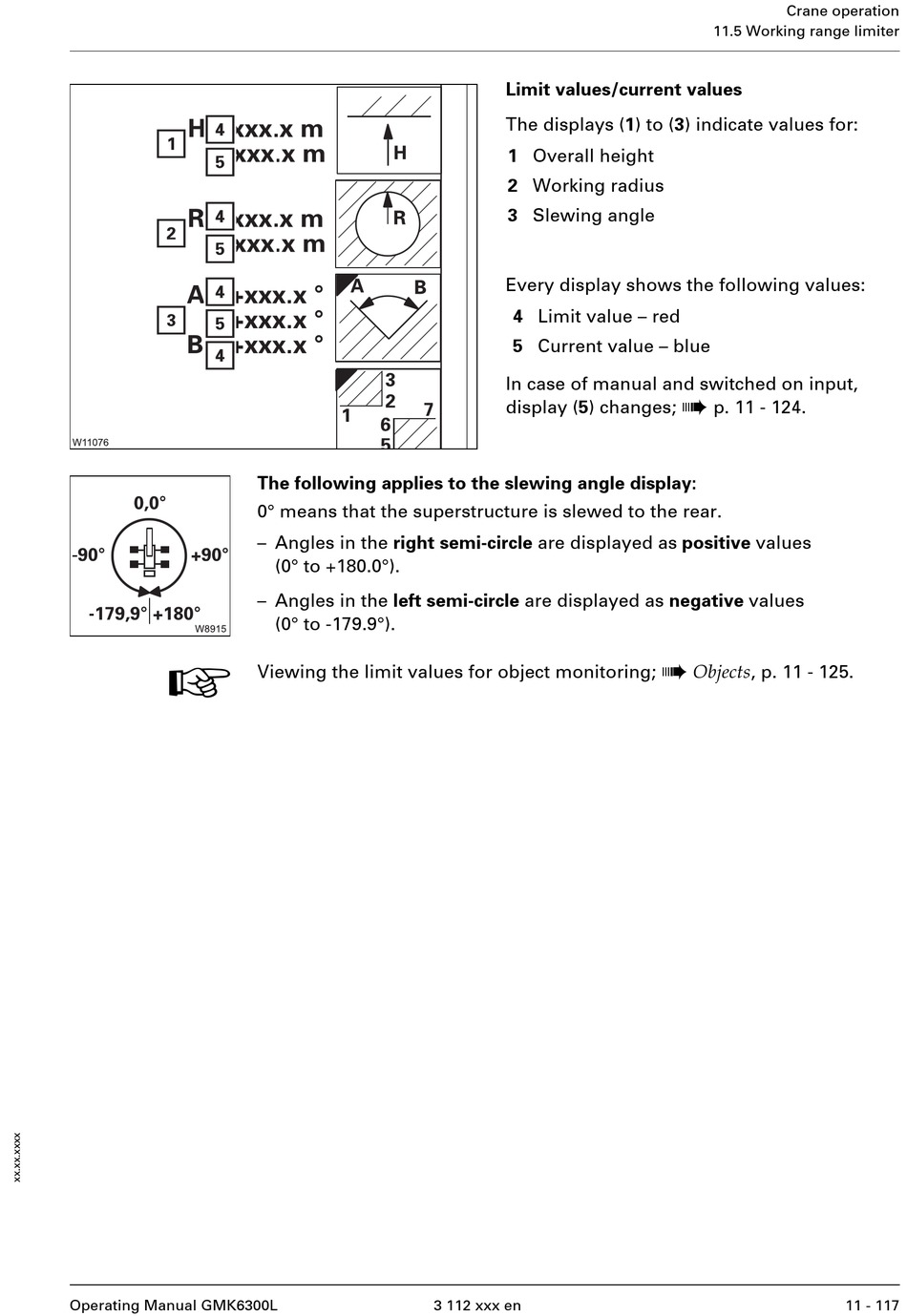

The following applies to the slewing angle display:
0° means that the superstructure is slewed to the rear.
– Angles in the right semi-circle are displayed as positive values
(0° to +180.0°).
– Angles in the left semi-circle are displayed as negative values
(0° to -179.9°).
Viewing the limit values for object monitoring;
Limit values/current values
The displays (1) to (3) indicate values for:
1 Overall height
2 Working radius
3 Slewing angle
Every display shows the following values:
4 Limit value – red
5 Current value – blue
In case of manual and switched on input,
display (5) changes;
3 112 xxx en
Crane operation
11.5 Working range limiter
à
p. 11 - 124.
à
Objects , p. 11 - 125.
11 - 117
