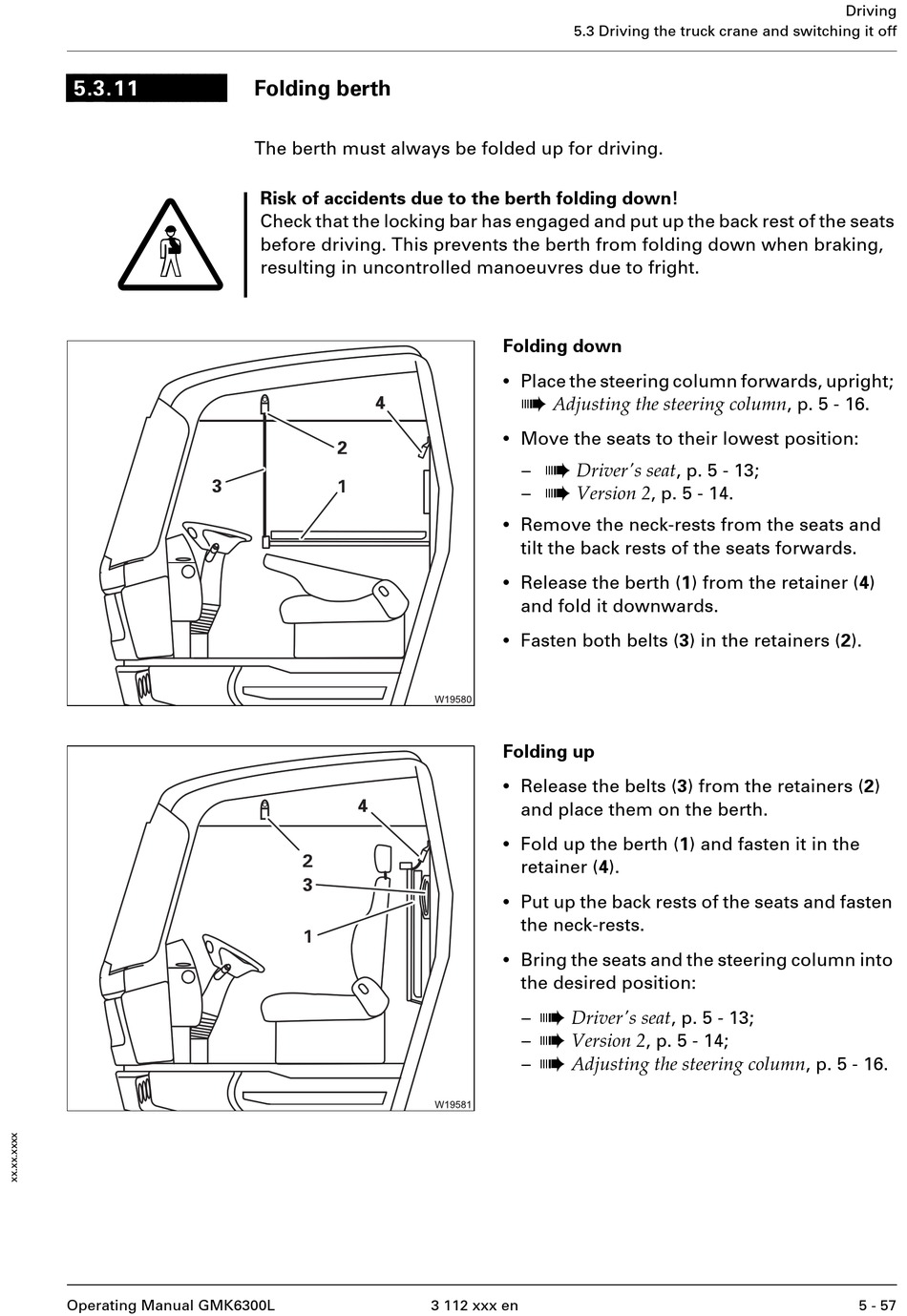

Operating Manual GMK6300L

Folding berth

The berth must always be folded up for driving.
Risk of accidents due to the berth folding down!
Check that the locking bar has engaged and put up the back rest of the seats
before driving. This prevents the berth from folding down when braking,
resulting in uncontrolled manoeuvres due to fright.
5.3 Driving the truck crane and switching it off
Folding down
•
Place the steering column forwards, upright;
à
Adjusting the steering column , p. 5 - 16.
•
Move the seats to their lowest position:
à
Driver's seat , p. 5 - 13;
–
à
– Version 2 , p. 5 - 14.
•
Remove the neck-rests from the seats and
tilt the back rests of the seats forwards.
•
Release the berth (1) from the retainer (4)
and fold it downwards.
•
Fasten both belts (3) in the retainers (2).
Folding up
•
Release the belts (3) from the retainers (2)
and place them on the berth.
•
Fold up the berth (1) and fasten it in the
retainer (4).
•
Put up the back rests of the seats and fasten
the neck-rests.
•
Bring the seats and the steering column into
the desired position:
à
Driver's seat , p. 5 - 13;
–
à
Version 2 , p. 5 - 14;
–
à
Adjusting the steering column , p. 5 - 16.
–
