Starting/switching off the engine – for crane operation
10.1 Starting the engine – from the crane cab
10.1.9
S
10 - 14

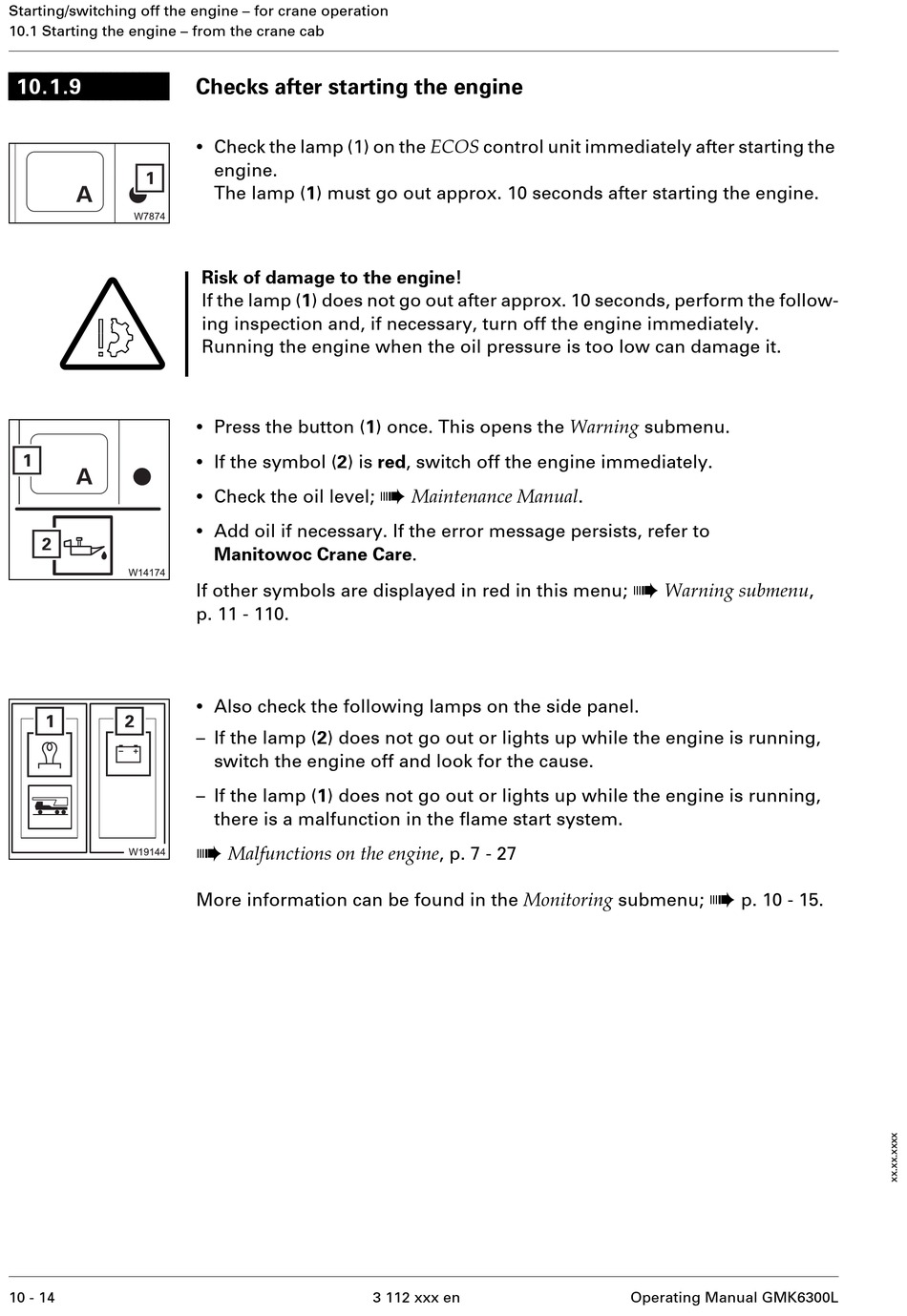

Checks after starting the engine

•
Check the lamp (1) on the ECOS control unit immediately after starting the
engine.
The lamp (1) must go out approx. 10 seconds after starting the engine.
Risk of damage to the engine!
If the lamp (1) does not go out after approx. 10 seconds, perform the follow-
ing inspection and, if necessary, turn off the engine immediately.
Running the engine when the oil pressure is too low can damage it.
•
Press the button (1) once. This opens the Warning submenu.
•
If the symbol (2) is red, switch off the engine immediately.
•
Check the oil level;
•
Add oil if necessary. If the error message persists, refer to
Manitowoc Crane Care.
If other symbols are displayed in red in this menu;
p. 11 - 110.
•
Also check the following lamps on the side panel.
– If the lamp (2) does not go out or lights up while the engine is running,
switch the engine off and look for the cause.
– If the lamp (1) does not go out or lights up while the engine is running,
there is a malfunction in the flame start system.
à
Malfunctions on the engine , p. 7 - 27
More information can be found in the Monitoring submenu;
à
Maintenance Manual .
3 112 xxx en
à
Warning submenu ,
à
p. 10 - 15.
Operating Manual GMK6300L
