Removing the
lifting gear
Operating Manual GMK6300L
•

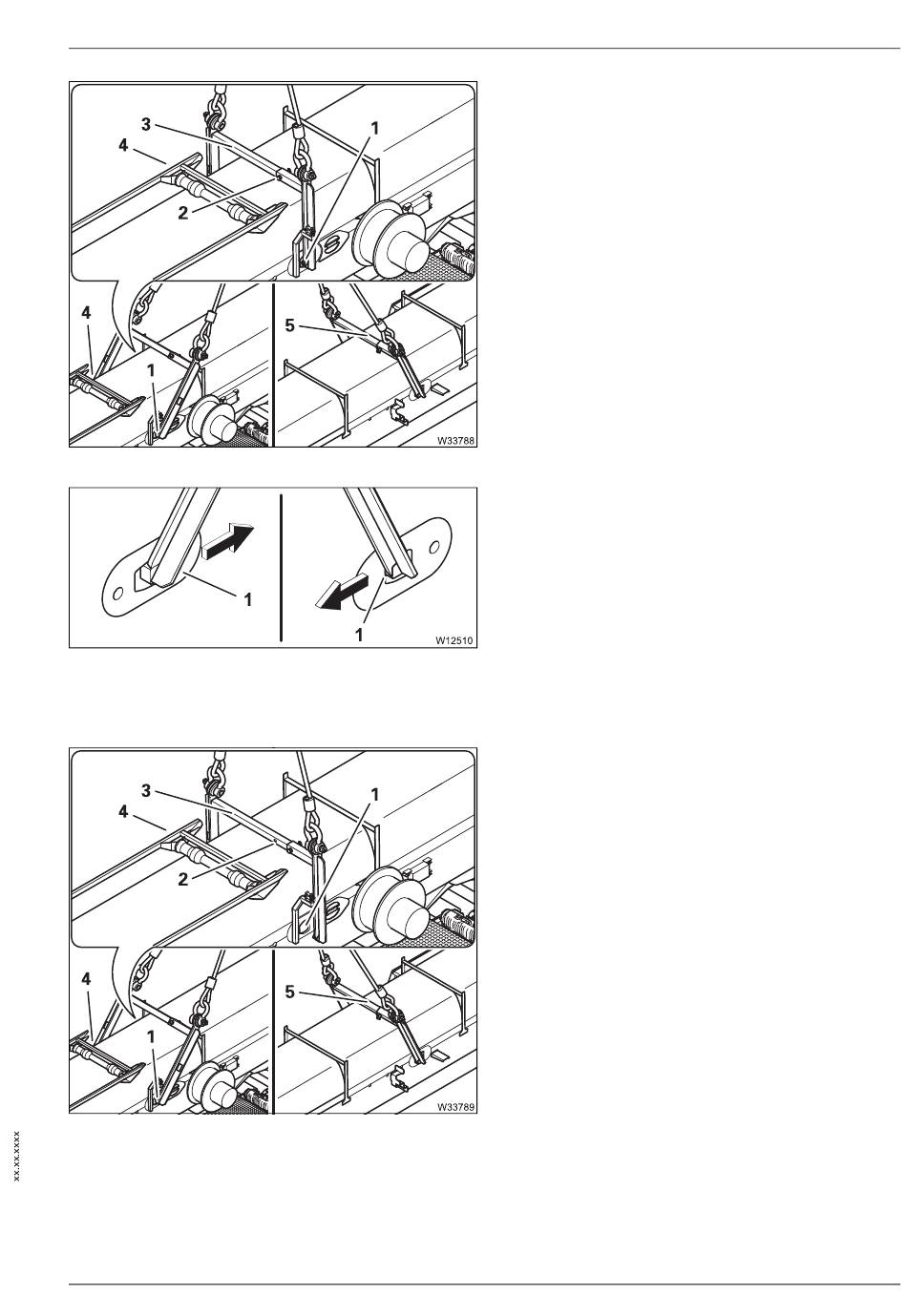

Insert the bracket (3) into the slinging
point (1). Pull the pin (2).
•
Insert the bracket into the lifting gear (4).
•
Secure the bracket with the pin (2) and the
retaining pin.
•
Pull the bracket to the centre – the bracket
must rest on the slinging point on both
sides.
•
Install the bracket (5) in the same manner.
•
Before lifting, make sure the brackets on
both sides are resting on the slinging
point (1).
•
Remove the pin (2) and pull the bracket (3)
out of the slinging point (4).
•
Secure the bracket with the pin (2) and the
retaining pin.
•
Pull the bracket out of the slinging point (1).
•
Install the bracket (5) in the same manner.
•
Remove the brackets.
3 112 xxx en
Driving modes
6.4 Main boom, removing/installing
