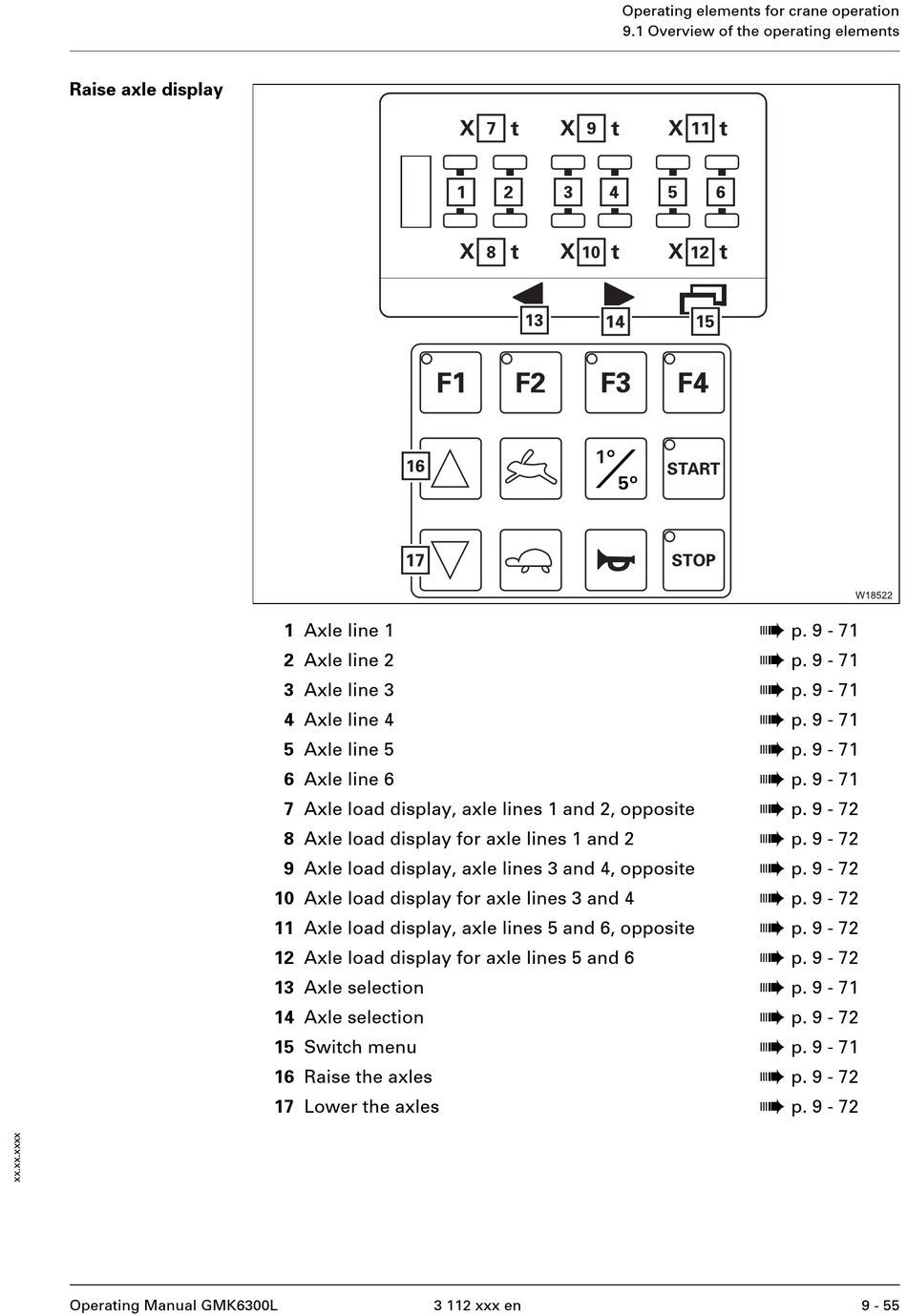

Manitowoc Grove GMK6300L Operating Manual page 519

Raise axle display
Operating Manual GMK6300L
1 Axle line 1
2 Axle line 2
3 Axle line 3
4 Axle line 4
5 Axle line 5
6 Axle line 6
7 Axle load display, axle lines 1 and 2, opposite
8 Axle load display for axle lines 1 and 2
9 Axle load display, axle lines 3 and 4, opposite
10 Axle load display for axle lines 3 and 4
11 Axle load display, axle lines 5 and 6, opposite
12 Axle load display for axle lines 5 and 6
13 Axle selection
14 Axle selection
15 Switch menu
16 Raise the axles
17 Lower the axles
3 112 xxx en
Operating elements for crane operation
9.1 Overview of the operating elements
à
p. 9 - 71
à
p. 9 - 71
à
p. 9 - 71
à
p. 9 - 71
à
p. 9 - 71
à
p. 9 - 71
à
p. 9 - 72
à
p. 9 - 72
à
p. 9 - 72
à
p. 9 - 72
à
p. 9 - 72
à
p. 9 - 72
à
p. 9 - 71
à
p. 9 - 72
à
p. 9 - 71
à
p. 9 - 72
à
p. 9 - 72
9 - 55
