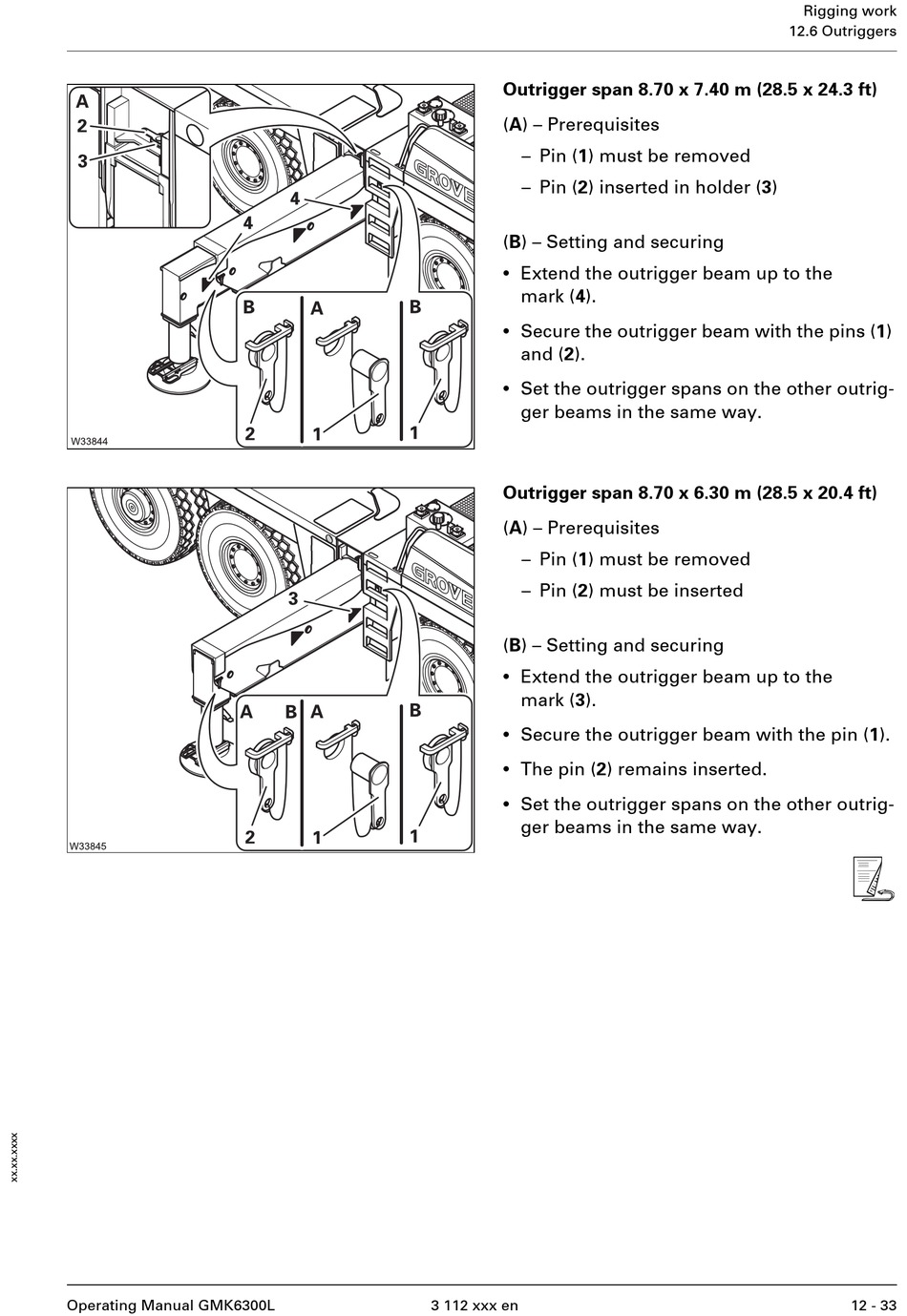

Outrigger span 8.70 x 7.40 m (28.5 x 24.3 ft)
(A) – Prerequisites
– Pin (1) must be removed
– Pin (2) inserted in holder (3)
(B) – Setting and securing
•
Extend the outrigger beam up to the
mark (4).
•
Secure the outrigger beam with the pins (1)
and (2).
•
Set the outrigger spans on the other outrig-
ger beams in the same way.
Outrigger span 8.70 x 6.30 m (28.5 x 20.4 ft)
(A) – Prerequisites
– Pin (1) must be removed
– Pin (2) must be inserted
(B) – Setting and securing
•
Extend the outrigger beam up to the
mark (3).
•
Secure the outrigger beam with the pin (1).
•
The pin (2) remains inserted.
•
Set the outrigger spans on the other outrig-
ger beams in the same way.
