Entering Limit Values/Objects Manually - Manitowoc Grove GMK6300L Operating Manual

Crane operation
11.5 Working range limiter
11.5.4
Limit values
11 - 124

Entering limit values/objects manually

The limit values for the overall height, the working radius, and the slewing
angle are entered in the same way.

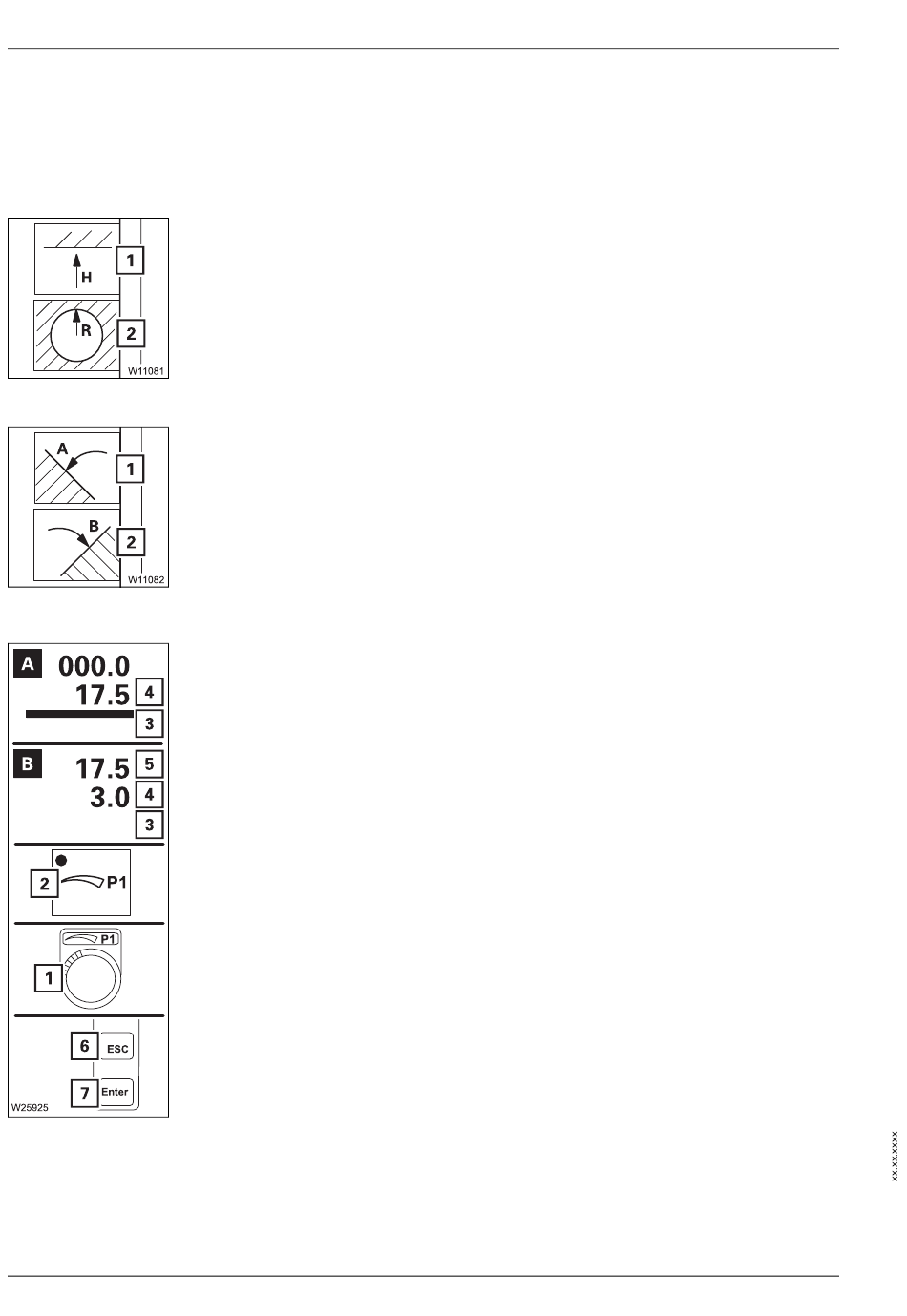

– For overall height/working radius
•
Press the button once:
1 For the overall height
2 For the working radius.
– For slewing angles
•
Open the Enter slewing angle submenu.
•
Press the button once:
1 For slewing angle A
2 For slewing angle B.
Entering a limit value
The bar (3) is red – input on.
To cancel the input – press button (6) once.
•
Press button (2) once – the dot will turn green, manual input on.
•
(A) – Enter the new limit value, e.g. 17.5, with the switch (1) on display (4).
•
(B) – Press the button (7) once.
– Display (5) = new limit value,
– Display (4) = current value, e.g. 3.0,
– Bar (3) goes out,
– Dot (2) is black, manual input off.
3 112 xxx en Operating Manual GMK6300L
