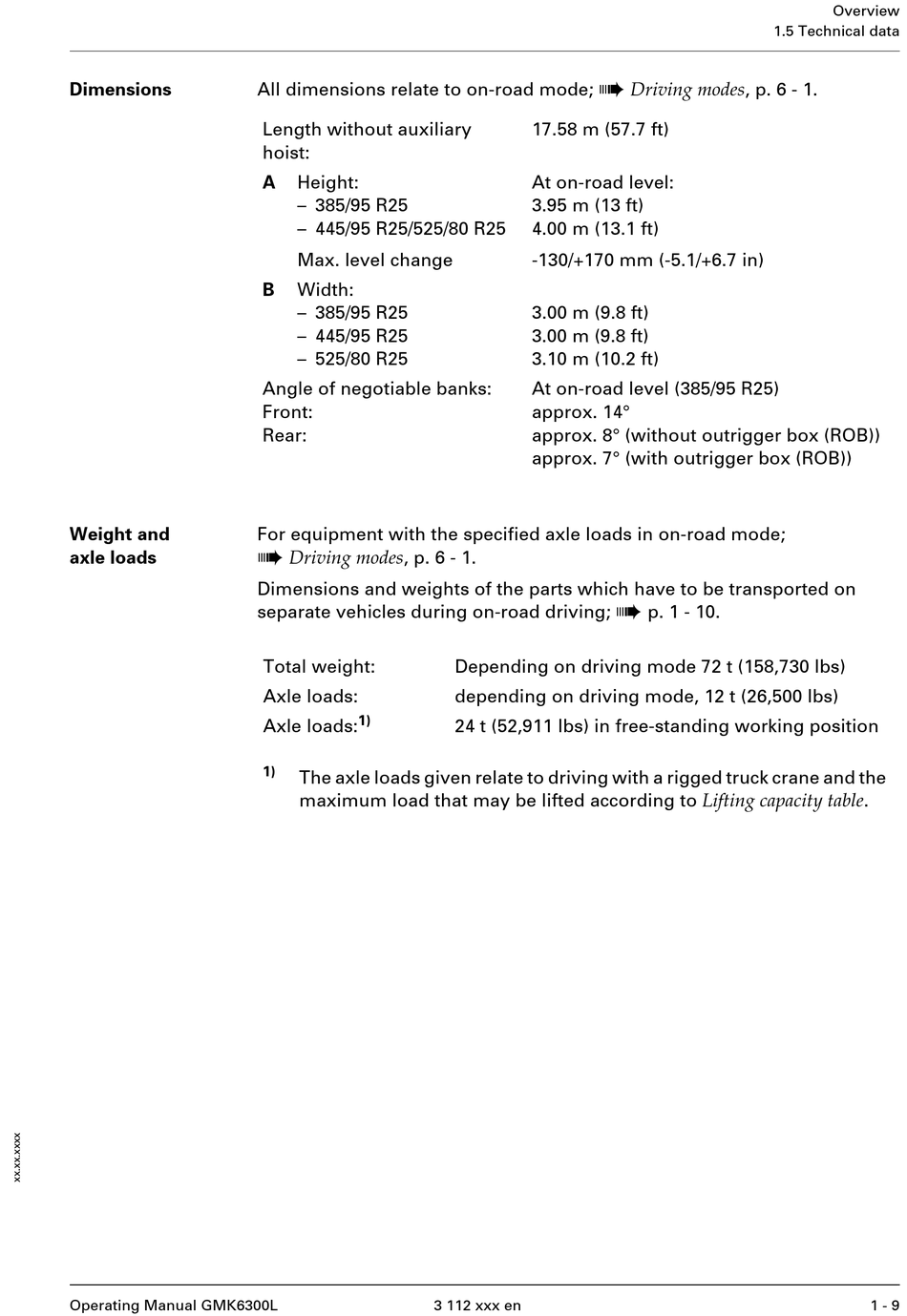

Manitowoc Grove GMK6300L Operating Manual page 29

Dimensions
Weight and
axle loads
Operating Manual GMK6300L
All dimensions relate to on-road mode;
Length without auxiliary
hoist:
A Height:
– 385/95 R25
– 445/95 R25/525/80 R25
Max. level change
B Width:
– 385/95 R25
– 445/95 R25
– 525/80 R25
Angle of negotiable banks:
Front:
Rear:
For equipment with the specified axle loads in on-road mode;
à
Driving modes , p. 6 - 1.
Dimensions and weights of the parts which have to be transported on
separate vehicles during on-road driving;
Total weight:
Axle loads:
1)
Axle loads:
1)
The axle loads given relate to driving with a rigged truck crane and the
maximum load that may be lifted according to Lifting capacity table .
à
17.58 m (57.7 ft)
At on-road level:
3.95 m (13 ft)
4.00 m (13.1 ft)
-130/+170 mm (-5.1/+6.7 in)
3.00 m (9.8 ft)
3.00 m (9.8 ft)
3.10 m (10.2 ft)
At on-road level (385/95 R25)
approx. 14°
approx. 8° (without outrigger box (ROB))
approx. 7° (with outrigger box (ROB))
Depending on driving mode 72 t (158,730 lbs)
depending on driving mode, 12 t (26,500 lbs)
24 t (52,911 lbs) in free-standing working position
3 112 xxx en
1.5 Technical data
Driving modes , p. 6 - 1.
à
p. 1 - 10.
Overview
1 - 9
