7.5
Information on
replacing fuses
S
S
S
Operating Manual GMK6300L

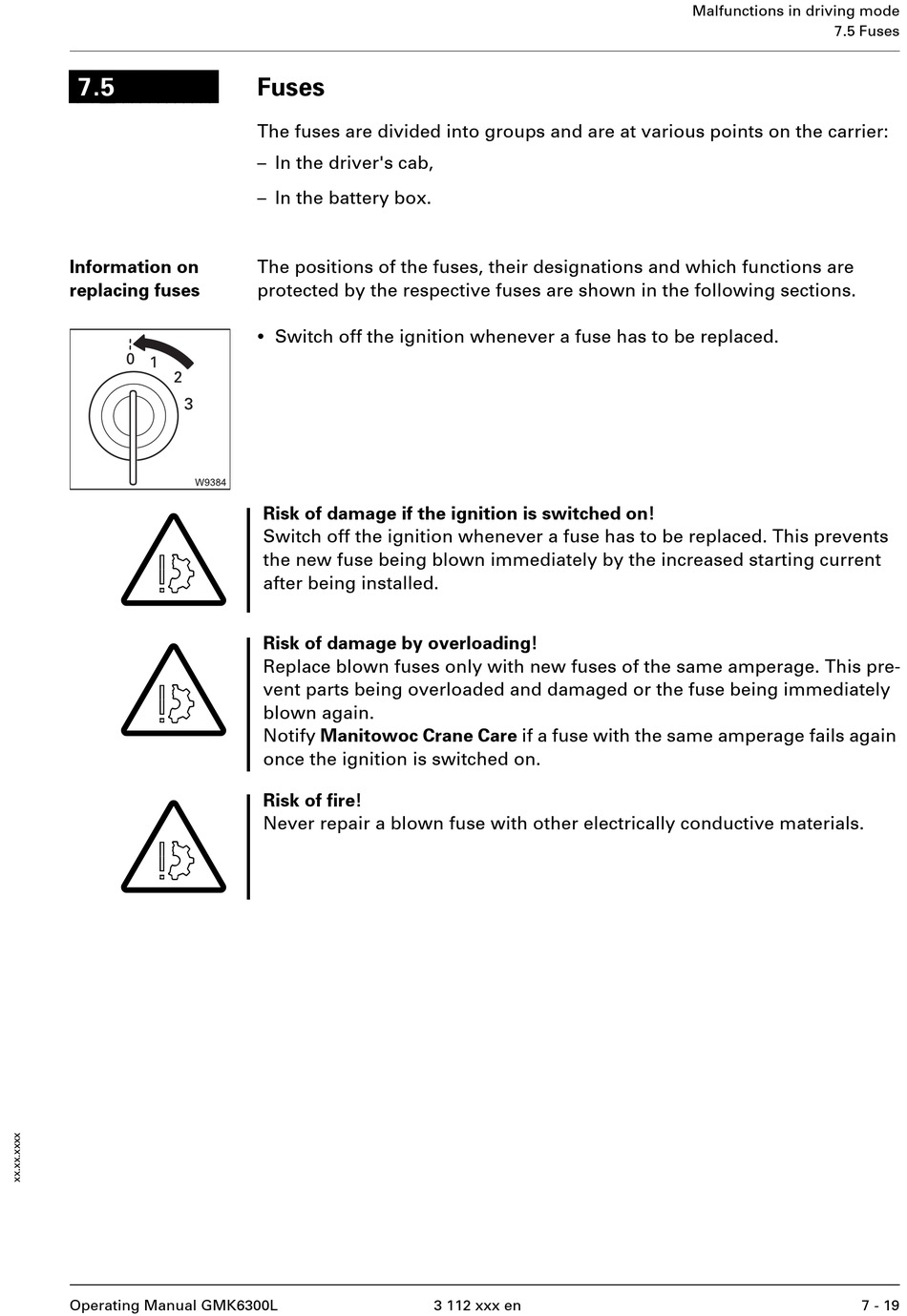

Fuses

The fuses are divided into groups and are at various points on the carrier:
– In the driver's cab,
– In the battery box.
The positions of the fuses, their designations and which functions are
protected by the respective fuses are shown in the following sections.
•
Switch off the ignition whenever a fuse has to be replaced.
Risk of damage if the ignition is switched on!
Switch off the ignition whenever a fuse has to be replaced. This prevents
the new fuse being blown immediately by the increased starting current
after being installed.
Risk of damage by overloading!
Replace blown fuses only with new fuses of the same amperage. This pre-
vent parts being overloaded and damaged or the fuse being immediately
blown again.
Notify Manitowoc Crane Care if a fuse with the same amperage fails again
once the ignition is switched on.
Risk of fire!
Never repair a blown fuse with other electrically conductive materials.
3 112 xxx en
Malfunctions in driving mode
7.5 Fuses
7 - 19
