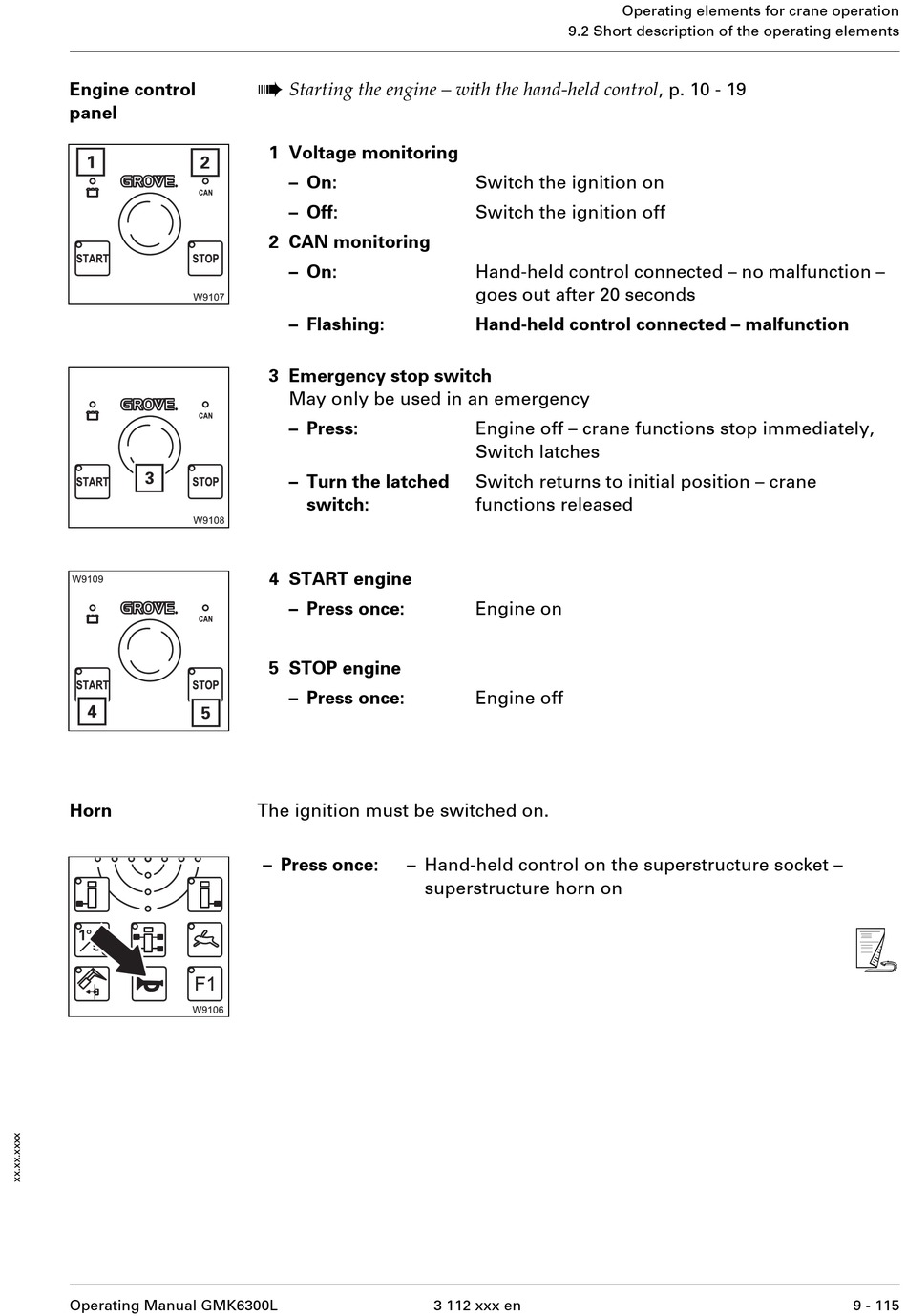

Engine control
panel
Horn
Operating Manual GMK6300L
à
Starting the engine – with the hand-held control , p. 10 - 19
1 Voltage monitoring
– On:
– Off:
2 CAN monitoring
– On:
– Flashing:
3 Emergency stop switch
May only be used in an emergency
– Press:
– Turn the latched
switch:
4 START engine
– Press once:
5 STOP engine
– Press once:
The ignition must be switched on.
– Press once: – Hand-held control on the superstructure socket –
superstructure horn on
9.2 Short description of the operating elements
Switch the ignition on
Switch the ignition off
Hand-held control connected – no malfunction –
goes out after 20 seconds
Hand-held control connected – malfunction
Engine off – crane functions stop immediately,
Switch latches
Switch returns to initial position – crane
functions released
Engine on
Engine off
