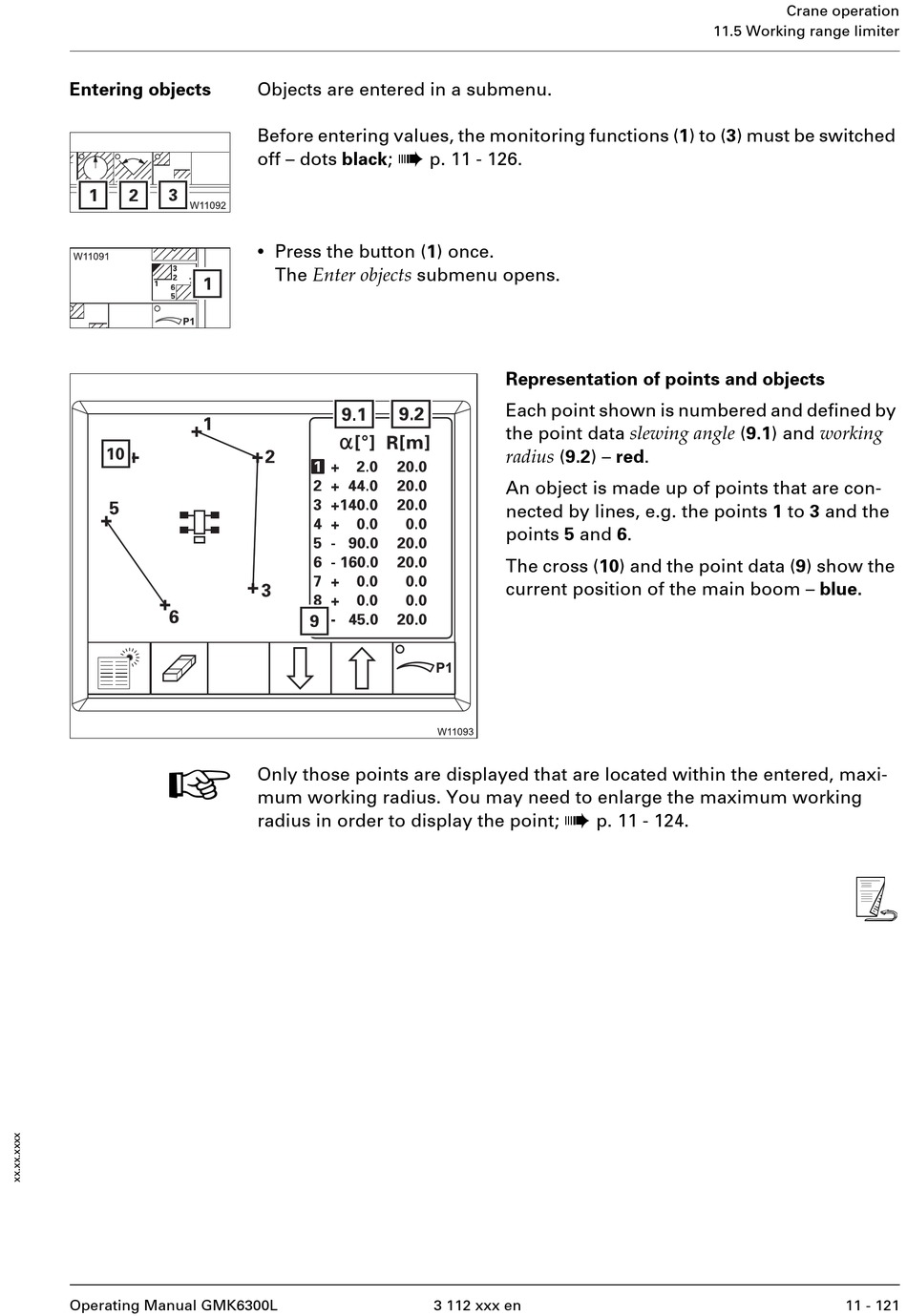

Entering objects
H
Operating Manual GMK6300L
Objects are entered in a submenu.
Before entering values, the monitoring functions (1) to (3) must be switched
à
off – dots black;
•
Press the button (1) once.
The Enter objects submenu opens.
Only those points are displayed that are located within the entered, maxi-
mum working radius. You may need to enlarge the maximum working
radius in order to display the point;
p. 11 - 126.
Representation of points and objects
Each point shown is numbered and defined by
the point data slewing angle (9.1) and working
radius (9.2) – red.
An object is made up of points that are con-
nected by lines, e.g. the points 1 to 3 and the
points 5 and 6.
The cross (10) and the point data (9) show the
current position of the main boom – blue.
à
p. 11 - 124.
3 112 xxx en
Crane operation
11.5 Working range limiter
