9.2.3
Side panel
Operating Manual GMK6300L

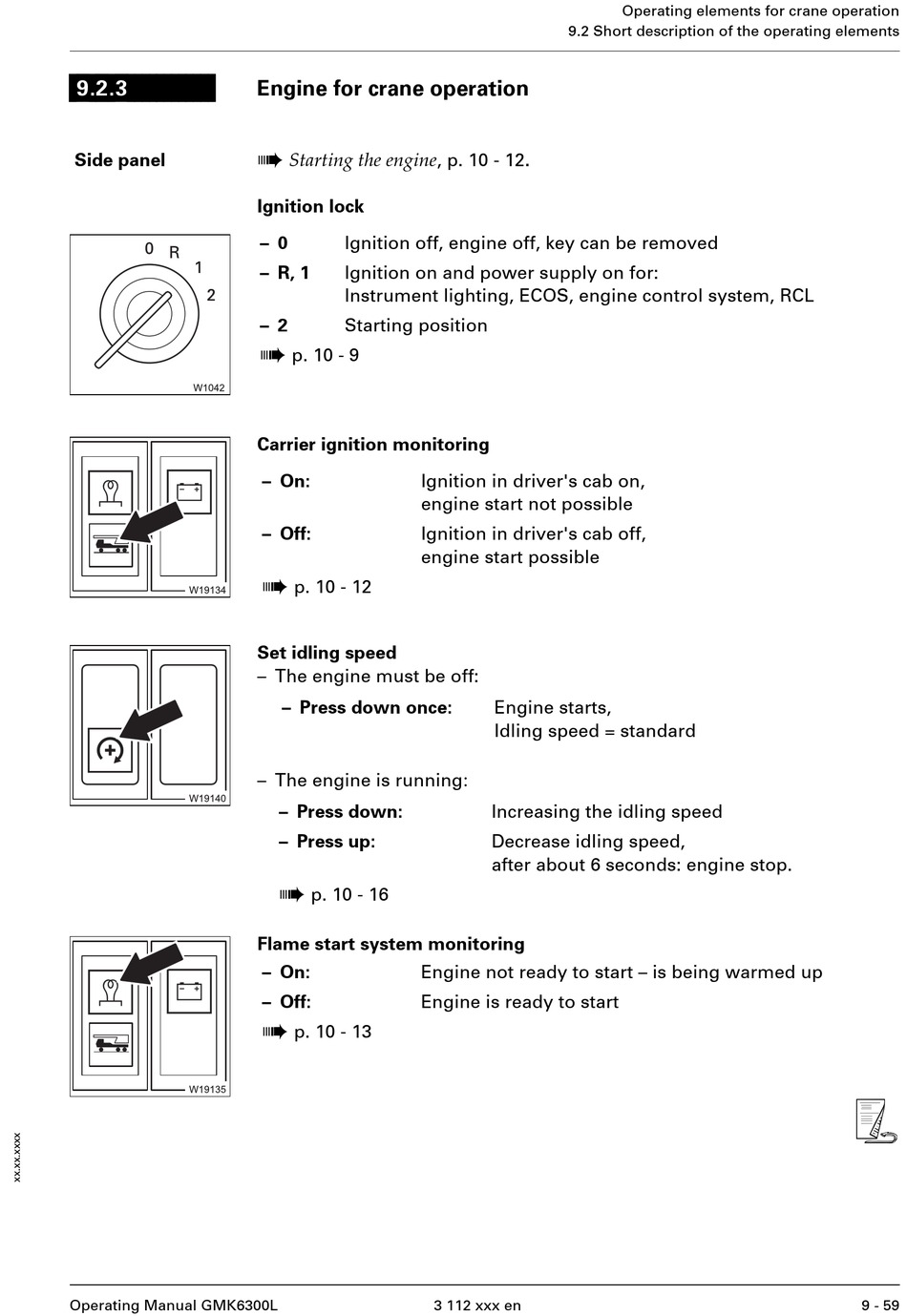

Engine for crane operation

à
Starting the engine , p. 10 - 12.
Ignition lock
– 0
Ignition off, engine off, key can be removed
– R, 1
Ignition on and power supply on for:
Instrument lighting, ECOS, engine control system, RCL
– 2
Starting position
à
p. 10 - 9
Carrier ignition monitoring
– On:
Ignition in driver's cab on,
engine start not possible
– Off:
Ignition in driver's cab off,
engine start possible
à
p. 10 - 12
Set idling speed
– The engine must be off:
– Press down once:
– The engine is running
– Press down:
– Press up:
à
p. 10 - 16
Flame start system monitoring
– On:
Engine not ready to start – is being warmed up
– Off:
Engine is ready to start
à
p. 10 - 13
9.2 Short description of the operating elements
Engine starts,
Idling speed = standard
:
Increasing the idling speed
Decrease idling speed,
after about 6 seconds: engine stop.
3 112 xxx en
Operating elements for crane operation
s
9 - 59
