Driving modes

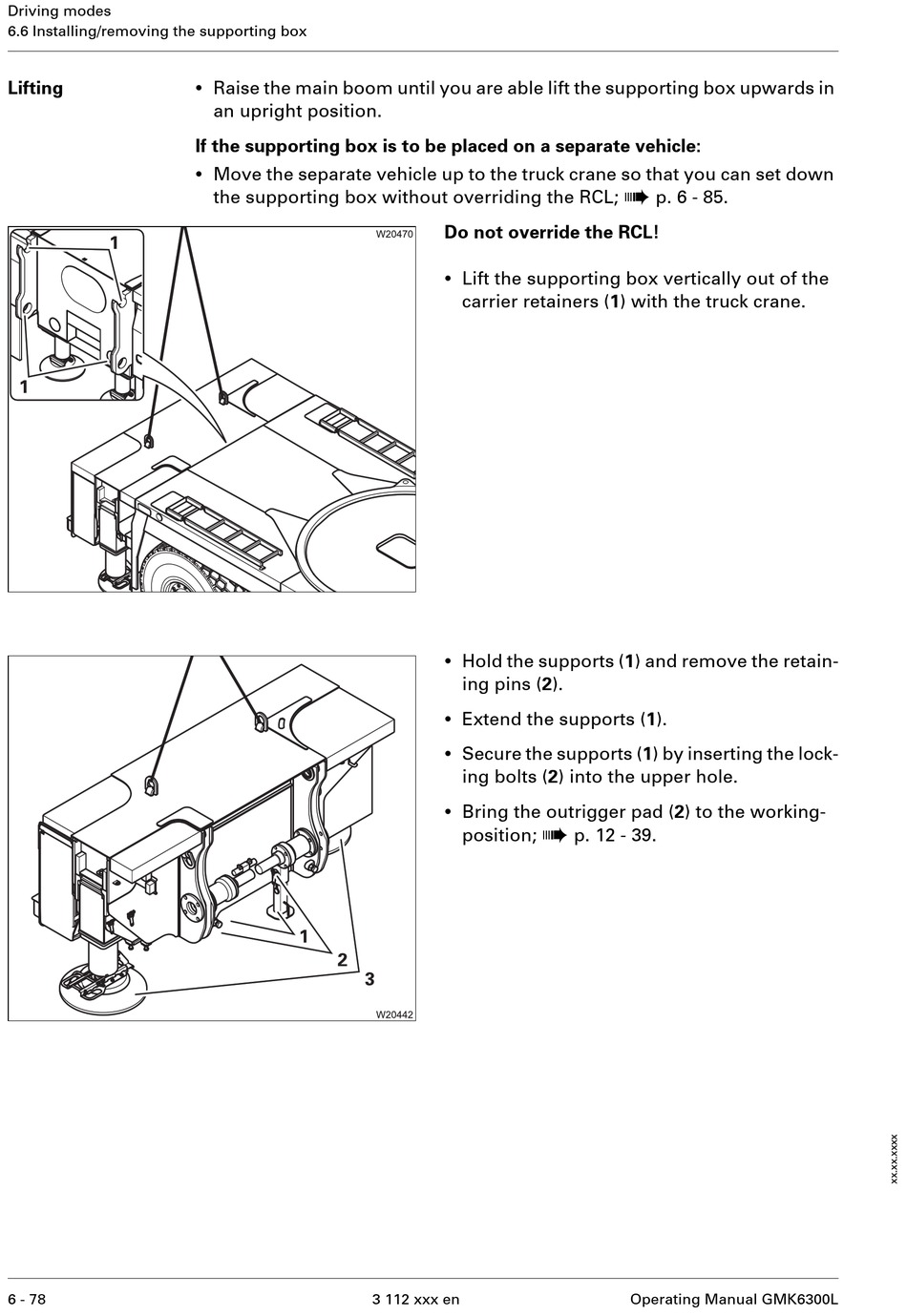

6.6 Installing/removing the supporting box
Lifting
6 - 78
•
Raise the main boom until you are able lift the supporting box upwards in
an upright position.
If the supporting box is to be placed on a separate vehicle:
•
Move the separate vehicle up to the truck crane so that you can set down
the supporting box without overriding the RCL;
Do not override the RCL!
•
Lift the supporting box vertically out of the
carrier retainers (1) with the truck crane.
•
Hold the supports (1) and remove the retain-
ing pins (2).
•
Extend the supports (1).
•
Secure the supports (1) by inserting the lock-
ing bolts (2) into the upper hole.
•
Bring the outrigger pad (2) to the working-
à
position;
3 112 xxx en
à
p. 6 - 85.
p. 12 - 39.
