Driving
5.1 Before driving
Adjusting
the mirrors
5 - 8

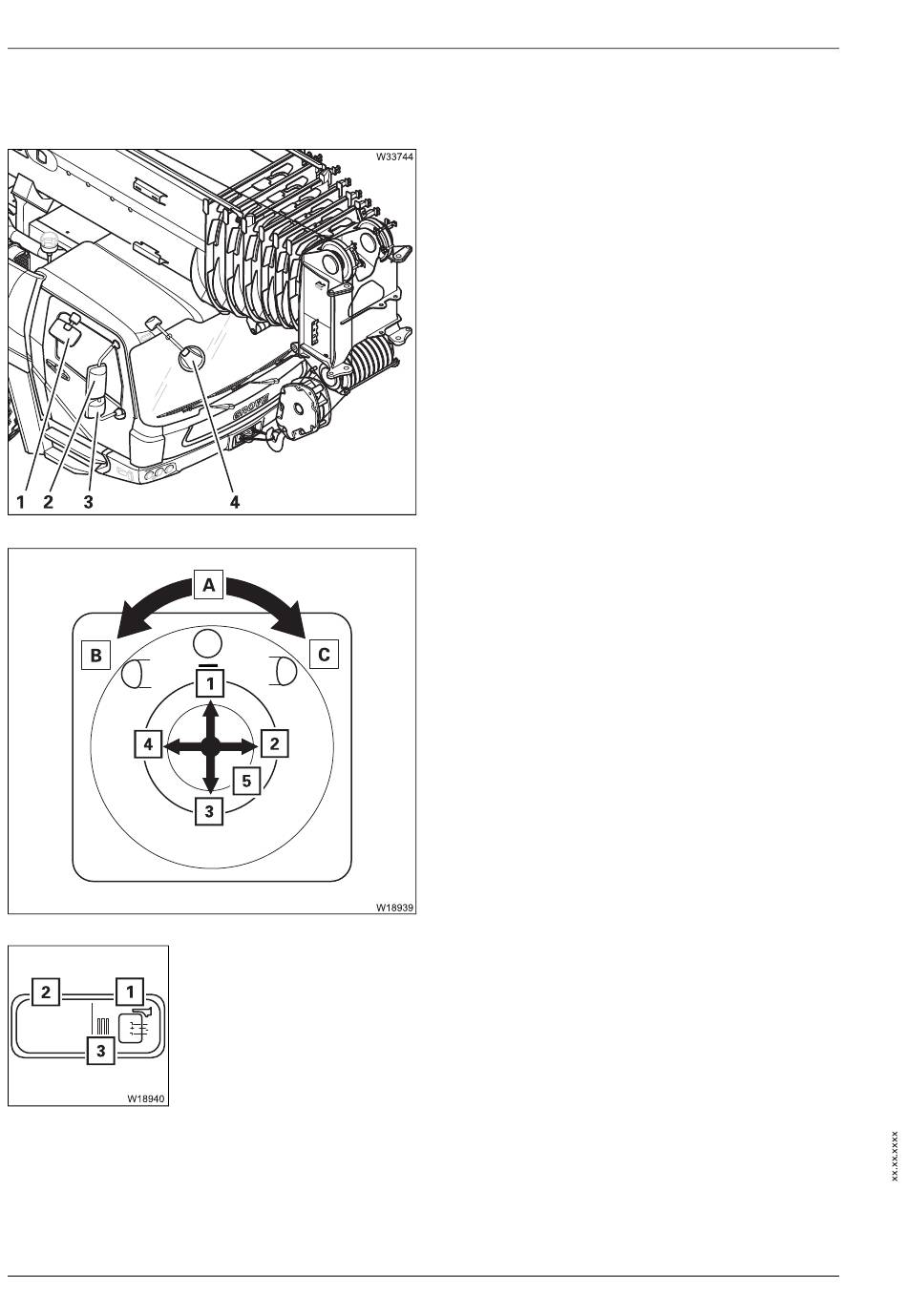

Adjust all the mirrors to suit your sitting position.
Mirror heating
1 To switch on:
2 To switch off:
Manual adjustment
•
Manually adjust the mirrors (1), (3) and (4).
The mirrors (2) are adjusted electrically on
both sides.
Electrical adjustment
•
Turn the button to position
A Neutral position
B Mirror on the driver's side or
C Mirror on the passenger side.
•
Press the button (5) – the mirror moves.
1 Up
2 right
3 Down
4 left
Press button once – lamp (3) turns on
Press button once – lamp (3) turns off
