6.4
G
Additional equip-
ment required
Operating Manual GMK6300L

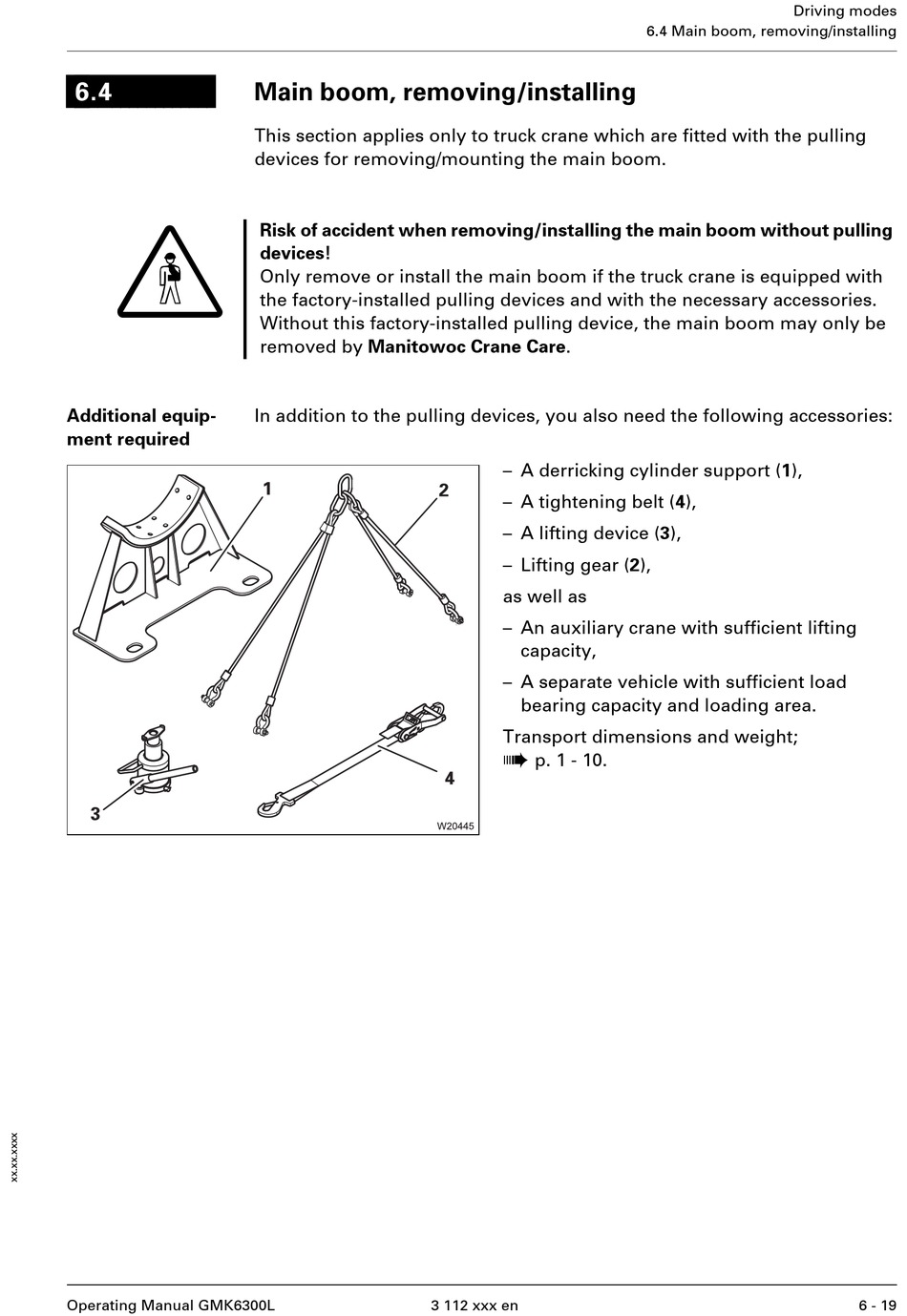

Main boom, removing/installing

This section applies only to truck crane which are fitted with the pulling
devices for removing/mounting the main boom.
Risk of accident when removing/installing the main boom without pulling
devices!
Only remove or install the main boom if the truck crane is equipped with
the factory-installed pulling devices and with the necessary accessories.
Without this factory-installed pulling device, the main boom may only be
removed by Manitowoc Crane Care.
In addition to the pulling devices, you also need the following accessories:
– A derricking cylinder support (1),
– A tightening belt (4),
– A lifting device (3),
– Lifting gear (2),
as well as
– An auxiliary crane with sufficient lifting
capacity,
– A separate vehicle with sufficient load
bearing capacity and loading area.
Transport dimensions and weight;
à
p. 1 - 10.
3 112 xxx en
Driving modes
6.4 Main boom, removing/installing
6 - 19
