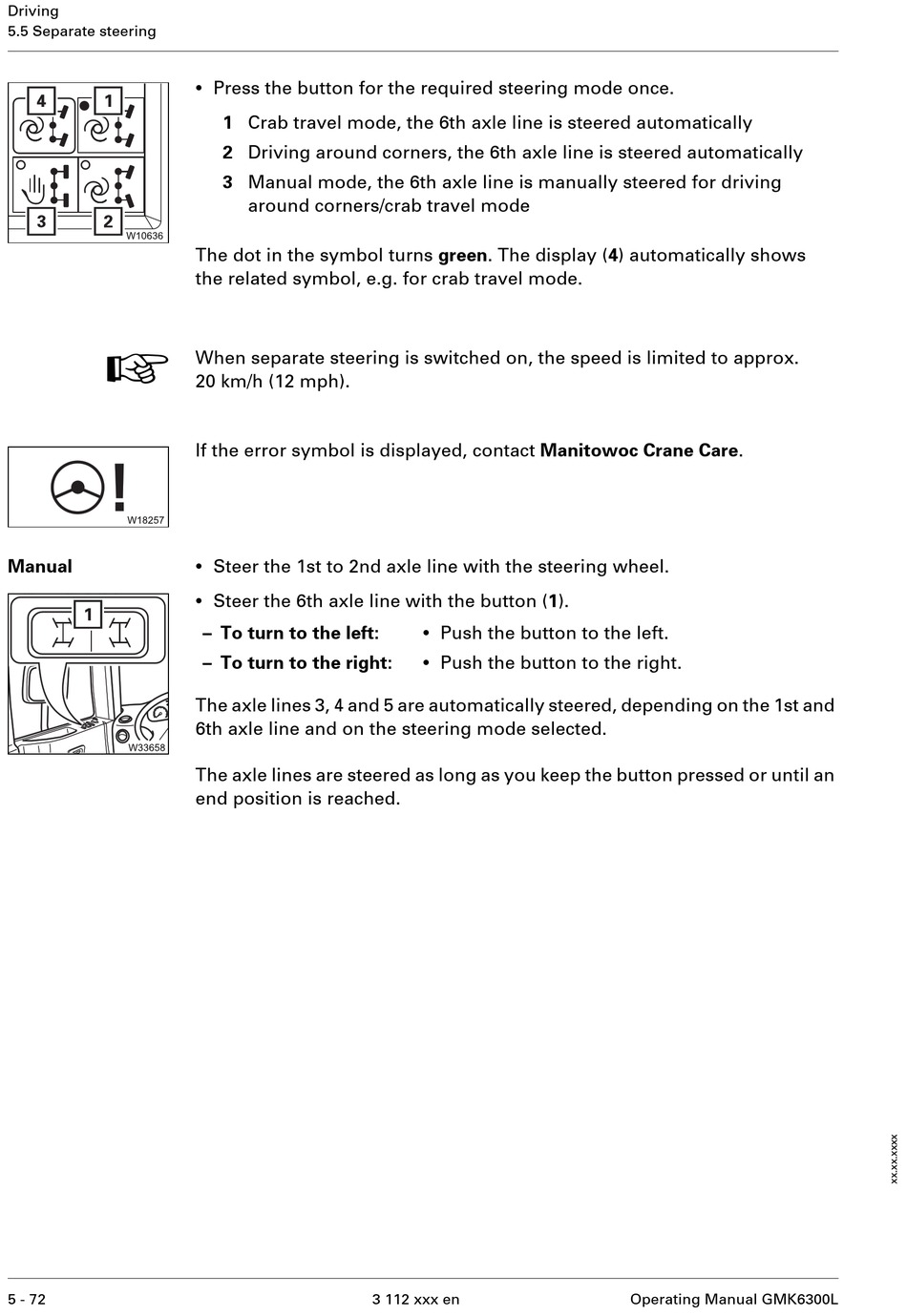

Manitowoc Grove GMK6300L Operating Manual page 250

Driving
5.5 Separate steering
H
Manual
5 - 72
•
Press the button for the required steering mode once.
1 Crab travel mode, the 6th axle line is steered automatically
2 Driving around corners, the 6th axle line is steered automatically
3 Manual mode, the 6th axle line is manually steered for driving
around corners/crab travel mode
The dot in the symbol turns green. The display (4) automatically shows
the related symbol, e.g. for crab travel mode.
When separate steering is switched on, the speed is limited to approx.
20 km/h (12 mph).
If the error symbol is displayed, contact Manitowoc Crane Care.
•
Steer the 1st to 2nd axle line with the steering wheel.
•
Steer the 6th axle line with the button (1).
– To turn to the left:
– To turn to the right:
The axle lines 3, 4 and 5 are automatically steered, depending on the 1st and
6th axle line and on the steering mode selected.
The axle lines are steered as long as you keep the button pressed or until an
end position is reached.
•
Push the button to the left.
•
Push the button to the right.
