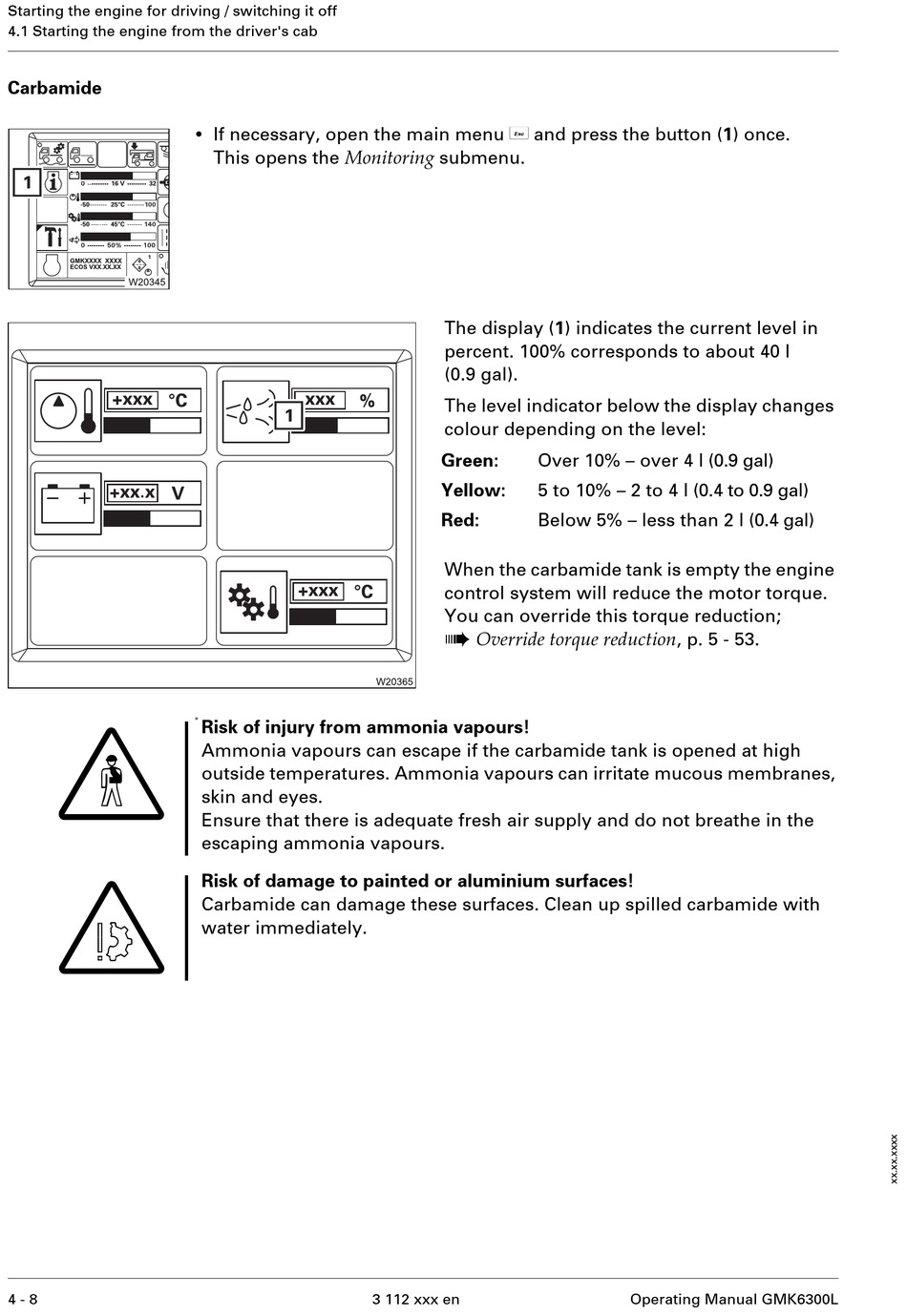

Manitowoc Grove GMK6300L Operating Manual page 158

Starting the engine for driving / switching it off
4.1 Starting the engine from the driver's cab
Carbamide
G
S
4 - 8
•
If necessary, open the main menu
This opens the Monitoring submenu.
H
Risk of injury from ammonia vapours!
Ammonia vapours can escape if the carbamide tank is opened at high
outside temperatures. Ammonia vapours can irritate mucous membranes,
skin and eyes.
Ensure that there is adequate fresh air supply and do not breathe in the
escaping ammonia vapours.
Risk of damage to painted or aluminium surfaces!
Carbamide can damage these surfaces. Clean up spilled carbamide with
water immediately.
ö
and press the button (1) once.
The display (1) indicates the current level in
percent. 100% corresponds to about 40 l
(0.9 gal).
The level indicator below the display changes
colour depending on the level:
Green: Over 10% – over 4 l (0.9 gal)
Yellow: 5 to 10% – 2 to 4 l (0.4 to 0.9 gal)
Red: Below 5% – less than 2 l (0.4 gal)
When the carbamide tank is empty the engine
control system will reduce the motor torque.
You can override this torque reduction;
à
Override torque reduction , p. 5 - 53.
3 112 xxx en Operating Manual GMK6300L
