Malfunctions during crane operation
14.3 Fuses
14.3.4
14 - 12

RCL fuses

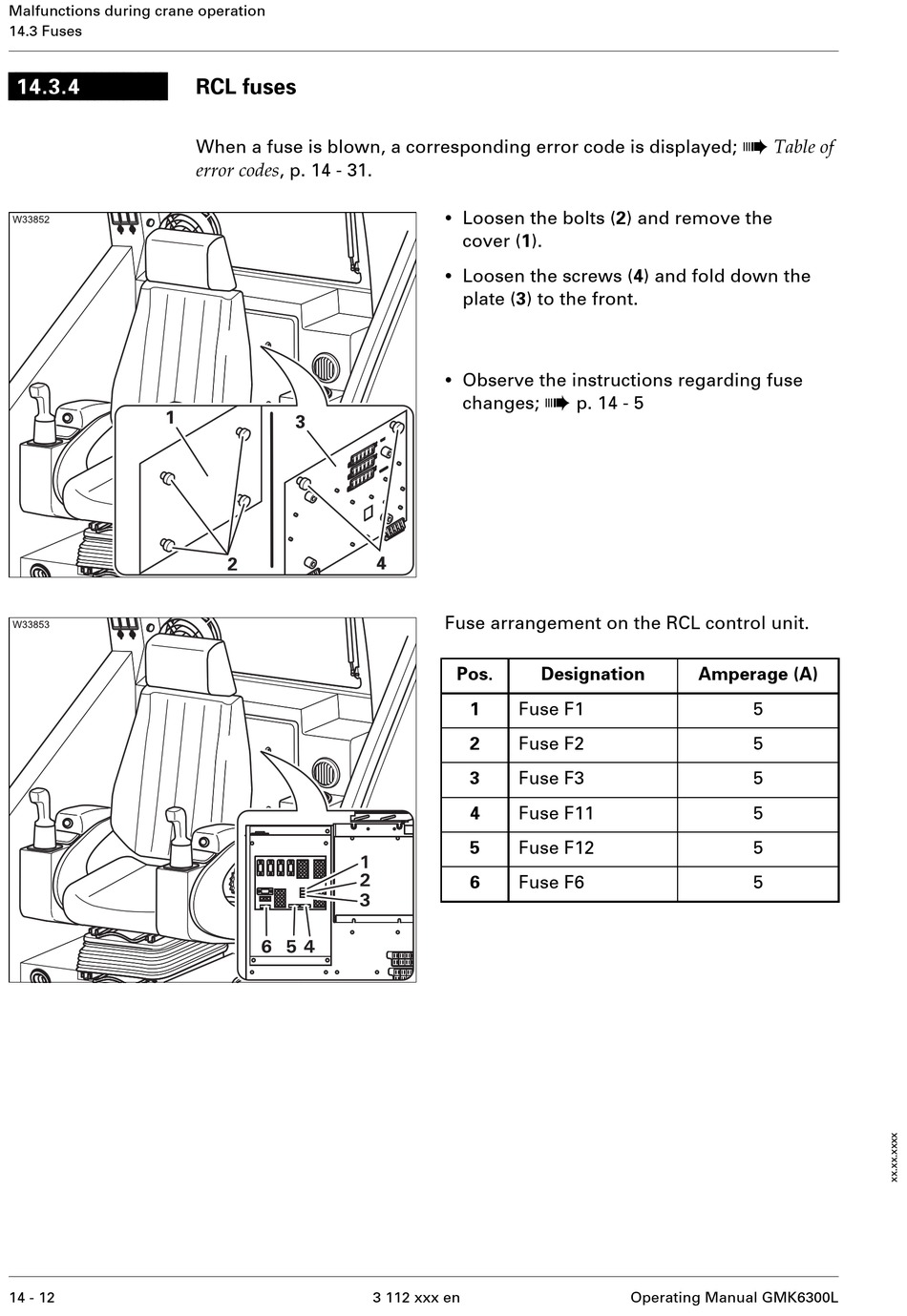

When a fuse is blown, a corresponding error code is displayed;
error codes , p. 14 - 31.
•
Loosen the bolts (2) and remove the
cover (1).
•
Loosen the screws (4) and fold down the
plate (3) to the front.
•
Observe the instructions regarding fuse
changes;
Fuse arrangement on the RCL control unit.
Pos. Designation
1 Fuse F1
2 Fuse F2
3 Fuse F3
4 Fuse F11
5 Fuse F12
6 Fuse F6
3 112 xxx en
à
p. 14 - 5
Amperage (A)
Operating Manual GMK6300L
à
Table of
5
5
5
5
5
5
