Operating elements for driving
3.2 Short description of the operating elements
3 - 50

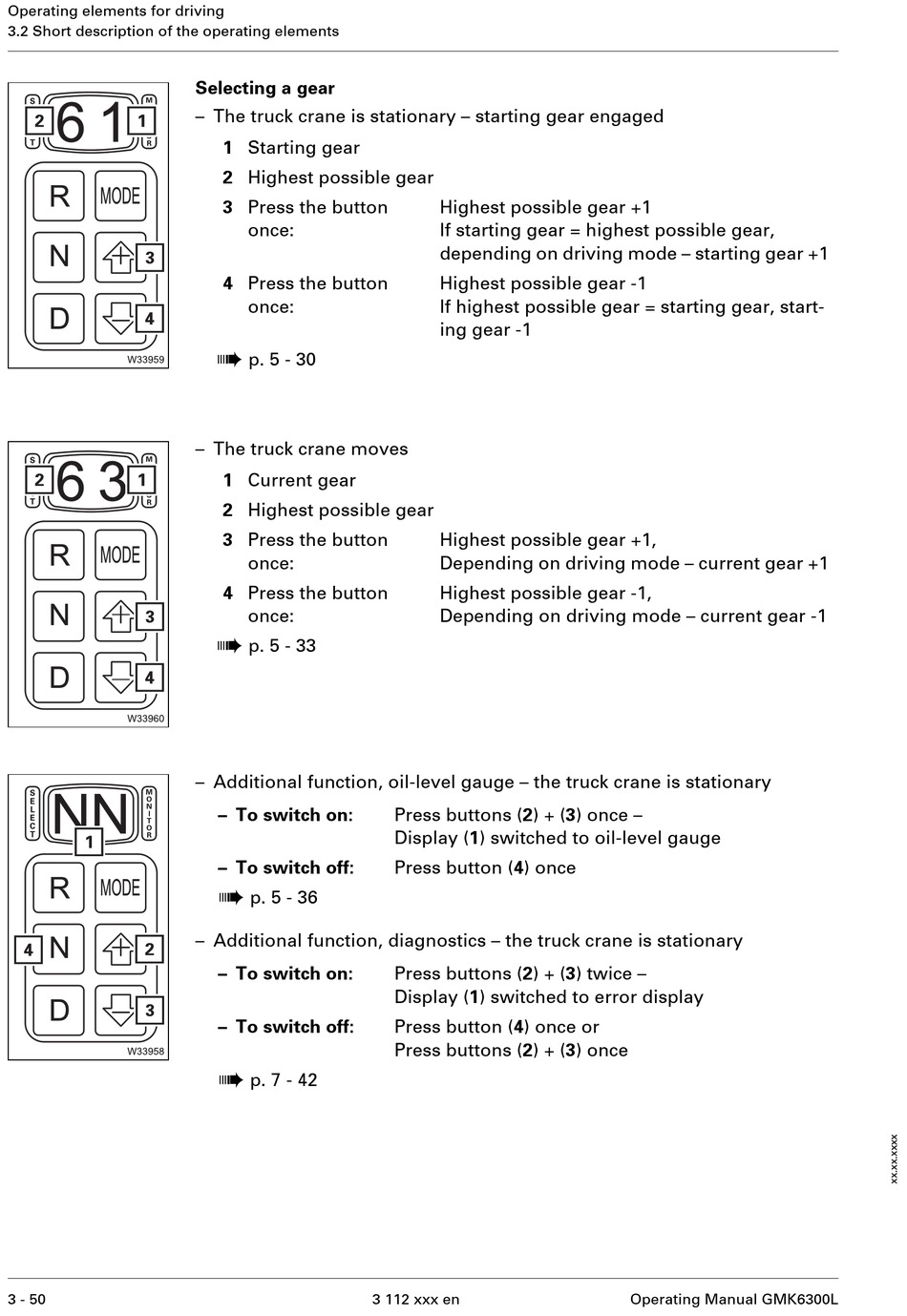

Selecting a gear
– The truck crane is stationary – starting gear engaged
1 Starting gear
2 Highest possible gear
3 Press the button
once:
4 Press the button
once:
à
p. 5 - 30
– The truck crane moves
1 Current gear
2 Highest possible gear
3 Press the button
once:
4 Press the button
once:
à
p. 5 - 33
– Additional function, oil-level gauge – the truck crane is stationary
– To switch on:
– To switch off:
à
p. 5 - 36
– Additional function, diagnostics – the truck crane is stationary
– To switch on:
– To switch off:
à
p. 7 - 42
Highest possible gear +1
If starting gear = highest possible gear,
depending on driving mode – starting gear +1
Highest possible gear -1
If highest possible gear = starting gear, start-
ing gear -1
Highest possible gear +1,
Depending on driving mode – current gear +1
Highest possible gear -1,
Depending on driving mode – current gear -1
Press buttons (2) + (3) once –
Display (1) switched to oil-level gauge
Press button (4) once
Press buttons (2) + (3) twice –
Display (1) switched to error display
Press button (4) once or
Press buttons (2) + (3) once
